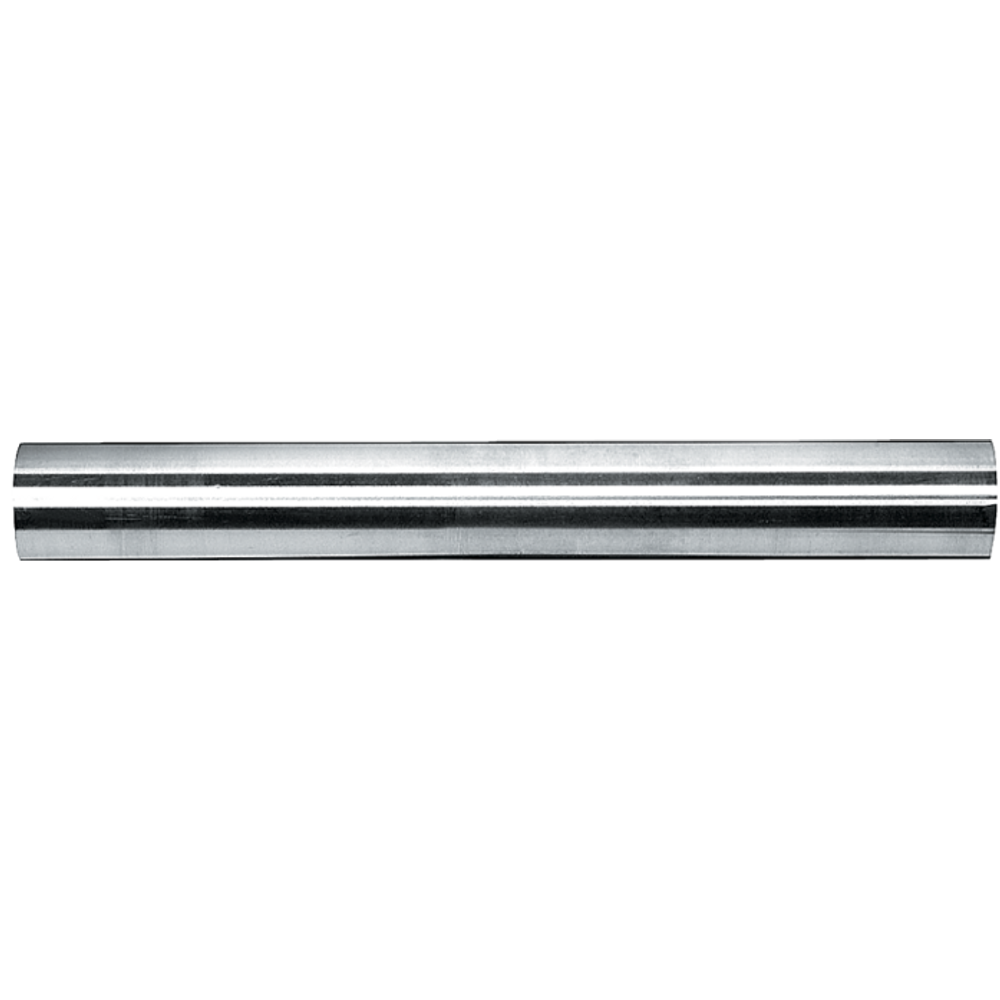

DIN 4964-A, tolerantie op schachtafm. h8, HRC 67±2
Maten en specificaties
| Artikelnummer | d1 | l1 |
|---|---|---|
| 711600310 | 3 mm | 100 mm |
| 711600410 | 4 mm | 100 mm |
| 711600415 | 4 mm | 150 mm |
| 711600420 | 4 mm | 200 mm |
| 711600510 | 5 mm | 100 mm |
| 711600515 | 5 mm | 150 mm |
| 711600520 | 5 mm | 200 mm |
| 711600610 | 6 mm | 100 mm |
| 711600615 | 6 mm | 150 mm |
| 711600620 | 6 mm | 200 mm |
| 711600810 | 8 mm | 100 mm |
| 711600815 | 8 mm | 150 mm |
| 711600820 | 8 mm | 200 mm |
| 711601010 | 10 mm | 100 mm |
| 711601015 | 10 mm | 150 mm |
| 711601020 | 10 mm | 200 mm |
| 711601210 | 12 mm | 100 mm |
| 711601215 | 12 mm | 150 mm |
| 711601220 | 12 mm | 200 mm |
| 711601420 | 14 mm | 200 mm |
| 711601615 | 16 mm | 150 mm |
| 711601620 | 16 mm | 200 mm |
| 711601815 | 18 mm | 150 mm |
| 711601820 | 18 mm | 200 mm |
| 711602020 | 20 mm | 200 mm |
| 711602520 | 25 mm | 200 mm |
