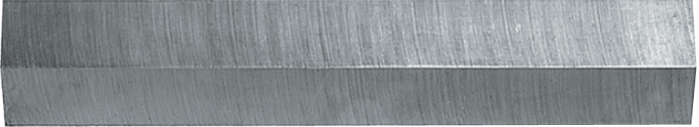

DIN 4964-B, tolerantie op schachtafm. h13, HRC 67±2
Maten en specificaties
| Artikelnummer | h1 | b1 | l1 |
|---|---|---|---|
| 711400410 | 4 mm | 4 mm | 100 mm |
| 711400415 | 4 mm | 4 mm | 150 mm |
| 711400420 | 4 mm | 4 mm | 200 mm |
| 711400510 | 5 mm | 5 mm | 100 mm |
| 711400515 | 5 mm | 5 mm | 150 mm |
| 711400520 | 5 mm | 5 mm | 200 mm |
| 711400610 | 6 mm | 6 mm | 100 mm |
| 711400615 | 6 mm | 6 mm | 150 mm |
| 711400620 | 6 mm | 6 mm | 200 mm |
| 711400810 | 8 mm | 8 mm | 100 mm |
| 711400815 | 8 mm | 8 mm | 150 mm |
| 711400820 | 8 mm | 8 mm | 200 mm |
| 711401010 | 10 mm | 10 mm | 100 mm |
| 711401015 | 10 mm | 10 mm | 150 mm |
| 711401020 | 10 mm | 10 mm | 200 mm |
| 711401210 | 12 mm | 12 mm | 100 mm |
| 711401215 | 12 mm | 12 mm | 150 mm |
| 711401220 | 12 mm | 12 mm | 200 mm |
| 711401415 | 14 mm | 14 mm | 150 mm |
| 711401420 | 14 mm | 14 mm | 200 mm |
| 711401610 | 16 mm | 16 mm | 100 mm |
| 711401615 | 16 mm | 16 mm | 150 mm |
| 711401620 | 16 mm | 16 mm | 200 mm |
| 711401815 | 18 mm | 18 mm | 150 mm |
| 711401820 | 18 mm | 18 mm | 200 mm |
| 711402010 | 20 mm | 20 mm | 100 mm |
| 711402015 | 20 mm | 20 mm | 150 mm |
| 711402020 | 20 mm | 20 mm | 200 mm |
| 711402515 | 25 mm | 25 mm | 150 mm |
| 711402520 | 25 mm | 25 mm | 200 mm |
| 711403020 | 30 mm | 30 mm | 200 mm |
| 711403220 | 32 mm | 32 mm | 200 mm |
