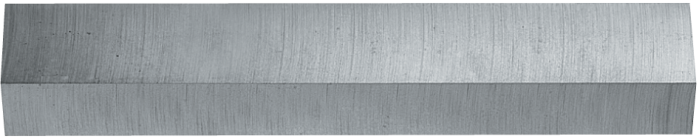

DIN 4964-D, tolerantie op schachtafm. h13, HRC 67±2
Maten en specificaties
| Artikelnummer | h1 | b1 | l1 |
|---|---|---|---|
| 711200625 | 6 mm | 4 mm | 160 mm |
| 711200825 | 8 mm | 4 mm | 160 mm |
| 711200845 | 8 mm | 6 mm | 160 mm |
| 711201023 | 10 mm | 4 mm | 160 mm |
| 711201033 | 10 mm | 5 mm | 160 mm |
| 711201041 | 10 mm | 6 mm | 100 mm |
| 711201043 | 10 mm | 6 mm | 160 mm |
| 711201055 | 10 mm | 8 mm | 160 mm |
| 711201213 | 12 mm | 3 mm | 160 mm |
| 711201223 | 12 mm | 4 mm | 160 mm |
| 711201233 | 12 mm | 5 mm | 160 mm |
| 711201243 | 12 mm | 6 mm | 160 mm |
| 711201251 | 12 mm | 8 mm | 100 mm |
| 711201253 | 12 mm | 8 mm | 160 mm |
| 711201263 | 12 mm | 10 mm | 160 mm |
| 711201441 | 14 mm | 6 mm | 100 mm |
| 711201465 | 14 mm | 10 mm | 160 mm |
| 711201625 | 16 mm | 4 mm | 160 mm |
| 711201643 | 16 mm | 6 mm | 160 mm |
| 711201653 | 16 mm | 8 mm | 160 mm |
| 711201663 | 16 mm | 10 mm | 160 mm |
| 711201825 | 18 mm | 4 mm | 160 mm |
| 711201845 | 18 mm | 6 mm | 160 mm |
| 711202057 | 20 mm | 8 mm | 200 mm |
| 711202067 | 20 mm | 10 mm | 200 mm |
| 711202073 | 20 mm | 12 mm | 160 mm |
| 711202085 | 20 mm | 16 mm | 160 mm |
| 711202545 | 25 mm | 6 mm | 160 mm |
| 711202575 | 25 mm | 12 mm | 160 mm |
| 711202585 | 25 mm | 16 mm | 160 mm |
| 711202595 | 25 mm | 20 mm | 160 mm |
| 711203047 | 30 mm | 6 mm | 200 mm |
| 711203077 | 30 mm | 12 mm | 200 mm |
| 711203097 | 30 mm | 20 mm | 200 mm |
| 711203257 | 32 mm | 8 mm | 200 mm |
| 711203287 | 32 mm | 16 mm | 200 mm |
