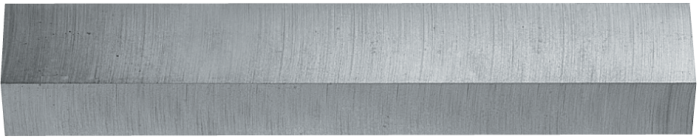

DIN 4964-D, tolerantie op schachtafm. h13, HRC 65±2.LET OP! Dit product is uitlopend.
Maten en specificaties
| Artikelnummer | h1 | b1 | l1 |
|---|---|---|---|
| 711100625 | 6 mm | 4 mm | 160 mm |
| 711100825 | 8 mm | 4 mm | 160 mm |
| 711100845 | 8 mm | 6 mm | 160 mm |
| 711101023 | 10 mm | 4 mm | 150 mm |
| 711101033 | 10 mm | 5 mm | 150 mm |
| 711101041 | 10 mm | 6 mm | 100 mm |
| 711101043 | 10 mm | 6 mm | 150 mm |
| 711101055 | 10 mm | 8 mm | 160 mm |
| 711101213 | 12 mm | 3 mm | 150 mm |
| 711101223 | 12 mm | 4 mm | 150 mm |
| 711101233 | 12 mm | 5 mm | 150 mm |
| 711101243 | 12 mm | 6 mm | 150 mm |
| 711101251 | 12 mm | 8 mm | 100 mm |
| 711101253 | 12 mm | 8 mm | 150 mm |
| 711101263 | 12 mm | 10 mm | 150 mm |
| 711101441 | 14 mm | 6 mm | 100 mm |
| 711101625 | 16 mm | 4 mm | 160 mm |
| 711101643 | 16 mm | 6 mm | 150 mm |
| 711101653 | 16 mm | 8 mm | 150 mm |
| 711101663 | 16 mm | 10 mm | 150 mm |
| 711101825 | 18 mm | 4 mm | 160 mm |
| 711101845 | 18 mm | 6 mm | 160 mm |
| 711102057 | 20 mm | 8 mm | 200 mm |
| 711102067 | 20 mm | 10 mm | 200 mm |
| 711102073 | 20 mm | 12 mm | 150 mm |
| 711102085 | 20 mm | 16 mm | 160 mm |
| 711102545 | 25 mm | 6 mm | 160 mm |
| 711102575 | 25 mm | 12 mm | 160 mm |
| 711102585 | 25 mm | 16 mm | 160 mm |
| 711102595 | 25 mm | 20 mm | 160 mm |
| 711103047 | 30 mm | 6 mm | 200 mm |
| 711103077 | 30 mm | 12 mm | 200 mm |
| 711103097 | 30 mm | 20 mm | 200 mm |
| 711103257 | 32 mm | 8 mm | 200 mm |
| 711103287 | 32 mm | 16 mm | 200 mm |
