De International Tools (IT) ECO HSS Spiraalboor DIN 338 is een betrouwbare en voordelige keuze voor algemene metaalbewerkingstoepassingen. Deze korte spiraalboor, voorzien van een cilindrische schacht en een standaard boorpunt met een tophoek van 118°, is ontworpen voor consistente prestaties. Het chemisch gezwarte oppervlak verhoogt de corrosiebestendigheid van de boor.Korte geslepen spiraalboor met standaard boorpunt voor de laagste prijs.

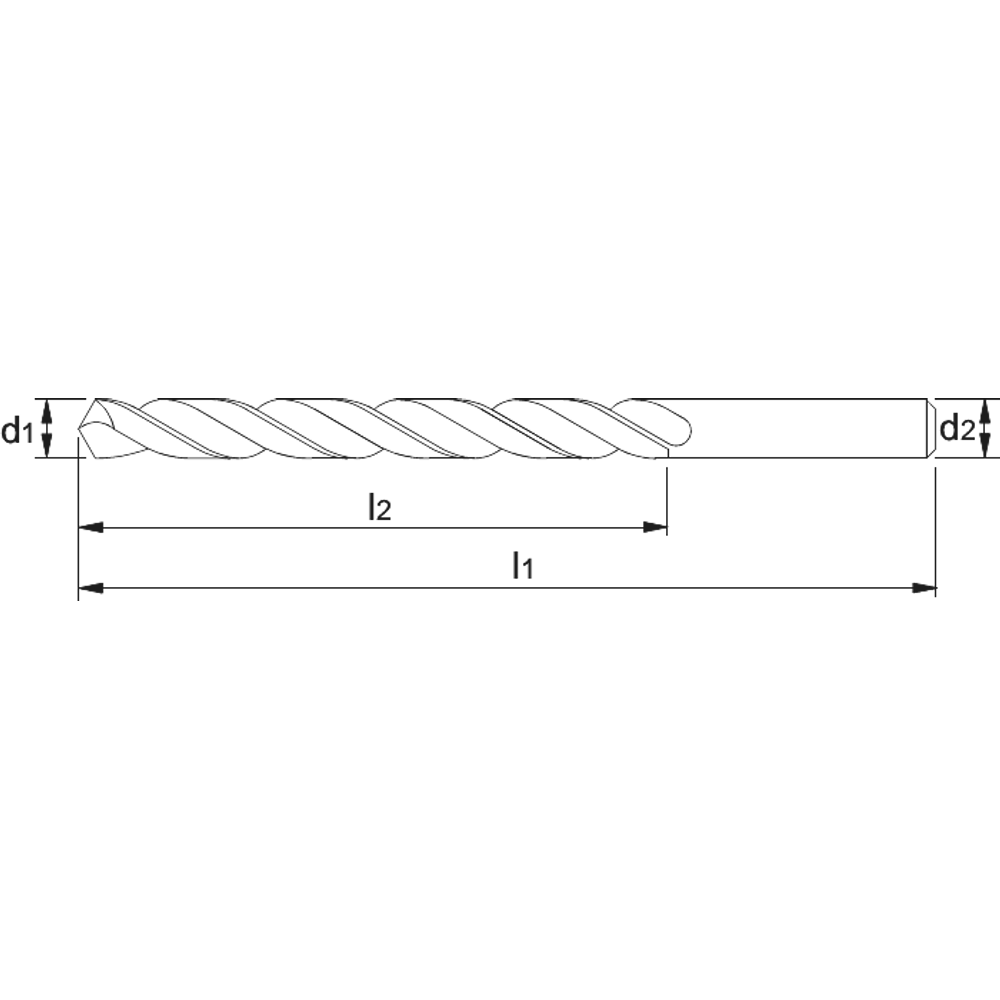

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114160100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114160110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114160120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114160130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114160140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114160150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114160160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114160170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114160180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114160190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114160200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114160210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114160220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114160230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114160240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114160250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114160260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114160270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114160280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114160290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114160300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114160310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114160320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114160330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114160340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114160350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114160360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114160370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114160380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114160390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114160400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114160410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114160420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114160430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114160440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114160450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114160460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114160470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114160480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114160490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114160500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114160510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114160520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114160530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114160540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114160550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114160560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114160570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114160580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114160590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114160600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114160610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114160620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114160630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114160640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114160650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114160660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114160670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114160680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114160690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114160700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114160710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114160720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114160730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114160740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114160750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114160760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114160770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114160780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114160790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114160800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114160810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114160820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114160830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114160840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114160850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114160860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114160870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114160880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114160890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114160900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114160910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114160920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114160930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114160940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114160950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114160960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114160970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114160980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114160990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114161000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114161010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114161020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114161030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114161040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114161050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114161060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114161070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114161080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114161090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114161100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114161110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114161120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114161130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114161140 | 11.4 mm | 94 mm | 142 mm | 11.4 mm |
| 114161150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114161160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114161170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114161180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114161190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114161200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114161210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114161220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114161230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114161240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114161250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114161260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114161270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114161280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114161290 | 12.9 mm | 101 mm | 151 mm | 12.9 mm |
| 114161300 | 13 mm | 101 mm | 151 mm | 13 mm |
