Ontdek de International Tools ECO HSS Spiraalboor, conform DIN 338. Deze standaard boor, in gewalste en korte uitvoering, beschikt over een cilindrische schacht en een standaard tophoek van 118°. Het chemisch gezwarte oppervlak biedt effectieve bescherming tegen corrosie. Als universele keuze voor diverse metaalbewerking, biedt deze boor betrouwbaarheid tegen de laagste prijs. Ideaal voor professionals.
Maten en specificaties

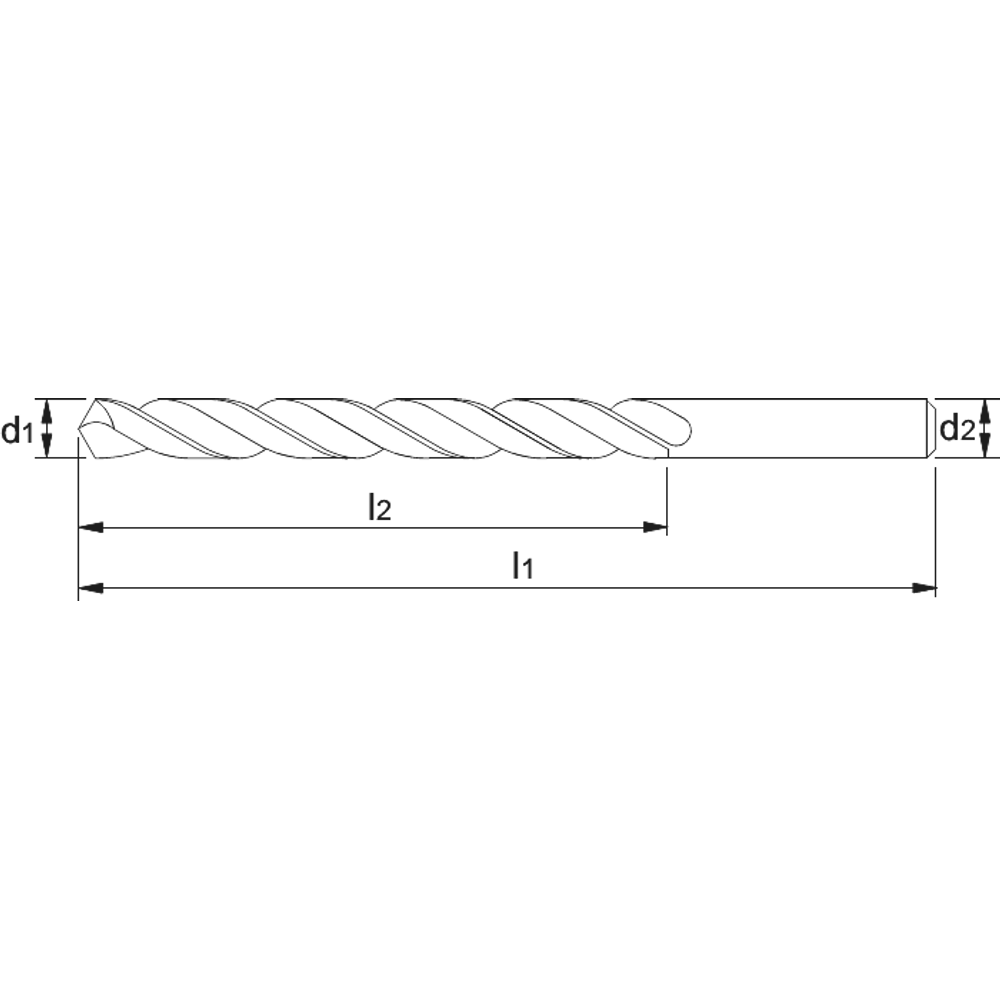

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114000100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114000110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114000120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114000130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114000140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114000150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114000160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114000170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114000180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114000190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114000200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114000210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114000220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114000230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114000240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114000250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114000260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114000270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114000280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114000290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114000300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114000310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114000320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114000330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114000340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114000350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114000360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114000370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114000380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114000390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114000400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114000410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114000420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114000430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114000440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114000450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114000460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114000470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114000480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114000490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114000500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114000510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114000520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114000530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114000540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114000550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114000560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114000570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114000580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114000590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114000600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114000610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114000620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114000630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114000640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114000650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114000660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114000670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114000680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114000690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114000700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114000710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114000720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114000730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114000740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114000750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114000760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114000770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114000780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114000790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114000800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114000810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114000820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114000830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114000840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114000850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114000860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114000870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114000880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114000890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114000900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114000910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114000920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114000930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114000940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114000950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114000960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114000970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114000980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114000990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114001000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114001010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114001020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114001030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114001040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114001050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114001060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114001070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114001080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114001090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114001100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114001110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114001120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114001130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114001140 | 11.4 mm | 94 mm | 142 mm | 11.4 mm |
| 114001150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114001160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114001170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114001180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114001190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114001200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114001210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114001220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114001230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114001240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114001250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114001260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114001270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114001280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114001290 | 12.9 mm | 101 mm | 151 mm | 12.9 mm |
| 114001300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 114001350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 114001400 | 14 mm | 108 mm | 160 mm | 14 mm |
| 114001450 | 14.5 mm | 114 mm | 169 mm | 14.5 mm |
| 114001500 | 15 mm | 114 mm | 169 mm | 15 mm |
| 114001550 | 15.5 mm | 120 mm | 178 mm | 15.5 mm |
| 114001600 | 16 mm | 120 mm | 178 mm | 16 mm |
| 114001650 | 16.5 mm | 125 mm | 184 mm | 16.5 mm |
| 114001700 | 17 mm | 125 mm | 184 mm | 17 mm |
| 114001750 | 17.5 mm | 130 mm | 191 mm | 17.5 mm |
| 114001800 | 18 mm | 130 mm | 191 mm | 18 mm |
| 114001850 | 18.5 mm | 135 mm | 198 mm | 18.5 mm |
| 114001900 | 19 mm | 135 mm | 198 mm | 19 mm |
| 114001950 | 19.5 mm | 140 mm | 205 mm | 19.5 mm |
| 114002000 | 20 mm | 140 mm | 205 mm | 20 mm |
