De IT ECO PRO HSS Spiraalboor DIN 338 is de verbeterde kwaliteitsboor voor de professional. Deze korte, robuuste spiraalboor met cilindrische schacht is vanaf diameter 3,0 mm voorzien van een kruisaanslijping. Deze boorpunt maakt voorcentreren overbodig en garandeert een nauwkeurige positionering. De volledig blank geslepen uitvoering zorgt voor een zuivere snede in diverse materialen.Korte blank geslepen zelfcentrerende spiraalboor. Industrie kwaliteit.

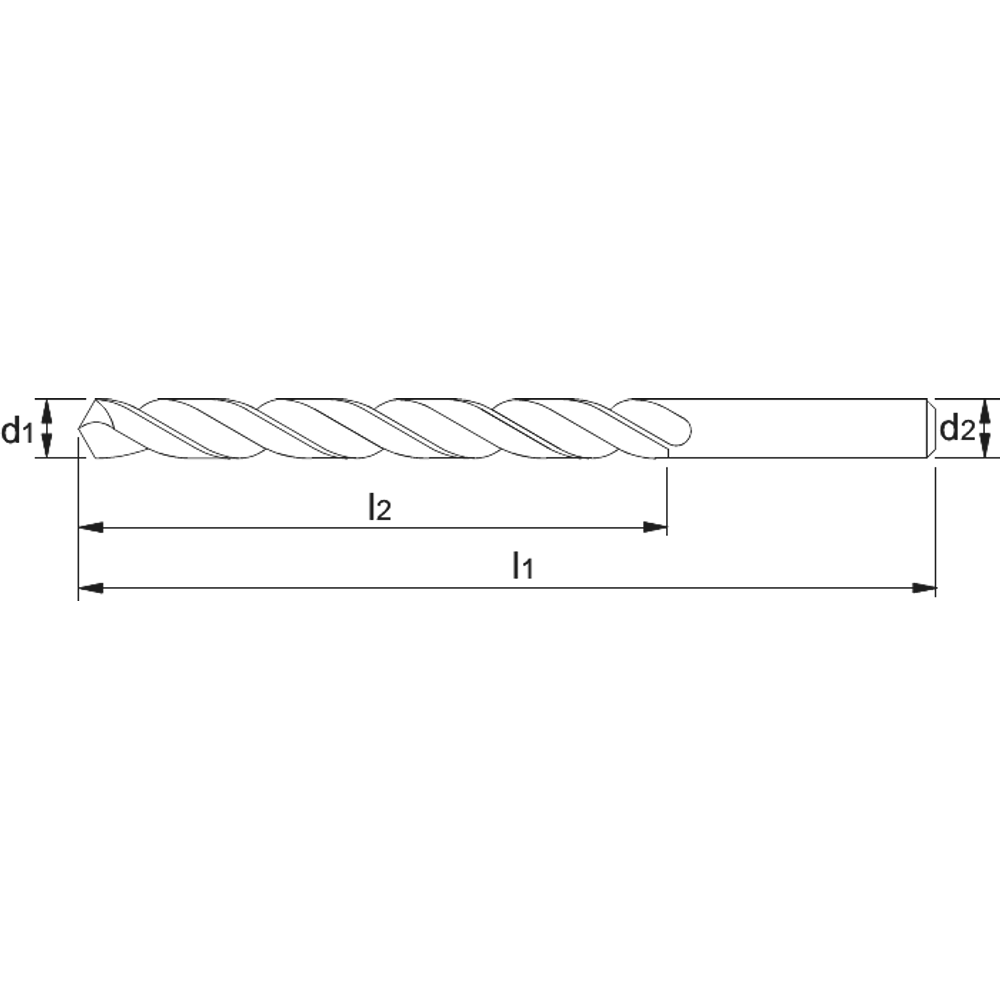

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114300100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114300110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114300120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114300130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114300140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114300150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114300160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114300170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114300180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114300190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114300200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114300210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114300220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114300230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114300240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114300250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114300260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114300270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114300280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114300290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114300300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114300310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114300320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114300330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114300340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114300350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114300360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114300370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114300380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114300390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114300400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114300410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114300420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114300430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114300440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114300450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114300460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114300470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114300480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114300490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114300500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114300510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114300520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114300530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114300540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114300550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114300560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114300570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114300580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114300590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114300600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114300610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114300620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114300630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114300640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114300650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114300660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114300670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114300680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114300690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114300700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114300710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114300720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114300730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114300740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114300750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114300760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114300770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114300780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114300790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114300800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114300810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114300820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114300830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114300840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114300850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114300860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114300870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114300880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114300890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114300900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114300910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114300920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114300930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114300940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114300950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114300960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114300970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114300980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114300990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114301000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114301010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114301020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114301030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114301040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114301050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114301060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114301070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114301080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114301090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114301100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114301120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114301150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114301180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114301200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114301220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114301250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114301280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114301300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 114301350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 114301400 | 14 mm | 108 mm | 160 mm | 14 mm |
| 114301450 | 14.5 mm | 114 mm | 169 mm | 14.5 mm |
| 114301500 | 15 mm | 114 mm | 169 mm | 15 mm |
| 114301550 | 15.5 mm | 120 mm | 178 mm | 15.5 mm |
| 114301600 | 16 mm | 120 mm | 178 mm | 16 mm |
| 114301650 | 16.5 mm | 125 mm | 184 mm | 16.5 mm |
| 114301700 | 17 mm | 125 mm | 184 mm | 17 mm |
| 114301750 | 17.5 mm | 130 mm | 191 mm | 17.5 mm |
| 114301800 | 18 mm | 130 mm | 191 mm | 18 mm |
| 114301850 | 18.5 mm | 135 mm | 198 mm | 18.5 mm |
| 114301900 | 19 mm | 135 mm | 198 mm | 19 mm |
| 114301950 | 19.5 mm | 140 mm | 205 mm | 19.5 mm |
| 114302000 | 20 mm | 140 mm | 205 mm | 20 mm |
