De IT ECO PRO HSS Spiraalboor DIN 340 is de verbeterde kwaliteitsboor voor het boren van diepe gaten. De lange, geslepen uitvoering met cilindrische schacht is voorzien van een kruisaanslijping. Deze boorpunt zorgt voor een precies en licht aanboorproces. Vanwege de lengte adviseren wij voor te centreren voor een optimaal en nauwkeurig resultaat. De blank geslepen boor zorgt voor een zuivere snede.

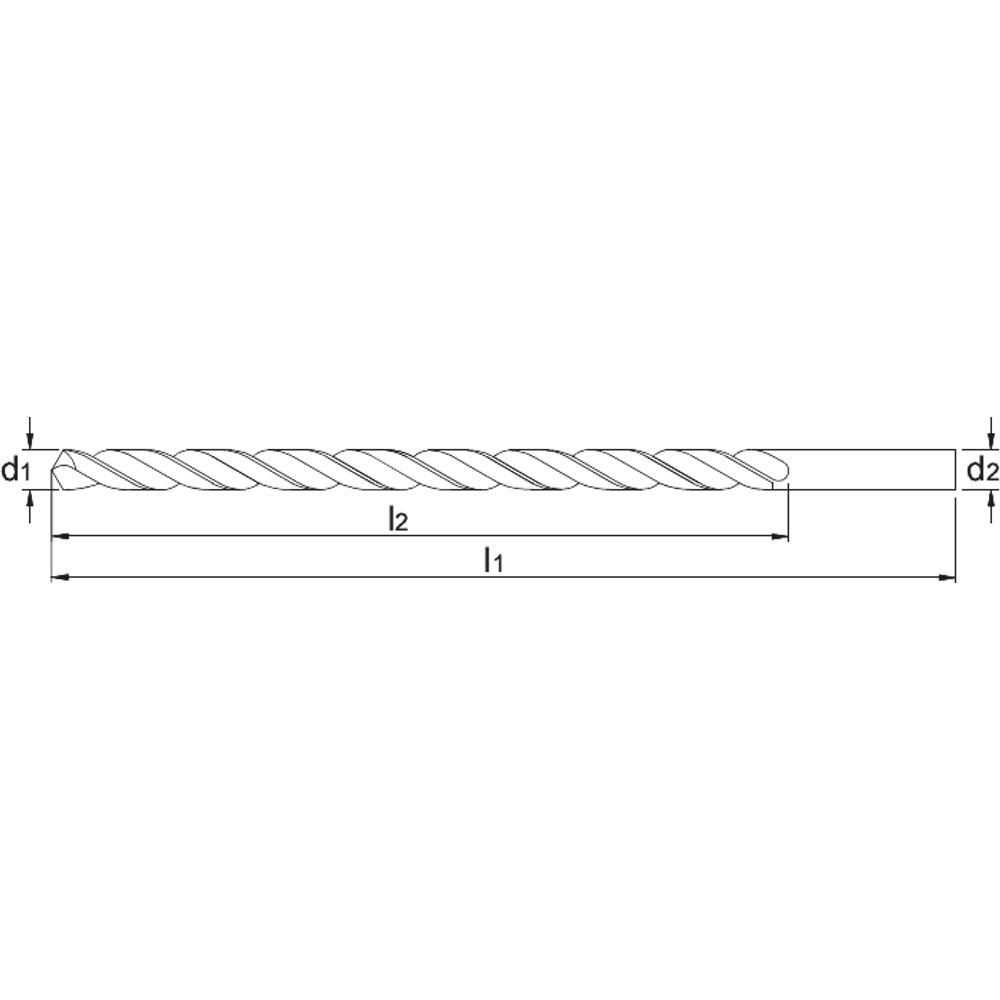

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 118130100 | 1 mm | 33 mm | 56 mm | 1 mm |
| 118130110 | 1.1 mm | 37 mm | 60 mm | 1.1 mm |
| 118130120 | 1.2 mm | 41 mm | 65 mm | 1.2 mm |
| 118130130 | 1.3 mm | 41 mm | 65 mm | 1.3 mm |
| 118130140 | 1.4 mm | 45 mm | 70 mm | 1.4 mm |
| 118130150 | 1.5 mm | 45 mm | 70 mm | 1.5 mm |
| 118130160 | 1.6 mm | 50 mm | 76 mm | 1.6 mm |
| 118130170 | 1.7 mm | 50 mm | 76 mm | 1.7 mm |
| 118130180 | 1.8 mm | 53 mm | 80 mm | 1.8 mm |
| 118130190 | 1.9 mm | 53 mm | 80 mm | 1.9 mm |
| 118130200 | 2 mm | 56 mm | 85 mm | 2 mm |
| 118130210 | 2.1 mm | 56 mm | 85 mm | 2.1 mm |
| 118130220 | 2.2 mm | 59 mm | 90 mm | 2.2 mm |
| 118130230 | 2.3 mm | 59 mm | 90 mm | 2.3 mm |
| 118130240 | 2.4 mm | 62 mm | 95 mm | 2.4 mm |
| 118130250 | 2.5 mm | 62 mm | 95 mm | 2.5 mm |
| 118130260 | 2.6 mm | 62 mm | 95 mm | 2.6 mm |
| 118130270 | 2.7 mm | 66 mm | 100 mm | 2.7 mm |
| 118130280 | 2.8 mm | 66 mm | 100 mm | 2.8 mm |
| 118130290 | 2.9 mm | 66 mm | 100 mm | 2.9 mm |
| 118130300 | 3 mm | 66 mm | 100 mm | 3 mm |
| 118130310 | 3.1 mm | 69 mm | 106 mm | 3.1 mm |
| 118130320 | 3.2 mm | 69 mm | 106 mm | 3.2 mm |
| 118130330 | 3.3 mm | 69 mm | 106 mm | 3.3 mm |
| 118130340 | 3.4 mm | 73 mm | 112 mm | 3.4 mm |
| 118130350 | 3.5 mm | 73 mm | 112 mm | 3.5 mm |
| 118130360 | 3.6 mm | 73 mm | 112 mm | 3.6 mm |
| 118130370 | 3.7 mm | 73 mm | 112 mm | 3.7 mm |
| 118130380 | 3.8 mm | 78 mm | 119 mm | 3.8 mm |
| 118130390 | 3.9 mm | 78 mm | 119 mm | 3.9 mm |
| 118130400 | 4 mm | 78 mm | 119 mm | 4 mm |
| 118130410 | 4.1 mm | 78 mm | 119 mm | 4.1 mm |
| 118130420 | 4.2 mm | 78 mm | 119 mm | 4.2 mm |
| 118130430 | 4.3 mm | 82 mm | 126 mm | 4.3 mm |
| 118130440 | 4.4 mm | 82 mm | 126 mm | 4.4 mm |
| 118130450 | 4.5 mm | 82 mm | 126 mm | 4.5 mm |
| 118130460 | 4.6 mm | 82 mm | 126 mm | 4.6 mm |
| 118130470 | 4.7 mm | 82 mm | 126 mm | 4.7 mm |
| 118130480 | 4.8 mm | 87 mm | 132 mm | 4.8 mm |
| 118130490 | 4.9 mm | 87 mm | 132 mm | 4.9 mm |
| 118130500 | 5 mm | 87 mm | 132 mm | 5 mm |
| 118130510 | 5.1 mm | 87 mm | 132 mm | 5.1 mm |
| 118130520 | 5.2 mm | 87 mm | 132 mm | 5.2 mm |
| 118130530 | 5.3 mm | 87 mm | 132 mm | 5.3 mm |
| 118130540 | 5.4 mm | 91 mm | 139 mm | 5.4 mm |
| 118130550 | 5.5 mm | 91 mm | 139 mm | 5.5 mm |
| 118130560 | 5.6 mm | 91 mm | 139 mm | 5.6 mm |
| 118130570 | 5.7 mm | 91 mm | 139 mm | 5.7 mm |
| 118130580 | 5.8 mm | 91 mm | 139 mm | 5.8 mm |
| 118130590 | 5.9 mm | 91 mm | 139 mm | 5.9 mm |
| 118130600 | 6 mm | 91 mm | 139 mm | 6 mm |
| 118130650 | 6.5 mm | 97 mm | 148 mm | 6.5 mm |
| 118130680 | 6.8 mm | 102 mm | 156 mm | 6.8 mm |
| 118130700 | 7 mm | 102 mm | 156 mm | 7 mm |
| 118130750 | 7.5 mm | 102 mm | 156 mm | 7.5 mm |
| 118130800 | 8 mm | 109 mm | 165 mm | 8 mm |
| 118130850 | 8.5 mm | 109 mm | 165 mm | 8.5 mm |
| 118130900 | 9 mm | 115 mm | 175 mm | 9 mm |
| 118130950 | 9.5 mm | 115 mm | 175 mm | 9.5 mm |
| 118131000 | 10 mm | 121 mm | 184 mm | 10 mm |
| 118131020 | 10.2 mm | 121 mm | 184 mm | 10.2 mm |
| 118131050 | 10.5 mm | 121 mm | 184 mm | 10.5 mm |
| 118131100 | 11 mm | 128 mm | 195 mm | 11 mm |
| 118131150 | 11.5 mm | 128 mm | 195 mm | 11.5 mm |
| 118131200 | 12 mm | 134 mm | 205 mm | 12 mm |
| 118131250 | 12.5 mm | 134 mm | 205 mm | 12.5 mm |
| 118131300 | 13 mm | 134 mm | 205 mm | 13 mm |
