De Phantom HP2 UNI HSS-E Spiraalboor DIN 1897 TiN is een universele high-performance boor voor productiedoeleinden. Het TiN-gecoate oppervlak garandeert een langere standtijd en optimale prestaties. De extra korte geslepen uitvoering met cilindrische schacht en viervlaks-aanslijping zorgt voor precisie en stabiliteit. De 118° tophoek verbetert de centrering. Deze boor levert betrouwbare resultaten voor professionele metaalbewerkers.

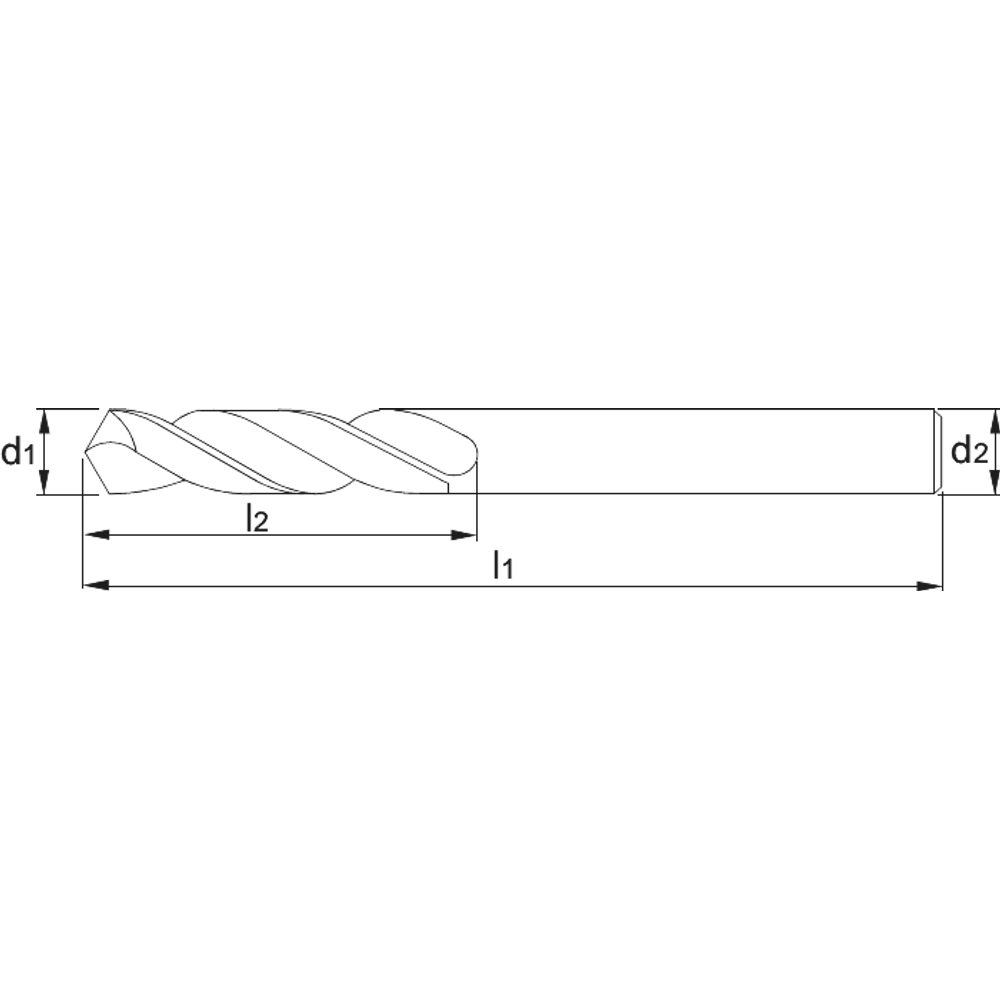

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 111680100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 111680110 | 1.1 mm | 7 mm | 28 mm | 1.1 mm |
| 111680120 | 1.2 mm | 8 mm | 30 mm | 1.2 mm |
| 111680130 | 1.3 mm | 8 mm | 30 mm | 1.3 mm |
| 111680140 | 1.4 mm | 9 mm | 32 mm | 1.4 mm |
| 111680150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 111680160 | 1.6 mm | 10 mm | 34 mm | 1.6 mm |
| 111680170 | 1.7 mm | 10 mm | 34 mm | 1.7 mm |
| 111680180 | 1.8 mm | 11 mm | 36 mm | 1.8 mm |
| 111680190 | 1.9 mm | 11 mm | 36 mm | 1.9 mm |
| 111680200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 111680210 | 2.1 mm | 12 mm | 38 mm | 2.1 mm |
| 111680220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 111680230 | 2.3 mm | 13 mm | 40 mm | 2.3 mm |
| 111680240 | 2.4 mm | 14 mm | 43 mm | 2.4 mm |
| 111680250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 111680260 | 2.6 mm | 14 mm | 43 mm | 2.6 mm |
| 111680270 | 2.7 mm | 16 mm | 46 mm | 2.7 mm |
| 111680280 | 2.8 mm | 16 mm | 46 mm | 2.8 mm |
| 111680290 | 2.9 mm | 16 mm | 46 mm | 2.9 mm |
| 111680300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 111680310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 111680320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 111680330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 111680340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 111680350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 111680360 | 3.6 mm | 20 mm | 52 mm | 3.6 mm |
| 111680370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 111680380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 111680390 | 3.9 mm | 22 mm | 55 mm | 3.9 mm |
| 111680400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 111680410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 111680420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 111680430 | 4.3 mm | 24 mm | 58 mm | 4.3 mm |
| 111680440 | 4.4 mm | 24 mm | 58 mm | 4.4 mm |
| 111680450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 111680460 | 4.6 mm | 24 mm | 58 mm | 4.6 mm |
| 111680470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 111680480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 111680490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 111680500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 111680510 | 5.1 mm | 26 mm | 62 mm | 5.1 mm |
| 111680520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 111680530 | 5.3 mm | 26 mm | 62 mm | 5.3 mm |
| 111680540 | 5.4 mm | 28 mm | 66 mm | 5.4 mm |
| 111680550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 111680560 | 5.6 mm | 28 mm | 66 mm | 5.6 mm |
| 111680570 | 5.7 mm | 28 mm | 66 mm | 5.7 mm |
| 111680580 | 5.8 mm | 28 mm | 66 mm | 5.8 mm |
| 111680590 | 5.9 mm | 28 mm | 66 mm | 5.9 mm |
| 111680600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 111680610 | 6.1 mm | 31 mm | 70 mm | 6.1 mm |
| 111680620 | 6.2 mm | 31 mm | 70 mm | 6.2 mm |
| 111680630 | 6.3 mm | 31 mm | 70 mm | 6.3 mm |
| 111680640 | 6.4 mm | 31 mm | 70 mm | 6.4 mm |
| 111680650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 111680660 | 6.6 mm | 31 mm | 70 mm | 6.6 mm |
| 111680670 | 6.7 mm | 31 mm | 70 mm | 6.7 mm |
| 111680680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 111680690 | 6.9 mm | 34 mm | 74 mm | 6.9 mm |
| 111680700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 111680710 | 7.1 mm | 34 mm | 74 mm | 7.1 mm |
| 111680720 | 7.2 mm | 34 mm | 74 mm | 7.2 mm |
| 111680730 | 7.3 mm | 34 mm | 74 mm | 7.3 mm |
| 111680740 | 7.4 mm | 34 mm | 74 mm | 7.4 mm |
| 111680750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 111680760 | 7.6 mm | 37 mm | 79 mm | 7.6 mm |
| 111680770 | 7.7 mm | 37 mm | 79 mm | 7.7 mm |
| 111680780 | 7.8 mm | 37 mm | 79 mm | 7.8 mm |
| 111680790 | 7.9 mm | 37 mm | 79 mm | 7.9 mm |
| 111680800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 111680810 | 8.1 mm | 37 mm | 79 mm | 8.1 mm |
| 111680820 | 8.2 mm | 37 mm | 79 mm | 8.2 mm |
| 111680830 | 8.3 mm | 37 mm | 79 mm | 8.3 mm |
| 111680840 | 8.4 mm | 37 mm | 79 mm | 8.4 mm |
| 111680850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 111680860 | 8.6 mm | 40 mm | 84 mm | 8.6 mm |
| 111680870 | 8.7 mm | 40 mm | 84 mm | 8.7 mm |
| 111680880 | 8.8 mm | 40 mm | 84 mm | 8.8 mm |
| 111680890 | 8.9 mm | 40 mm | 84 mm | 8.9 mm |
| 111680900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 111680910 | 9.1 mm | 40 mm | 84 mm | 9.1 mm |
| 111680920 | 9.2 mm | 40 mm | 84 mm | 9.2 mm |
| 111680930 | 9.3 mm | 40 mm | 84 mm | 9.3 mm |
| 111680940 | 9.4 mm | 40 mm | 84 mm | 9.4 mm |
| 111680950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 111680960 | 9.6 mm | 43 mm | 89 mm | 9.6 mm |
| 111680970 | 9.7 mm | 43 mm | 89 mm | 9.7 mm |
| 111680980 | 9.8 mm | 43 mm | 89 mm | 9.8 mm |
| 111680990 | 9.9 mm | 43 mm | 89 mm | 9.9 mm |
| 111681000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 111681010 | 10.1 mm | 43 mm | 89 mm | 10.1 mm |
| 111681020 | 10.2 mm | 43 mm | 89 mm | 10.2 mm |
| 111681030 | 10.3 mm | 43 mm | 89 mm | 10.3 mm |
| 111681050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 111681100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 111681150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 111681200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 111681250 | 12.5 mm | 51 mm | 102 mm | 12.5 mm |
| 111681300 | 13 mm | 51 mm | 102 mm | 13 mm |
| 111681350 | 13.5 mm | 54 mm | 107 mm | 13.5 mm |
| 111681400 | 14 mm | 54 mm | 107 mm | 14 mm |
