cilindrische schacht, spiraalgroeven, hoek 5°42', voor handgebruik

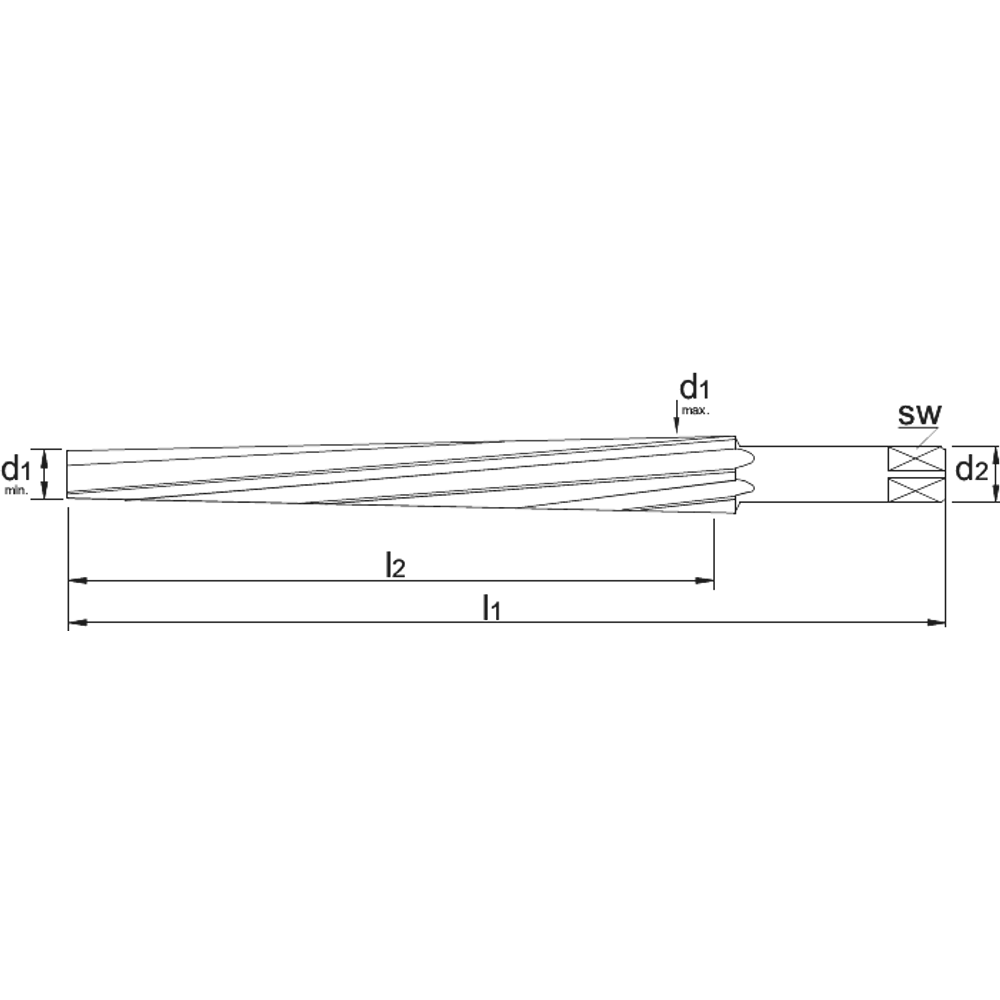

Maten en specificaties
| Artikelnummer | d1 min | d1 max | l2 | l1 | d2 |
|---|---|---|---|---|---|
| 517700300 | 3 mm | 10 mm | 70 mm | 100 mm | 8 mm |
| 517700500 | 5 mm | 15 mm | 100 mm | 140 mm | 12.5 mm |
| 517701000 | 10 mm | 25 mm | 150 mm | 195 mm | 20 mm |
| 517701500 | 15 mm | 35 mm | 200 mm | 250 mm | 28 mm |
| 517702300 | 23 mm | 45 mm | 220 mm | 275 mm | 40 mm |
| 517703000 | 30 mm | 55 mm | 250 mm | 310 mm | 45 mm |
