cilindrische schacht, spiraalgroeven, voor handgebruik

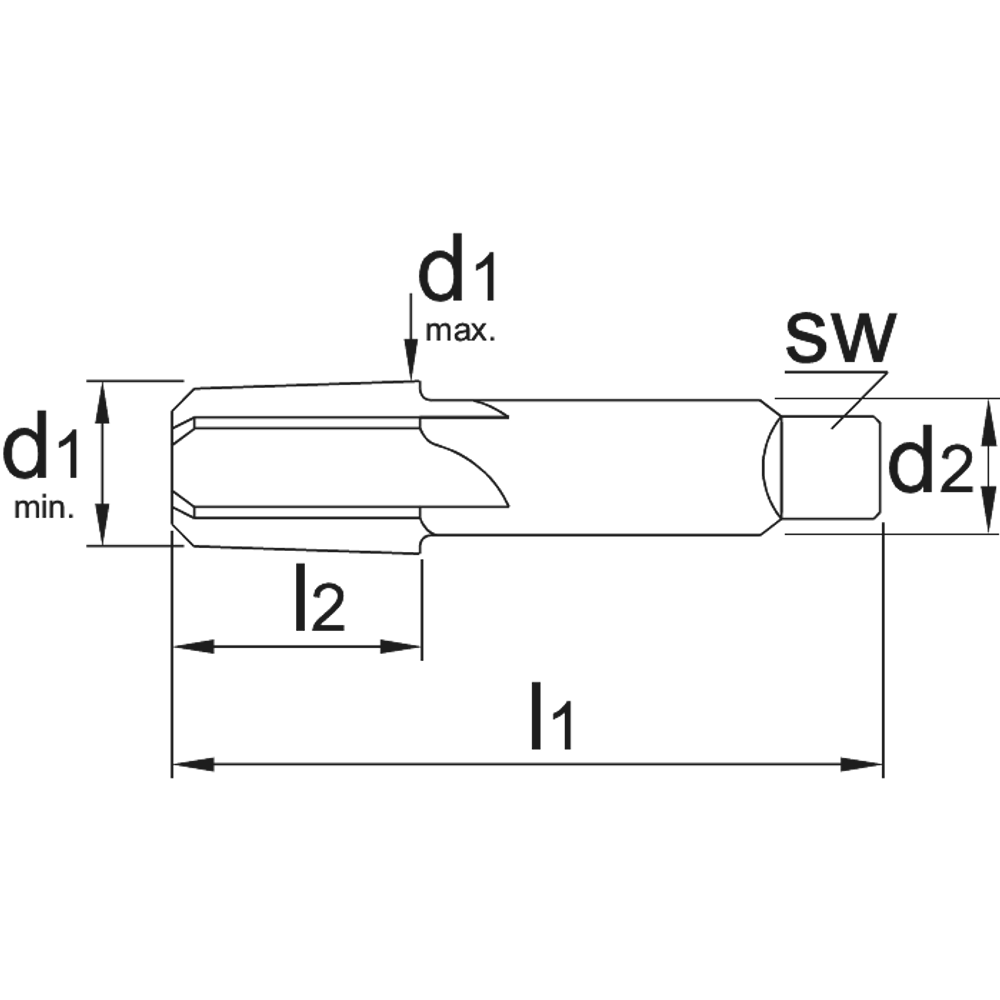

Maten en specificaties
| Artikelnummer | Nr. | d1 min | d1 max | l2 | l1 |
|---|---|---|---|---|---|
| 517800794 | 1/16 | 6.1 mm | 7.68 mm | 19.05 mm | 53.98 mm |
| 517801029 | 1/8 | 8.03 mm | 9.19 mm | 19.05 mm | 53.98 mm |
| 517801372 | 1/4 | 10.31 mm | 11.99 mm | 26.99 mm | 61.91 mm |
| 517801715 | 3/8 | 13.72 mm | 15.39 mm | 26.99 mm | 65.09 mm |
| 517802134 | 1/2 | 16.89 mm | 19.08 mm | 34.93 mm | 79.38 mm |
| 517802667 | 3/4 | 22.25 mm | 24.43 mm | 34.93 mm | 82.55 mm |
| 517803340 | 1 | 28.02 mm | 30.78 mm | 34.45 mm | 95.25 mm |
