Phantom HSS-E 8% Spiraalboor DIN 338 Aero Deze gebronsde, korte spiraalboor met cilindrische schacht is vervaardigd volgens DIN 338. De boor is voorzien van een 135° tophoek met kruisaanslijping, wat zorgt voor een uitstekende centrering. Dankzij de 8% kobaltlegering biedt deze boor een lange standtijd en is hij ideaal voor het bewerken van titanium en aluminium, specifiek binnen de aerospace industrie.

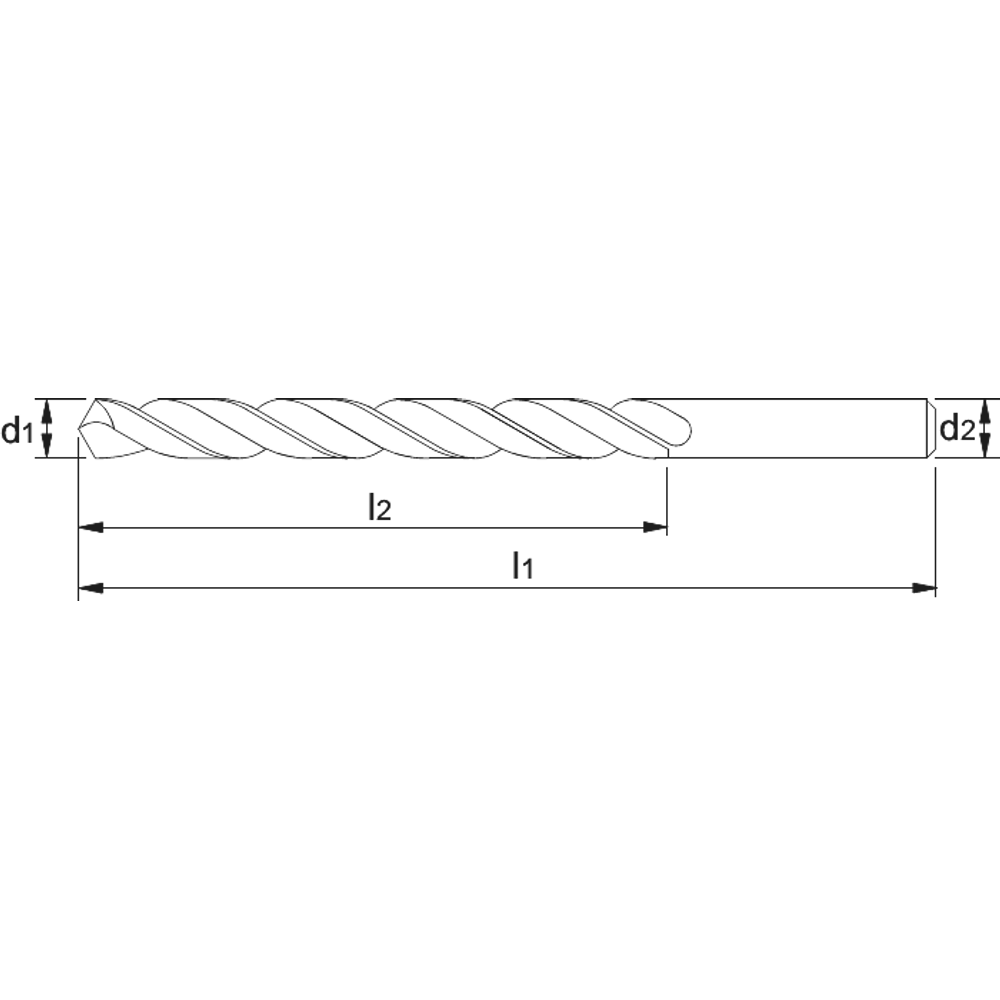

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 115100100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 115100110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 115100120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 115100130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 115100140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 115100150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 115100160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 115100170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 115100180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 115100190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 115100200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 115100210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 115100220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 115100230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 115100240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 115100250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 115100260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 115100270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 115100280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 115100290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 115100300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 115100310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 115100320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 115100330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 115100340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 115100350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 115100360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 115100370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 115100380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 115100390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 115100400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 115100410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 115100420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 115100430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 115100440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 115100450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 115100460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 115100470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 115100480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 115100490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 115100500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 115100510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 115100520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 115100530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 115100540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 115100550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 115100560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 115100570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 115100580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 115100590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 115100600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 115100610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 115100620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 115100630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 115100640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 115100650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 115100660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 115100670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 115100680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 115100690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 115100700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 115100710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 115100720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 115100730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 115100740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 115100750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 115100760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 115100770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 115100780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 115100790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 115100800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 115100810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 115100820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 115100830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 115100840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 115100850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 115100860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 115100870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 115100880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 115100890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 115100900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 115100910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 115100920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 115100930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 115100940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 115100950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 115100960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 115100970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 115100980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 115100990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 115101000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 115101020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 115101050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 115101100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 115101150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 115101200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 115101250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 115101300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 115101350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 115101400 | 14 mm | 108 mm | 160 mm | 14 mm |
| 115101450 | 14.5 mm | 114 mm | 169 mm | 14.5 mm |
| 115101500 | 15 mm | 114 mm | 169 mm | 15 mm |
| 115101600 | 16 mm | 120 mm | 178 mm | 16 mm |
