DIN 208, Morse conus opname, spiraalgroeven

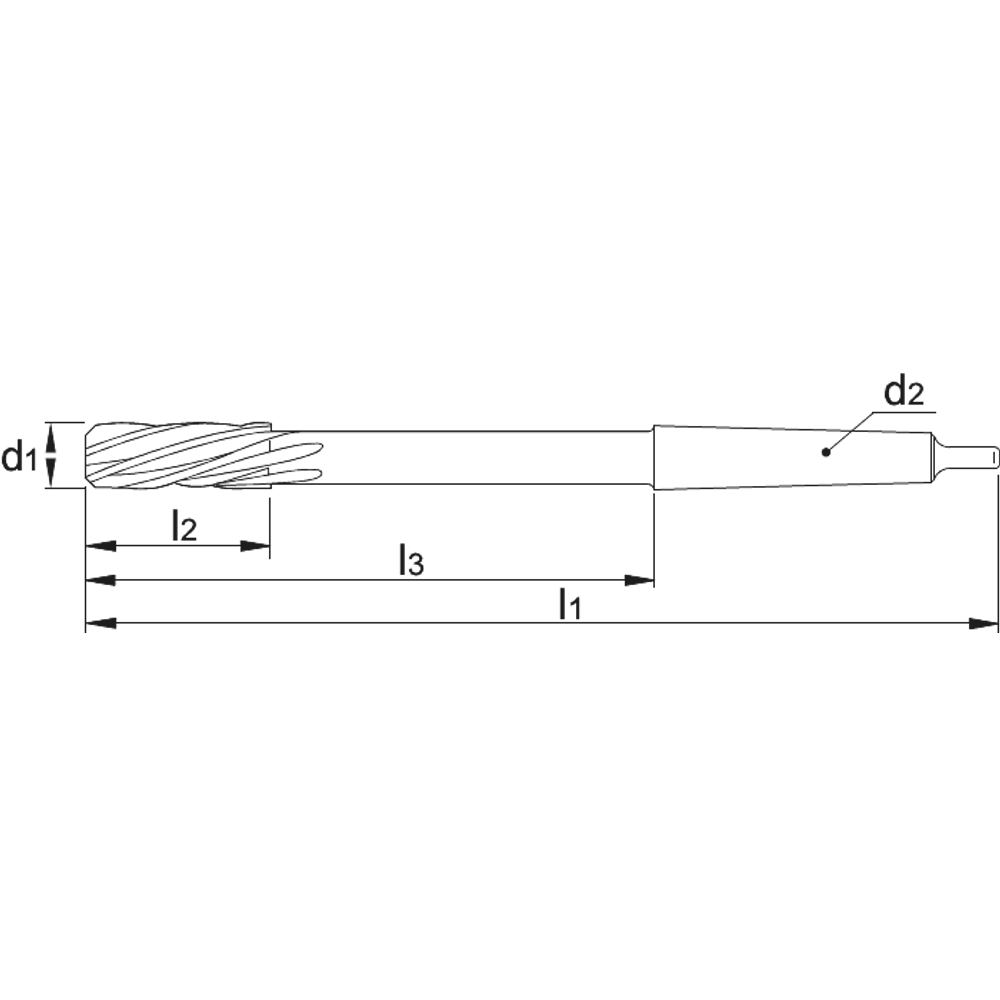

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 |
|---|---|---|---|---|
| 515200400 | 4 mm | 24 mm | 54 mm | 120 mm |
| 515200500 | 5 mm | 26 mm | 67 mm | 133 mm |
| 515200600 | 6 mm | 28 mm | 72 mm | 138 mm |
| 515200700 | 7 mm | 31 mm | 84 mm | 150 mm |
| 515200800 | 8 mm | 33 mm | 90 mm | 156 mm |
| 515200900 | 9 mm | 36 mm | 96 mm | 162 mm |
| 515201000 | 10 mm | 38 mm | 102 mm | 168 mm |
| 515201050 | 10.5 mm | 41 mm | 109 mm | 168 mm |
| 515201100 | 11 mm | 41 mm | 109 mm | 175 mm |
| 515201150 | 11.5 mm | 41 mm | 109 mm | 175 mm |
| 515201200 | 12 mm | 44 mm | 116 mm | 182 mm |
| 515201250 | 12.5 mm | 44 mm | 116 mm | 182 mm |
| 515201300 | 13 mm | 44 mm | 116 mm | 182 mm |
| 515201350 | 13.5 mm | 47 mm | 123 mm | 189 mm |
| 515201400 | 14 mm | 47 mm | 123 mm | 189 mm |
| 515201450 | 14.5 mm | 50 mm | 124 mm | 204 mm |
