cilindrische schacht, extra lange uitvoering, spiraalgroeven, uit M42-staal

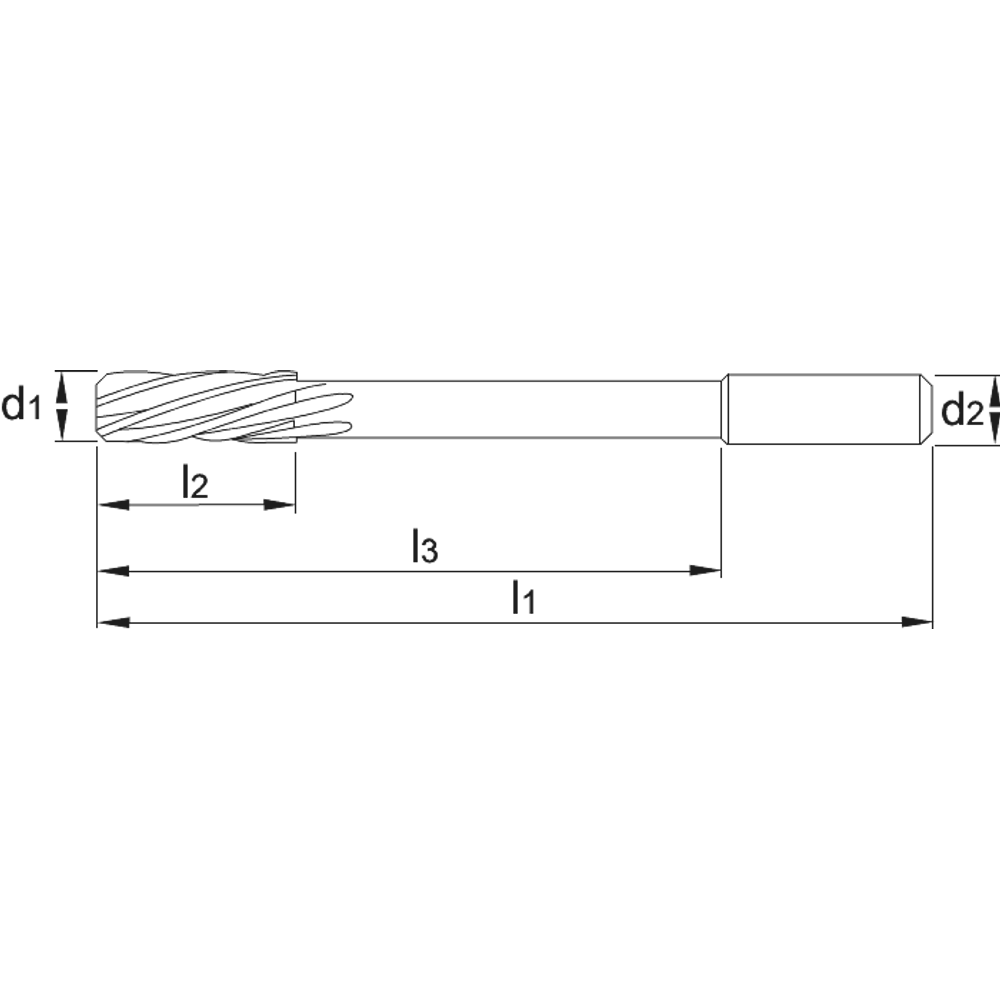

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 | d2 |
|---|---|---|---|---|---|
| 514000200 | 2 mm | 14 mm | 45 mm | 65 mm | 2 mm |
| 514000250 | 2.5 mm | 14 mm | 55 mm | 75 mm | 2.5 mm |
| 514000300 | 3 mm | 14 mm | 70 mm | 90 mm | 3 mm |
| 514000400 | 4 mm | 16 mm | 80 mm | 105 mm | 4 mm |
| 514000500 | 5 mm | 16 mm | 90 mm | 115 mm | 5 mm |
| 514000600 | 6 mm | 16 mm | 100 mm | 130 mm | 6 mm |
| 514000700 | 7 mm | 18 mm | 110 mm | 140 mm | 7 mm |
| 514000800 | 8 mm | 18 mm | 130 mm | 160 mm | 8 mm |
| 514000900 | 9 mm | 18 mm | 140 mm | 175 mm | 9 mm |
| 514001000 | 10 mm | 20 mm | 150 mm | 190 mm | 10 mm |
| 514001100 | 11 mm | 20 mm | 160 mm | 200 mm | 10 mm |
| 514001200 | 12 mm | 20 mm | 160 mm | 210 mm | 12 mm |
