met spaanbreker, cilindrische schacht, rechte groeven, hoek 2°51', voor machinaal gebruik

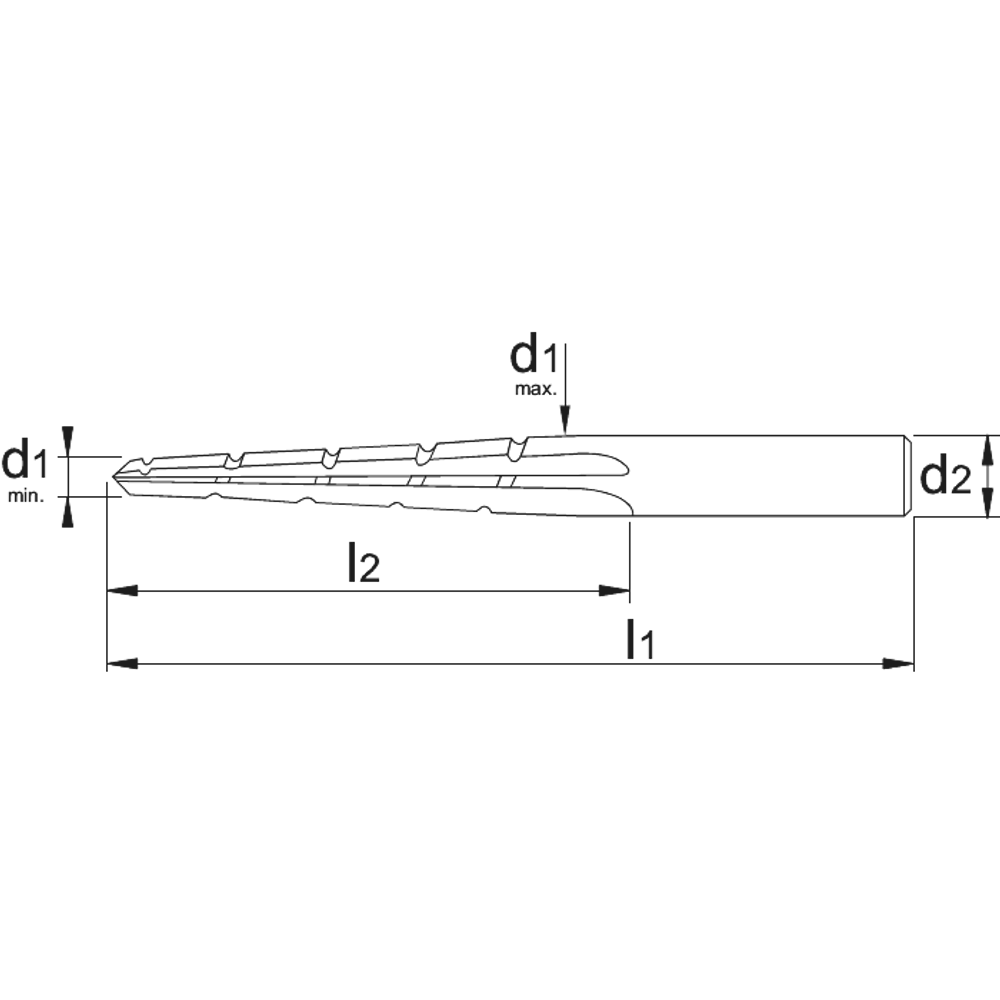

Maten en specificaties
| Artikelnummer | d1 min | d1 max | l2 | l1 | d2 |
|---|---|---|---|---|---|
| 518200100 | 1 mm | 2 mm | 20 mm | 50 mm | 2 mm |
| 518200200 | 2 mm | 4 mm | 40 mm | 80 mm | 4 mm |
| 518200300 | 3 mm | 6 mm | 60 mm | 110 mm | 6 mm |
| 518200400 | 4 mm | 8 mm | 80 mm | 130 mm | 8 mm |
| 518200500 | 5 mm | 10 mm | 100 mm | 155 mm | 10 mm |
| 518200600 | 6 mm | 12 mm | 120 mm | 180 mm | 12 mm |
| 518200700 | 7 mm | 14 mm | 140 mm | 200 mm | 14 mm |
