Phantom HSS-E Spiraalboor DIN 1897 TiAlN, roestvaststaal De RVS specialist voor het bewerken van roestvaststaal, Hastelloy en Inconel. De extra korte uitvoering volgens DIN 1897 zorgt voor maximale stabiliteit. De extra versterkte kern, in combinatie met de TiAlN-coating, staat garant voor een lange standtijd en hittebestendigheid. Dankzij de 130° tophoek met kruisaanslijping boort u precies en met minder kracht.
Maten en specificaties

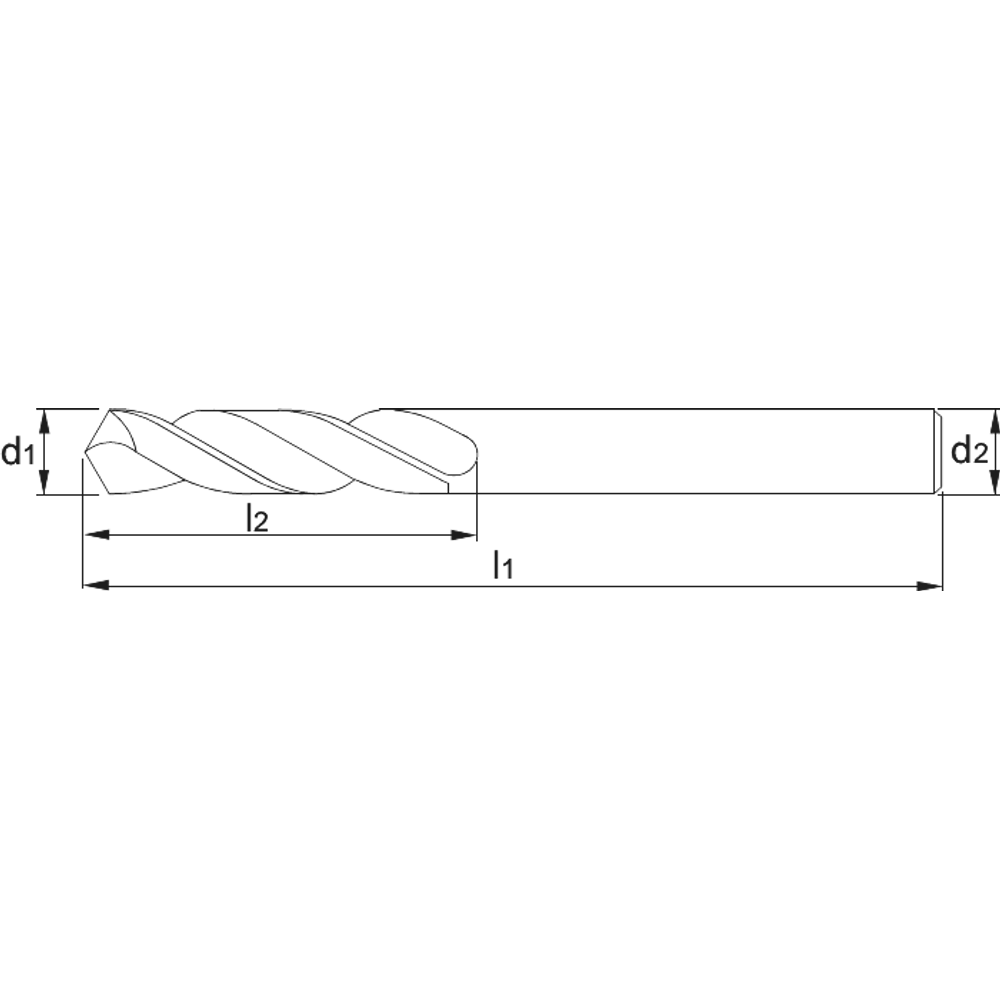

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 111670100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 111670150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 111670200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 111670220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 111670250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 111670280 | 2.8 mm | 16 mm | 46 mm | 2.8 mm |
| 111670300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 111670310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 111670320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 111670330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 111670340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 111670350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 111670360 | 3.6 mm | 20 mm | 52 mm | 3.6 mm |
| 111670370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 111670380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 111670390 | 3.9 mm | 22 mm | 55 mm | 3.9 mm |
| 111670400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 111670410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 111670420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 111670430 | 4.3 mm | 24 mm | 58 mm | 4.3 mm |
| 111670440 | 4.4 mm | 24 mm | 58 mm | 4.4 mm |
| 111670450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 111670460 | 4.6 mm | 24 mm | 58 mm | 4.6 mm |
| 111670470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 111670480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 111670490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 111670500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 111670510 | 5.1 mm | 26 mm | 62 mm | 5.1 mm |
| 111670520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 111670530 | 5.3 mm | 26 mm | 62 mm | 5.3 mm |
| 111670540 | 5.4 mm | 28 mm | 66 mm | 5.4 mm |
| 111670550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 111670560 | 5.6 mm | 28 mm | 66 mm | 5.6 mm |
| 111670570 | 5.7 mm | 28 mm | 66 mm | 5.7 mm |
| 111670580 | 5.8 mm | 28 mm | 66 mm | 5.8 mm |
| 111670590 | 5.9 mm | 28 mm | 66 mm | 5.9 mm |
| 111670600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 111670650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 111670680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 111670700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 111670750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 111670800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 111670850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 111670900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 111670950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 111671000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 111671020 | 10.2 mm | 43 mm | 89 mm | 10.2 mm |
| 111671050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 111671100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 111671150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 111671200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 111671250 | 12.5 mm | 51 mm | 102 mm | 12.5 mm |
| 111671300 | 13 mm | 51 mm | 102 mm | 13 mm |
