Phantom HSS-E Spiraalboor DIN 338 roestvaststaal De kobaltgelegeerde (HSS-E) RVS specialist voor het bewerken van Titaan, Titaanlegeringen, roestvaststaal, Hastelloy en Inconel. De speciale geometrie met een sterke spiraalhoek en verdikte kern zorgt voor maximale stabiliteit en een goede spaanafvoer in taaie materialen. Dankzij de 130° tophoek met kruisaanslijping centreert de boor uitstekend en is er minder voedingskracht nodig.
Maten en specificaties

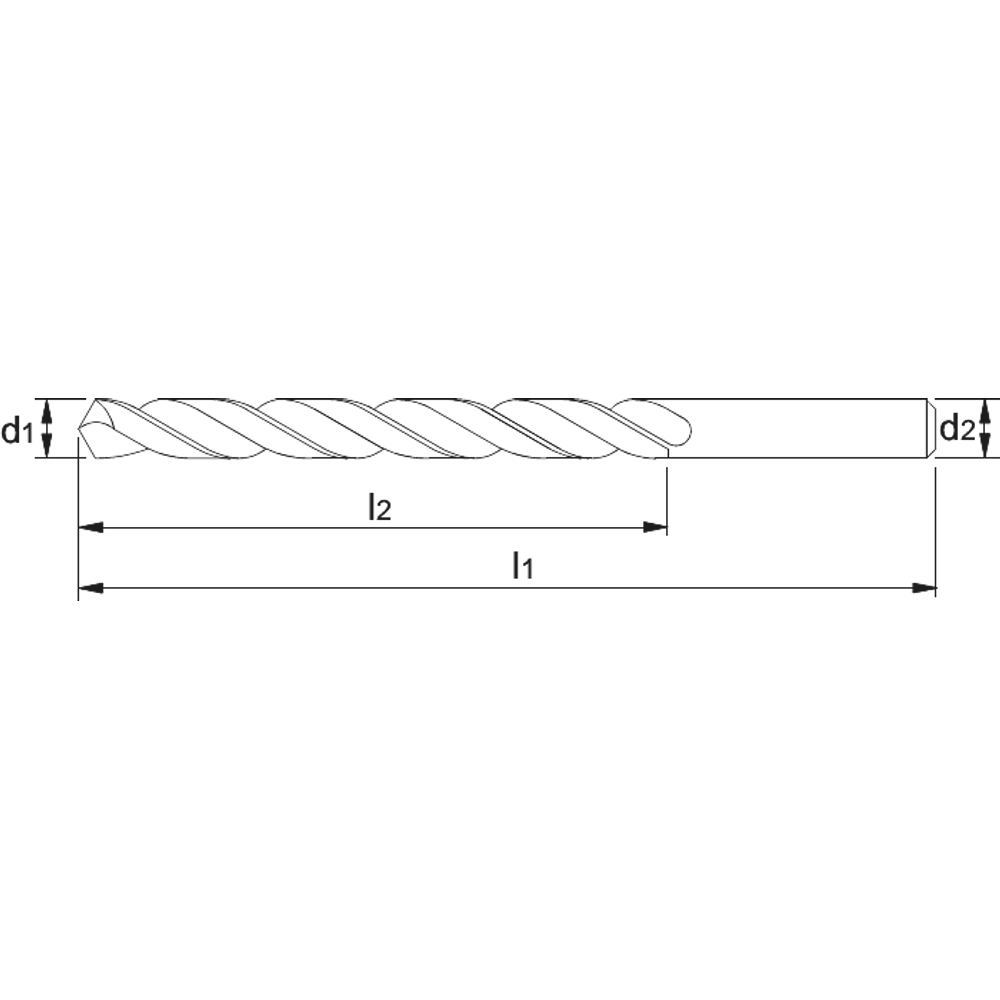

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 117600100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 117600110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 117600120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 117600130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 117600140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 117600150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 117600160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 117600170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 117600180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 117600190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 117600200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 117600210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 117600220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 117600230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 117600240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 117600250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 117600260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 117600270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 117600280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 117600290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 117600300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 117600310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 117600320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 117600330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 117600340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 117600350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 117600360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 117600370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 117600380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 117600390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 117600400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 117600410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 117600420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 117600430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 117600440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 117600450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 117600460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 117600470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 117600480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 117600490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 117600500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 117600510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 117600520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 117600530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 117600540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 117600550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 117600560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 117600570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 117600580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 117600590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 117600600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 117600610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 117600620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 117600630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 117600640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 117600650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 117600660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 117600670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 117600680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 117600690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 117600700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 117600710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 117600720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 117600730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 117600740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 117600750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 117600760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 117600770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 117600780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 117600790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 117600800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 117600810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 117600820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 117600830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 117600840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 117600850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 117600860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 117600870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 117600880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 117600890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 117600900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 117600910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 117600920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 117600930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 117600940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 117600950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 117600960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 117600970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 117600980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 117600990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 117601000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 117601020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 117601040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 117601050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 117601070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 117601100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 117601120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 117601150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 117601200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 117601210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 117601230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 117601250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 117601300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 117601350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 117601400 | 14 mm | 108 mm | 160 mm | 14 mm |
| 117601450 | 14.5 mm | 114 mm | 169 mm | 14.5 mm |
| 117601500 | 15 mm | 114 mm | 169 mm | 15 mm |
| 117601550 | 15.5 mm | 120 mm | 178 mm | 15.5 mm |
| 117601600 | 16 mm | 120 mm | 178 mm | 16 mm |
| 117601650 | 16.5 mm | 125 mm | 184 mm | 16.5 mm |
| 117601700 | 17 mm | 125 mm | 184 mm | 17 mm |
| 117601750 | 17.5 mm | 130 mm | 191 mm | 17.5 mm |
| 117601800 | 18 mm | 130 mm | 191 mm | 18 mm |
| 117601900 | 19 mm | 135 mm | 198 mm | 19 mm |
| 117602000 | 20 mm | 140 mm | 205 mm | 20 mm |
