Phantom HSS-E Spiraalboor DIN 338 TiAlN, roestvaststaal De kobaltgelegeerde (HSS-E) RVS specialist voor Titaan, RVS, Hastelloy en Inconel. De TiAlN-coating zorgt voor extreme hitte- en slijtagebestendigheid, waardoor u met deze boor meer gaten kunt boren. De geometrie met een sterke spiraalhoek en verdikte kern biedt maximale stabiliteit. De 130° tophoek met kruisaanslijping garandeert uitstekende centrering en vereist minder voedingskracht.

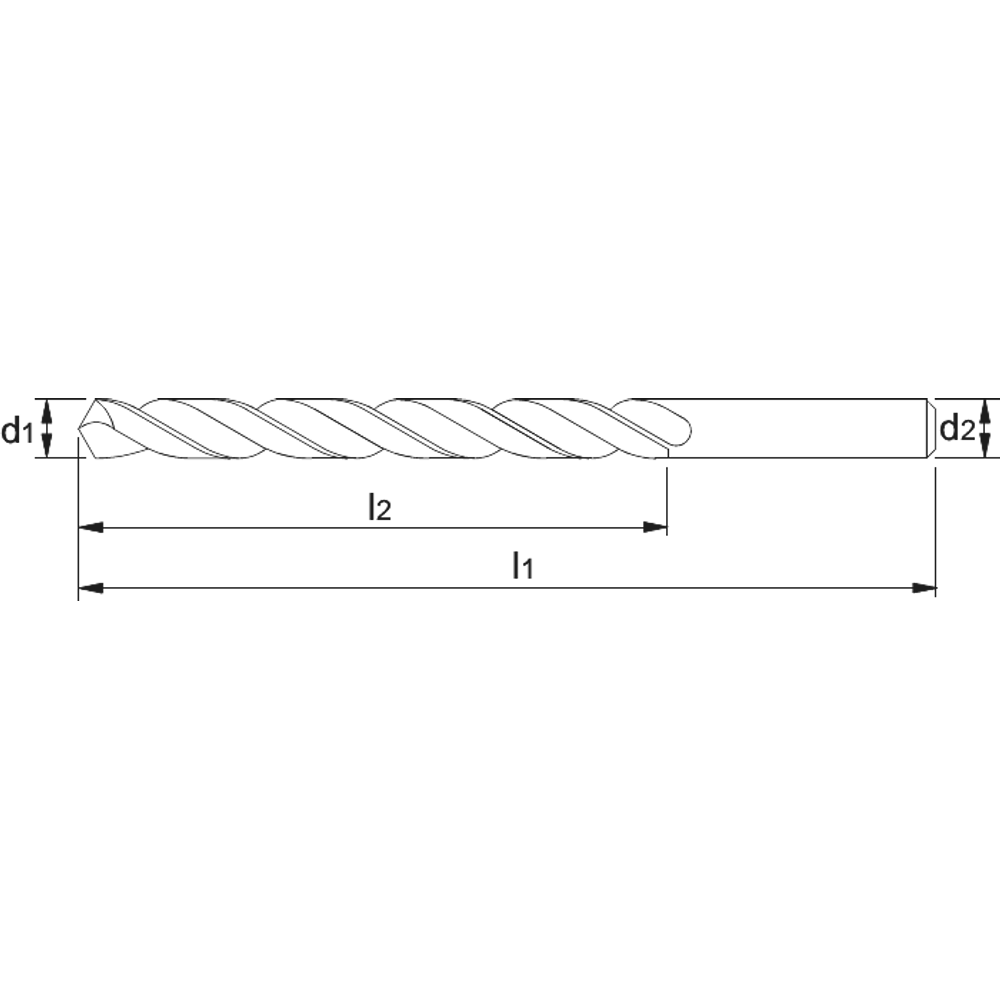

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 117640100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 117640110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 117640120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 117640130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 117640140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 117640150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 117640160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 117640170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 117640180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 117640190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 117640200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 117640210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 117640220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 117640230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 117640240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 117640250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 117640260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 117640270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 117640280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 117640290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 117640300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 117640310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 117640320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 117640330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 117640340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 117640350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 117640360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 117640370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 117640380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 117640390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 117640400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 117640410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 117640420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 117640430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 117640440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 117640450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 117640460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 117640470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 117640480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 117640490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 117640500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 117640510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 117640520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 117640530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 117640540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 117640550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 117640560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 117640570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 117640580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 117640590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 117640600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 117640610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 117640620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 117640630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 117640640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 117640650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 117640660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 117640670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 117640680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 117640690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 117640700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 117640710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 117640720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 117640730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 117640740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 117640750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 117640760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 117640770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 117640780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 117640790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 117640800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 117640810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 117640820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 117640830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 117640840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 117640850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 117640860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 117640870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 117640880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 117640890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 117640900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 117640910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 117640920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 117640930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 117640940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 117640950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 117640960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 117640970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 117640980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 117640990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 117641000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 117641020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 117641030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 117641050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 117641100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 117641150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 117641200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 117641250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 117641300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 117641350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 117641400 | 14 mm | 108 mm | 160 mm | 14 mm |
