De Phantom HSS-E Spiraalboor DIN 338 Type TS is speciaal ontwikkeld voor het boren van diepe gaten. De unieke, parabolisch geslepen spaankamer (Type TS) zorgt voor een optimale en probleemloze spaanafvoer, zelfs bij grotere boordieptes. De kruisaanslijping en 130° tophoek garanderen een precieze start zonder voorcentreren. De genitreerde geleidingen geven de boor extra slijtageweerstand en een lange standtijd.Korte HSS-E spiraalboor met sterke parabool spiraal. Voor het probleemloos boren van diepe gaten in hoog trekvaste staalsoorten.
Maten en specificaties

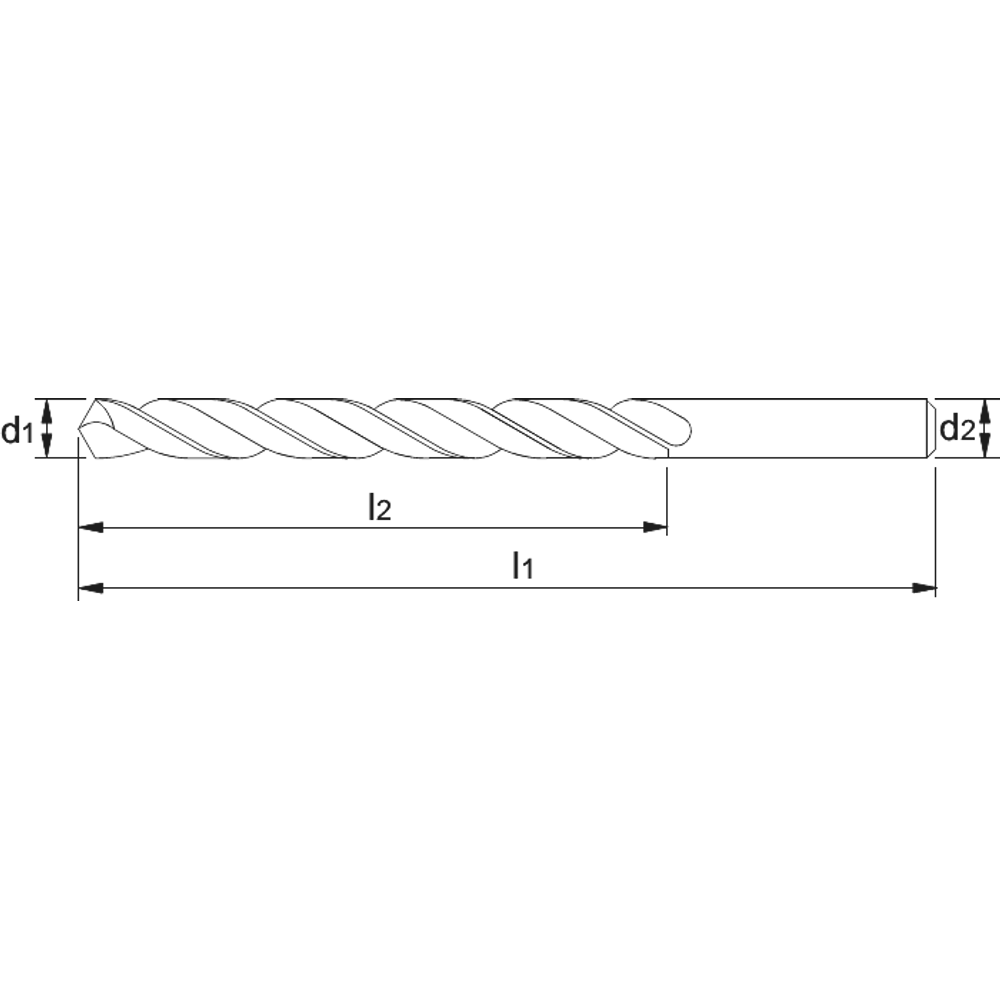

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 117700200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 117700250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 117700300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 117700310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 117700320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 117700330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 117700340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 117700350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 117700360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 117700370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 117700380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 117700390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 117700400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 117700410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 117700420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 117700430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 117700440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 117700450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 117700460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 117700470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 117700480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 117700490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 117700500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 117700510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 117700520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 117700530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 117700540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 117700550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 117700560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 117700570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 117700580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 117700590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 117700600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 117700610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 117700620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 117700630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 117700640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 117700650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 117700660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 117700670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 117700680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 117700690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 117700700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 117700750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 117700780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 117700800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 117700850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 117700870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 117700880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 117700900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 117700950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 117700980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 117701000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 117701020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 117701050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 117701100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 117701150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 117701200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 117701250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 117701300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 117701400 | 14 mm | 108 mm | 160 mm | 14 mm |
