Phantom HSS Handruimer DIN 206-B H7, inch-maten
Phantom HSS Handruimer DIN 206-B H7, inch-maten
Phantom HSS Handruimer DIN 206-B H7, inch-maten
Phantom HSS Handruimer DIN 206-B H7, inch-matenPhantom HSS Handruimer DIN 206-B H7, inch-matenPhantom HSS Handruimer DIN 206-B H7, inch-maten

DIN 206-B, cilindrische schacht, inch-maten, spiraalgroeven


Maten en specificaties

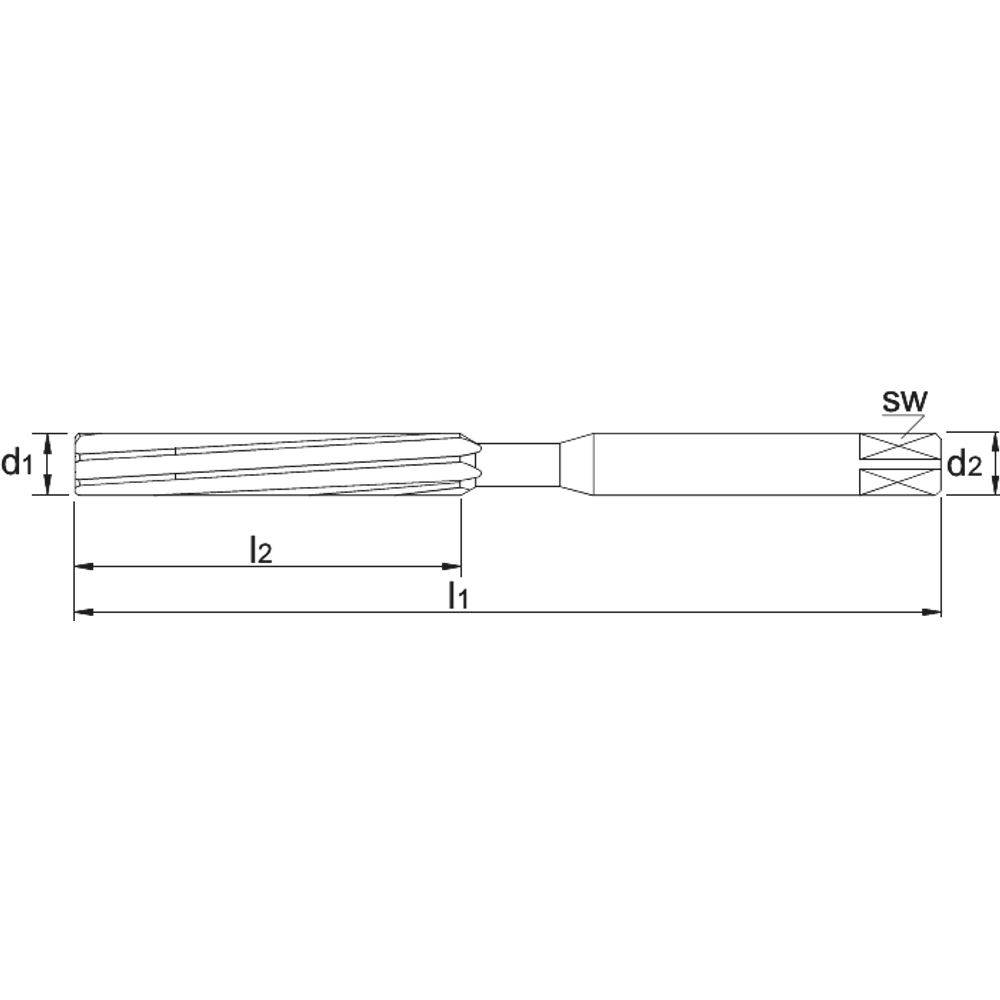

Artikelnummer d1 d1 l2 l1 d2
511700317 3.175 mm 1/8 inch 33 mm 66 mm 3.17 mm
511700476 4.762 mm 3/16 inch 44 mm 87 mm 4.76 mm
511700635 6.35 mm 1/4 inch 50 mm 100 mm 6.35 mm
511700794 7.937 mm 5/16 inch 58 mm 115 mm 7.94 mm
511700952 9.525 mm 3/8 inch 66 mm 133 mm 9.52 mm
511701032 10.319 mm 13/32 inch 66 mm 133 mm 10.32 mm
511701111 11.112 mm 7/16 inch 71 mm 142 mm 11.11 mm
511701270 12.7 mm 1/2 inch 76 mm 152 mm 12.7 mm
511701429 14.287 mm 9/16 inch 81 mm 163 mm 14.29 mm
511701588 15.875 mm 5/8 inch 87 mm 175 mm 15.88 mm
511701746 17.462 mm 11/16 inch 100 mm 201 mm 17.46 mm
511701905 19.05 mm 3/4 inch 100 mm 201 mm 19.05 mm
511702063 20.637 mm 13/16 inch 100 mm 201 mm 20.63 mm
511702222 22.225 mm 7/8 inch 107 mm 215 mm 22.22 mm
511702381 23.812 mm 15/16 inch 115 mm 231 mm 23.81 mm
511702540 25.4 mm 1 inch 115 mm 231 mm 25.4 mm

Phantom HSS Handruimer DIN 206-B H7, inch-maten

Aanbieding
PhantomArtikelnummer511700317
€82,05 €102,55
