passing H7, voorboren tot 1 mm kleiner dan de gewenste diameter, de ruimer centreert en voedt zichzelf, zodat ook onder moeilijke omstandigheden gemakkelijk H7 geruimd kan worden.LET OP! Dit product is uitlopend.

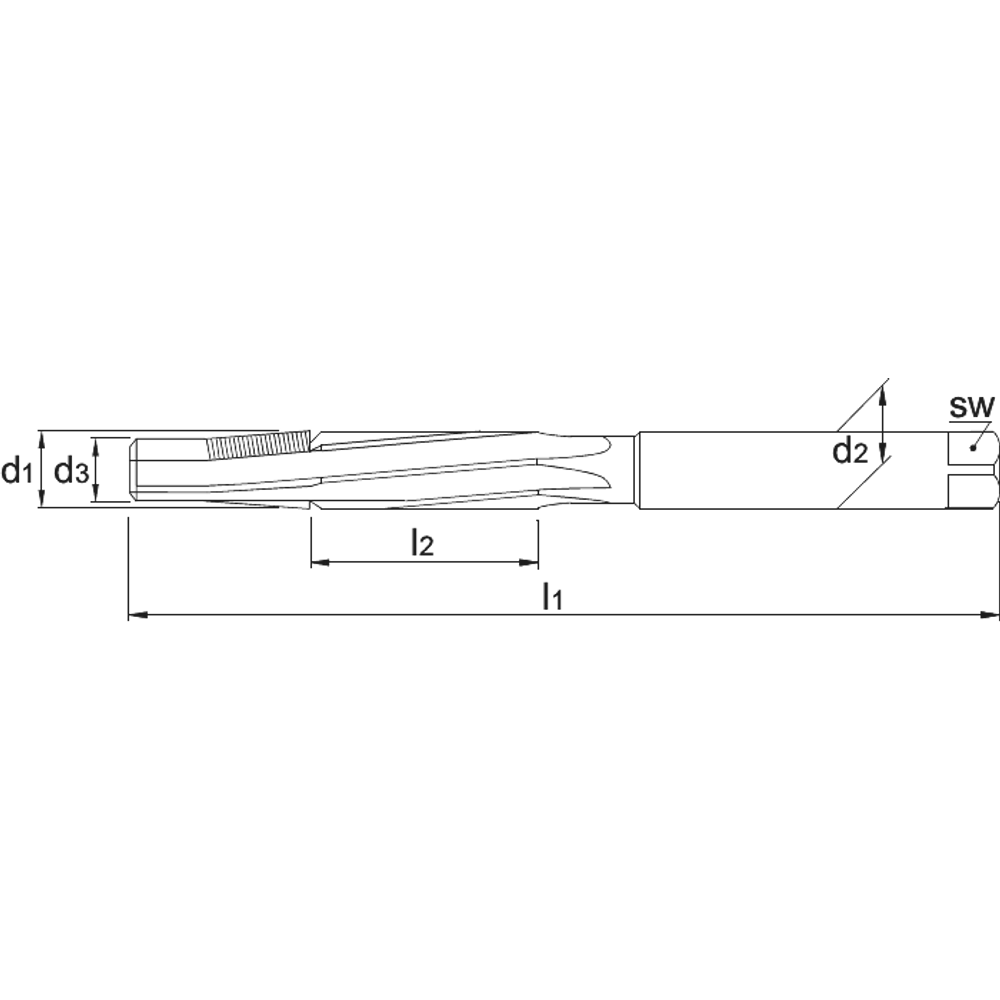

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 | sw |
|---|---|---|---|---|---|
| 511800550 | 5.5 mm | 14 mm | 92 mm | 5 mm | 3.6 mm |
| 511800650 | 6.5 mm | 16 mm | 110 mm | 6 mm | 4.5 mm |
| 511800750 | 7.5 mm | 18 mm | 120 mm | 7 mm | 5.2 mm |
| 511800850 | 8.5 mm | 16 mm | 130 mm | 8 mm | 6 mm |
| 511800950 | 9.5 mm | 18 mm | 140 mm | 9 mm | 6.5 mm |
| 511801100 | 11 mm | 35 mm | 110 mm | 11 mm | 8.9 mm |
| 511801150 | 11.5 mm | 35 mm | 110 mm | 11.5 mm | 8.9 mm |
| 511801200 | 12 mm | 50 mm | 140 mm | 12 mm | 9 mm |
| 511801350 | 13.5 mm | 50 mm | 140 mm | 13.5 mm | 9 mm |
| 511801450 | 14.5 mm | 60 mm | 150 mm | 14.5 mm | 11 mm |
| 511802000 | 20 mm | 70 mm | 180 mm | 18 mm | 15 mm |
| 511802700 | 27 mm | 80 mm | 200 mm | 20 mm | 16 mm |
| 511803450 | 34.5 mm | 90 mm | 230 mm | 28 mm | 18 mm |
| 511803550 | 35.5 mm | 90 mm | 230 mm | 28 mm | 22 mm |
| 511803650 | 36.5 mm | 90 mm | 230 mm | 28 mm | 22 mm |
| 511803800 | 38 mm | 90 mm | 240 mm | 28 mm | 22 mm |
