DIN 208, Morse conus opname, passing H7
Maten en specificaties

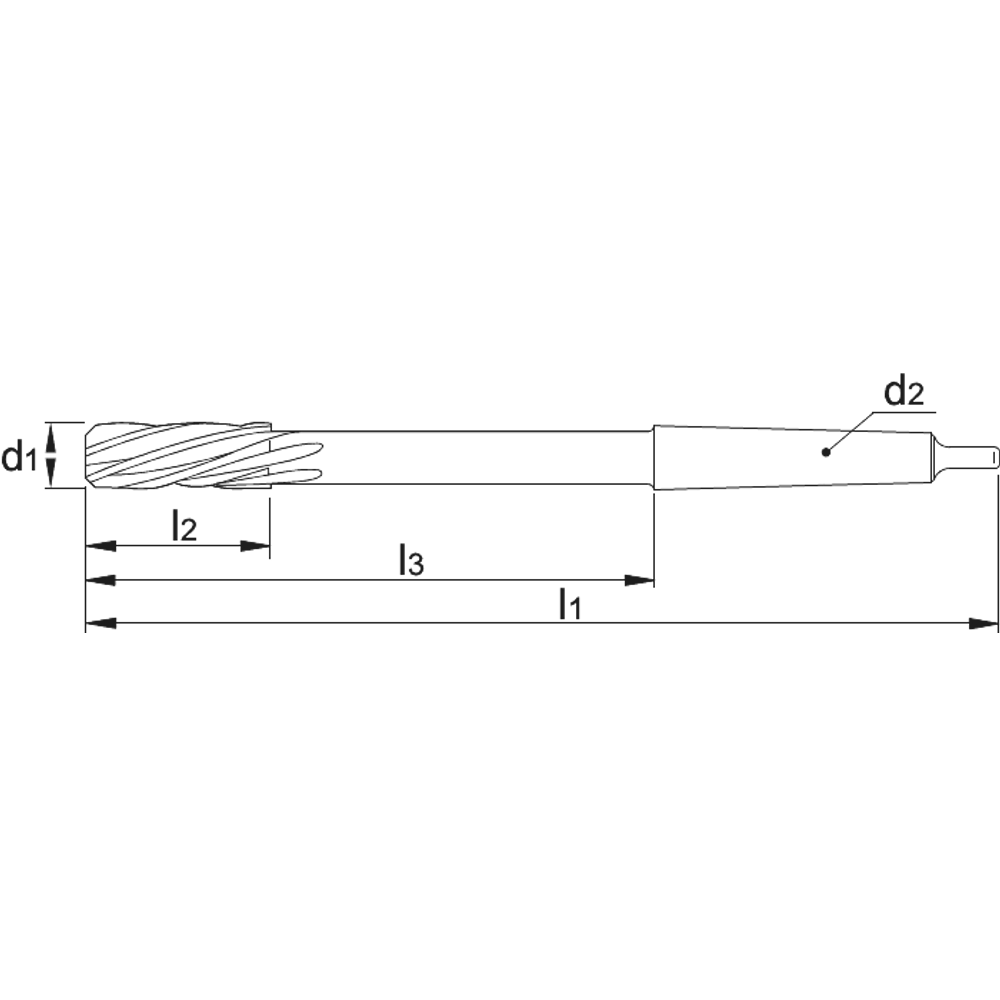

| Artikelnummer | d1 | l2 | l3 | l1 |
|---|---|---|---|---|
| 515000500 | 5 mm | 26 mm | 67 mm | 133 mm |
| 515000600 | 6 mm | 28 mm | 72 mm | 138 mm |
| 515000700 | 7 mm | 31 mm | 84 mm | 150 mm |
| 515000800 | 8 mm | 33 mm | 90 mm | 156 mm |
| 515000900 | 9 mm | 36 mm | 96 mm | 162 mm |
| 515001000 | 10 mm | 38 mm | 102 mm | 168 mm |
| 515001100 | 11 mm | 41 mm | 109 mm | 175 mm |
| 515001200 | 12 mm | 44 mm | 116 mm | 182 mm |
| 515001300 | 13 mm | 44 mm | 116 mm | 182 mm |
| 515001400 | 14 mm | 47 mm | 123 mm | 189 mm |
| 515001500 | 15 mm | 50 mm | 124 mm | 204 mm |
| 515001600 | 16 mm | 52 mm | 130 mm | 210 mm |
| 515001700 | 17 mm | 54 mm | 134 mm | 214 mm |
| 515001800 | 18 mm | 56 mm | 139 mm | 219 mm |
| 515001900 | 19 mm | 58 mm | 143 mm | 223 mm |
| 515002000 | 20 mm | 60 mm | 148 mm | 228 mm |
