DIN 212, cilindrische schacht, spiraalgroeven

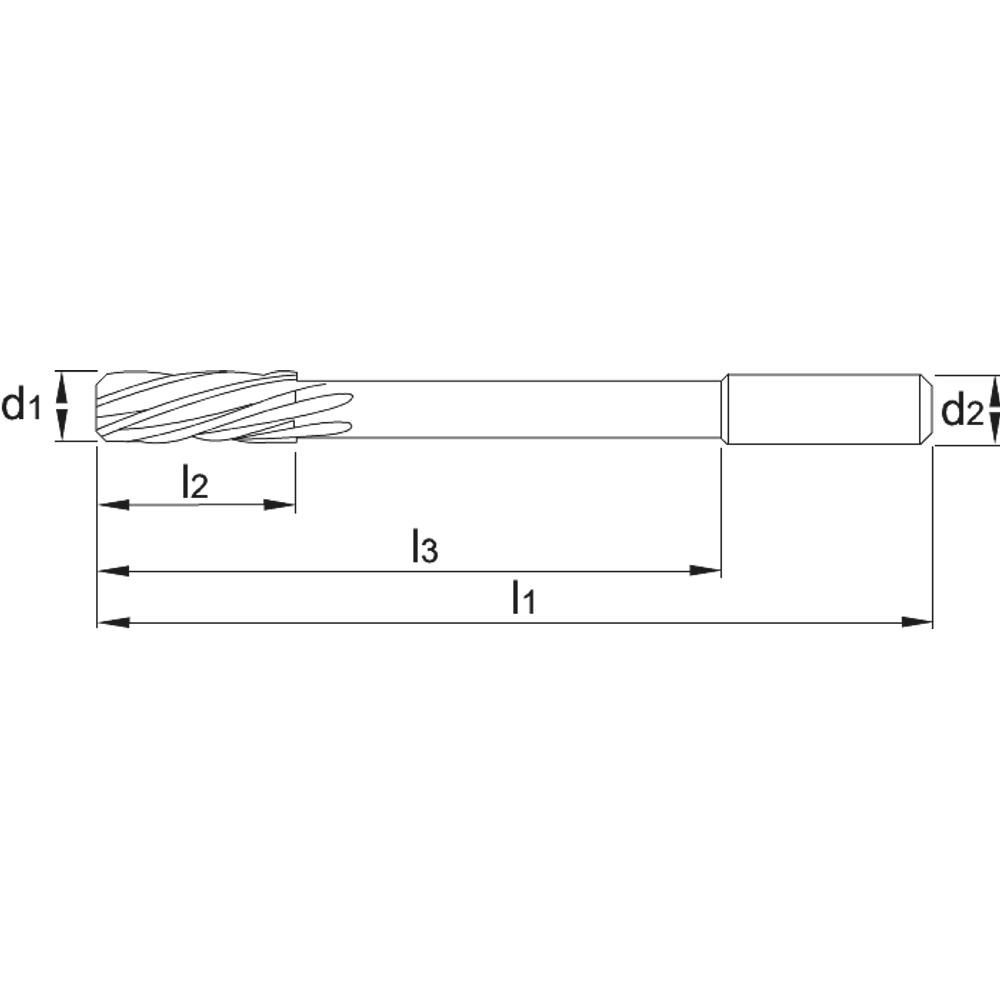

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 | d2 |
|---|---|---|---|---|---|
| 513100400 | 4 mm | 19 mm | 47 mm | 75 mm | 4 mm |
| 513100450 | 4.5 mm | 21 mm | 52 mm | 80 mm | 4.5 mm |
| 513100500 | 5 mm | 23 mm | 58 mm | 86 mm | 5 mm |
| 513100550 | 5.5 mm | 26 mm | 58 mm | 93 mm | 5.6 mm |
| 513100600 | 6 mm | 26 mm | 58 mm | 93 mm | 5.6 mm |
| 513100650 | 6.5 mm | 28 mm | 65 mm | 101 mm | 6.3 mm |
| 513100700 | 7 mm | 31 mm | 73 mm | 109 mm | 7.1 mm |
| 513100800 | 8 mm | 33 mm | 81 mm | 117 mm | 8 mm |
| 513100900 | 9 mm | 36 mm | 85 mm | 125 mm | 9 mm |
| 513101000 | 10 mm | 38 mm | 93 mm | 133 mm | 10 mm |
| 513101100 | 11 mm | 41 mm | 102 mm | 142 mm | 10 mm |
| 513101200 | 12 mm | 44 mm | 111 mm | 151 mm | 10 mm |
| 513101300 | 13 mm | 44 mm | 111 mm | 151 mm | 10 mm |
| 513101400 | 14 mm | 47 mm | 117 mm | 160 mm | 12.5 mm |
| 513101500 | 15 mm | 50 mm | 117 mm | 162 mm | 12.5 mm |
| 513101600 | 16 mm | 52 mm | 125 mm | 170 mm | 12.5 mm |
