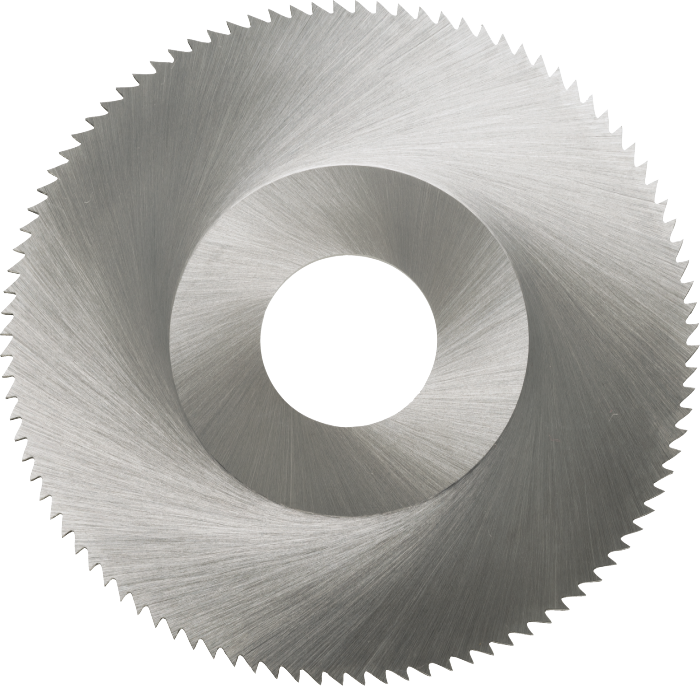

DIN 1837-A, tandvorm A (rechte tand)

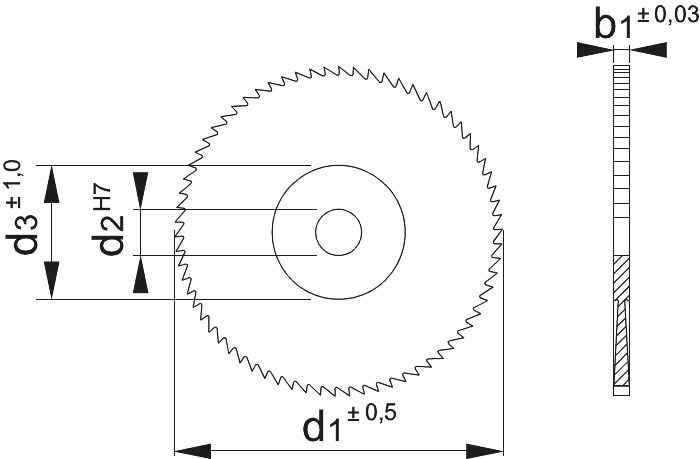

Maten en specificaties
| Artikelnummer | d1 | b1 | d2 | d3 | t |
|---|---|---|---|---|---|
| 632000303 | 32 mm | 0.3 mm | 8 mm | 14 mm | 1‚25 mm |
| 632000304 | 32 mm | 0.4 mm | 8 mm | 14 mm | 1‚25 mm |
| 632000305 | 32 mm | 0.5 mm | 8 mm | 14 mm | 1‚25 mm |
| 632000306 | 32 mm | 0.6 mm | 8 mm | 14 mm | 1‚5 mm |
| 632000308 | 32 mm | 0.8 mm | 8 mm | 14 mm | 1‚5 mm |
| 632000310 | 32 mm | 1 mm | 8 mm | 14 mm | 1‚5 mm |
| 632000312 | 32 mm | 1.2 mm | 8 mm | 14 mm | 2 mm |
| 632000315 | 32 mm | 1.5 mm | 8 mm | 14 mm | 2 mm |
| 632000316 | 32 mm | 1.6 mm | 8 mm | 14 mm | 2 mm |
| 632000320 | 32 mm | 2 mm | 8 mm | 14 mm | 2 mm |
| 632000358 | 35 mm | 0.8 mm | 13 mm | - | 1‚25 mm |
| 632000403 | 40 mm | 0.3 mm | 10 mm | 18 mm | 1‚25 mm |
| 632000404 | 40 mm | 0.4 mm | 10 mm | 18 mm | 1‚25 mm |
| 632000405 | 40 mm | 0.5 mm | 10 mm | 18 mm | 1‚5 mm |
| 632000406 | 40 mm | 0.6 mm | 10 mm | 18 mm | 1‚5 mm |
| 632000408 | 40 mm | 0.8 mm | 10 mm | 18 mm | 1‚5 mm |
| 632000410 | 40 mm | 1 mm | 10 mm | 18 mm | 2 mm |
| 632000412 | 40 mm | 1.2 mm | 10 mm | 18 mm | 2 mm |
| 632000415 | 40 mm | 1.5 mm | 10 mm | 18 mm | 2 mm |
| 632000416 | 40 mm | 1.6 mm | 10 mm | 18 mm | 2 mm |
| 632000420 | 40 mm | 2 mm | 10 mm | 18 mm | 2‚5 mm |
| 632000425 | 40 mm | 2.5 mm | 10 mm | 18 mm | 2‚5 mm |
| 632000430 | 40 mm | 3 mm | 10 mm | 18 mm | 2‚5 mm |
| 632000503 | 50 mm | 0.3 mm | 13 mm | 25 mm | 1‚25 mm |
| 632000504 | 50 mm | 0.4 mm | 13 mm | 25 mm | 1‚5 mm |
| 632000505 | 50 mm | 0.5 mm | 13 mm | 25 mm | 1‚5 mm |
| 632000506 | 50 mm | 0.6 mm | 13 mm | 25 mm | 1‚5 mm |
| 632000508 | 50 mm | 0.8 mm | 13 mm | 25 mm | 2 mm |
| 632000510 | 50 mm | 1 mm | 13 mm | 25 mm | 2 mm |
| 632000512 | 50 mm | 1.2 mm | 13 mm | 25 mm | 2 mm |
| 632000515 | 50 mm | 1.5 mm | 13 mm | 25 mm | 2‚5 mm |
| 632000516 | 50 mm | 1.6 mm | 13 mm | 25 mm | 2‚5 mm |
| 632000520 | 50 mm | 2 mm | 13 mm | 25 mm | 2‚5 mm |
| 632000525 | 50 mm | 2.5 mm | 13 mm | 25 mm | 2‚5 mm |
| 632000530 | 50 mm | 3 mm | 13 mm | 25 mm | 3‚25 mm |
| 632000540 | 50 mm | 4 mm | 13 mm | 25 mm | 3‚25 mm |
| 632000603 | 63 mm | 0.3 mm | 16 mm | 32 mm | 1‚5 mm |
| 632000604 | 63 mm | 0.4 mm | 16 mm | 32 mm | 1‚5 mm |
| 632000605 | 63 mm | 0.5 mm | 16 mm | 32 mm | 1‚5 mm |
| 632000606 | 63 mm | 0.6 mm | 16 mm | 32 mm | 2 mm |
| 632000608 | 63 mm | 0.8 mm | 16 mm | 32 mm | 2 mm |
| 632000610 | 63 mm | 1 mm | 16 mm | 32 mm | 2 mm |
| 632000612 | 63 mm | 1.2 mm | 16 mm | 32 mm | 2‚5 mm |
| 632000615 | 63 mm | 1.5 mm | 16 mm | 32 mm | 2‚5 mm |
| 632000616 | 63 mm | 1.6 mm | 16 mm | 32 mm | 2‚5 mm |
| 632000620 | 63 mm | 2 mm | 16 mm | 32 mm | 2‚5 mm |
| 632000625 | 63 mm | 2.5 mm | 16 mm | 32 mm | 3 mm |
| 632000630 | 63 mm | 3 mm | 16 mm | 32 mm | 3 mm |
| 632000640 | 63 mm | 4 mm | 16 mm | 32 mm | 3 mm |
| 632000650 | 63 mm | 5 mm | 16 mm | 32 mm | 4 mm |
| 632000660 | 63 mm | 6 mm | 16 mm | 32 mm | 4 mm |
| 632000803 | 80 mm | 0.3 mm | 22 mm | 36 mm | 1‚5 mm |
| 632000804 | 80 mm | 0.4 mm | 22 mm | 36 mm | 1‚5 mm |
| 632000805 | 80 mm | 0.5 mm | 22 mm | 36 mm | 2 mm |
| 632000806 | 80 mm | 0.6 mm | 22 mm | 36 mm | 2 mm |
| 632000808 | 80 mm | 0.8 mm | 22 mm | 36 mm | 2 mm |
| 632000810 | 80 mm | 1 mm | 22 mm | 36 mm | 2‚5 mm |
| 632000812 | 80 mm | 1.2 mm | 22 mm | 36 mm | 2‚5 mm |
| 632000815 | 80 mm | 1.5 mm | 22 mm | 36 mm | 2‚5 mm |
| 632000816 | 80 mm | 1.6 mm | 22 mm | 36 mm | 2‚5 mm |
| 632000820 | 80 mm | 2 mm | 22 mm | 36 mm | 3‚25 mm |
| 632000825 | 80 mm | 2.5 mm | 22 mm | 36 mm | 3‚25 mm |
| 632000830 | 80 mm | 3 mm | 22 mm | 36 mm | 3‚25 mm |
| 632000840 | 80 mm | 4 mm | 22 mm | 36 mm | 4 mm |
| 632000850 | 80 mm | 5 mm | 22 mm | 36 mm | 4 mm |
| 632000860 | 80 mm | 6 mm | 22 mm | 36 mm | 4 mm |
| 632001005 | 100 mm | 0.5 mm | 22 mm | 40 mm | 2 mm |
| 632001006 | 100 mm | 0.6 mm | 22 mm | 40 mm | 2 mm |
| 632001008 | 100 mm | 0.8 mm | 22 mm | 40 mm | 2‚5 mm |
| 632001010 | 100 mm | 1 mm | 22 mm | 40 mm | 2‚5 mm |
| 632001012 | 100 mm | 1.2 mm | 22 mm | 40 mm | 2‚5 mm |
| 632001015 | 100 mm | 1.5 mm | 22 mm | 40 mm | 3‚25 mm |
| 632001016 | 100 mm | 1.6 mm | 22 mm | 40 mm | 3‚25 mm |
| 632001020 | 100 mm | 2 mm | 22 mm | 40 mm | 3‚25 mm |
| 632001025 | 100 mm | 2.5 mm | 22 mm | 40 mm | 3‚25 mm |
| 632001030 | 100 mm | 3 mm | 22 mm | 40 mm | 4 mm |
| 632001040 | 100 mm | 4 mm | 22 mm | 40 mm | 4 mm |
| 632001050 | 100 mm | 5 mm | 22 mm | 40 mm | 4 mm |
| 632001060 | 100 mm | 6 mm | 22 mm | 40 mm | 5 mm |
| 632001210 | 125 mm | 1 mm | 22 mm | 40 mm | 2‚5 mm |
| 632001212 | 125 mm | 1.2 mm | 22 mm | 40 mm | 3 mm |
| 632001215 | 125 mm | 1.5 mm | 22 mm | 40 mm | 3 mm |
| 632001216 | 125 mm | 1.6 mm | 22 mm | 40 mm | 3 mm |
| 632001220 | 125 mm | 2 mm | 22 mm | 40 mm | 3 mm |
| 632001225 | 125 mm | 2.5 mm | 22 mm | 40 mm | 4 mm |
| 632001230 | 125 mm | 3 mm | 22 mm | 40 mm | 4 mm |
| 632001240 | 125 mm | 4 mm | 22 mm | 40 mm | 4 mm |
| 632001250 | 125 mm | 5 mm | 22 mm | 40 mm | 5 mm |
| 632001260 | 125 mm | 6 mm | 22 mm | 40 mm | 5 mm |
| 632001610 | 160 mm | 1 mm | 32 mm | 63 mm | 3‚25 mm |
| 632001612 | 160 mm | 1.2 mm | 32 mm | 63 mm | 3‚25 mm |
| 632001615 | 160 mm | 1.5 mm | 32 mm | 63 mm | 3‚25 mm |
| 632001616 | 160 mm | 1.6 mm | 32 mm | 63 mm | 3‚25 mm |
| 632001620 | 160 mm | 2 mm | 32 mm | 63 mm | 4 mm |
| 632001625 | 160 mm | 2.5 mm | 32 mm | 63 mm | 4 mm |
| 632001630 | 160 mm | 3 mm | 32 mm | 63 mm | 4 mm |
| 632001640 | 160 mm | 4 mm | 32 mm | 63 mm | 5 mm |
| 632001650 | 160 mm | 5 mm | 32 mm | 63 mm | 5 mm |
| 632001660 | 160 mm | 6 mm | 32 mm | 63 mm | 5 mm |
| 632002010 | 200 mm | 1 mm | 32 mm | 63 mm | 3‚25 mm |
| 632002012 | 200 mm | 1.2 mm | 32 mm | 63 mm | 3‚25 mm |
| 632002015 | 200 mm | 1.5 mm | 32 mm | 63 mm | 4 mm |
| 632002016 | 200 mm | 1.6 mm | 32 mm | 63 mm | 4 mm |
| 632002020 | 200 mm | 2 mm | 32 mm | 63 mm | 4 mm |
| 632002025 | 200 mm | 2.5 mm | 32 mm | 63 mm | 4 mm |
| 632002030 | 200 mm | 3 mm | 32 mm | 63 mm | 5 mm |
| 632002040 | 200 mm | 4 mm | 32 mm | 63 mm | 5 mm |
| 632002050 | 200 mm | 5 mm | 32 mm | 63 mm | 5 mm |
| 632002060 | 200 mm | 6 mm | 32 mm | 63 mm | 6‚25 mm |
| 632002520 | 250 mm | 2 mm | 32 mm | 63 mm | 4 mm |
| 632002525 | 250 mm | 2.5 mm | 32 mm | 63 mm | 5 mm |
| 632002530 | 250 mm | 3 mm | 32 mm | 63 mm | 5 mm |
| 632002540 | 250 mm | 4 mm | 32 mm | 63 mm | 5 mm |
| 632002550 | 250 mm | 5 mm | 32 mm | 63 mm | 6‚25 mm |
| 632002560 | 250 mm | 6 mm | 32 mm | 63 mm | 6‚25 mm |
| 632003125 | 315 mm | 2.5 mm | 40 mm | 80 mm | 5 mm |
| 632003130 | 315 mm | 3 mm | 40 mm | 80 mm | 5 mm |
| 632003140 | 315 mm | 4 mm | 40 mm | 80 mm | 6‚25 mm |
| 632003150 | 315 mm | 5 mm | 40 mm | 80 mm | 6‚25 mm |
| 632003160 | 315 mm | 6 mm | 40 mm | 80 mm | 6‚25 mm |
