DIN 204, cilindrische schacht, spiraalgroeven, voor handgebruik

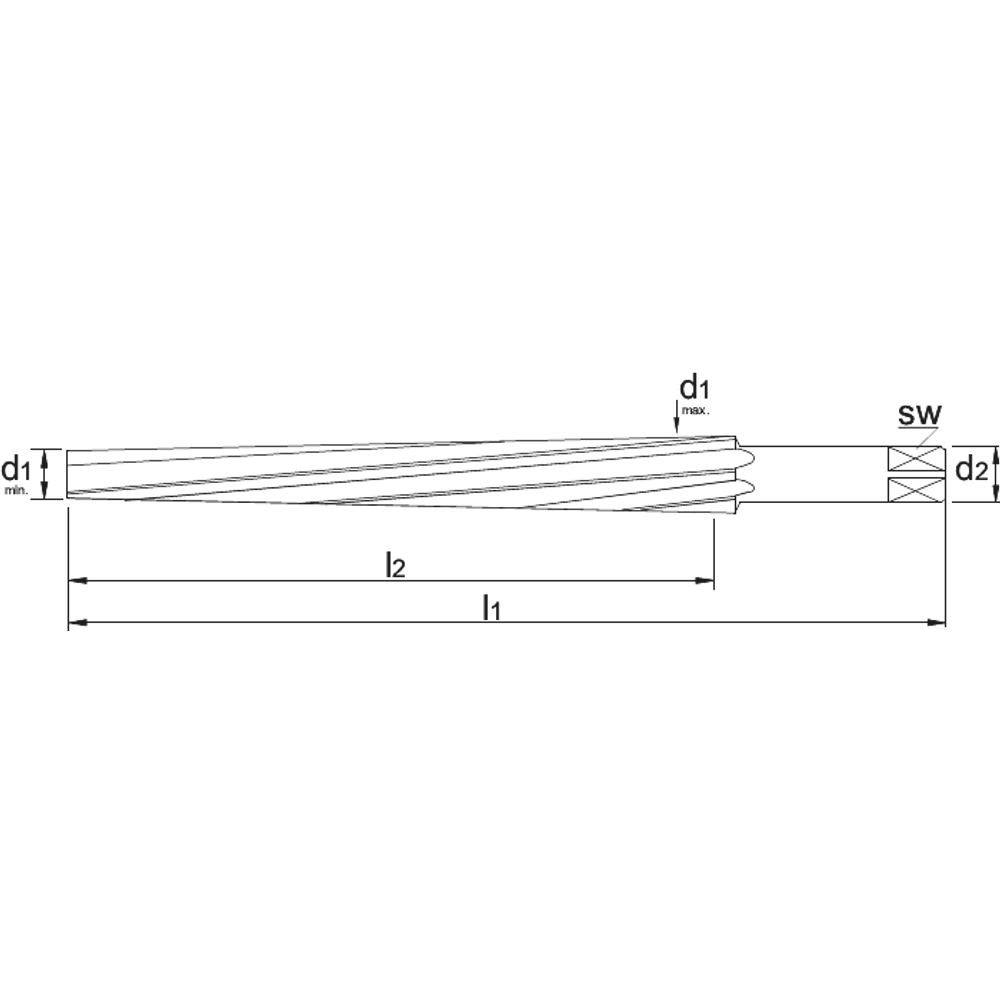

Maten en specificaties
| Artikelnummer | d1 | d1 min | d1 max | l2 | l1 |
|---|---|---|---|---|---|
| 517600000 | MK 0 | 6.547 mm | 9.722 mm | 61 mm | 93 mm |
| 517600100 | MK 1 | 9.571 mm | 12.863 mm | 66 mm | 102 mm |
| 517600200 | MK 2 | 14.733 mm | 18.679 mm | 79 mm | 121 mm |
| 517600300 | MK 3 | 20.01 mm | 24.829 mm | 96 mm | 146 mm |
| 517600400 | MK 4 | 26.229 mm | 32.41 mm | 119 mm | 179 mm |
| 517600500 | MK 5 | 37.873 mm | 45.767 mm | 150 mm | 222 mm |
| 517600600 | MK 6 | 54.172 mm | 65.016 mm | 208 mm | 300 mm |
