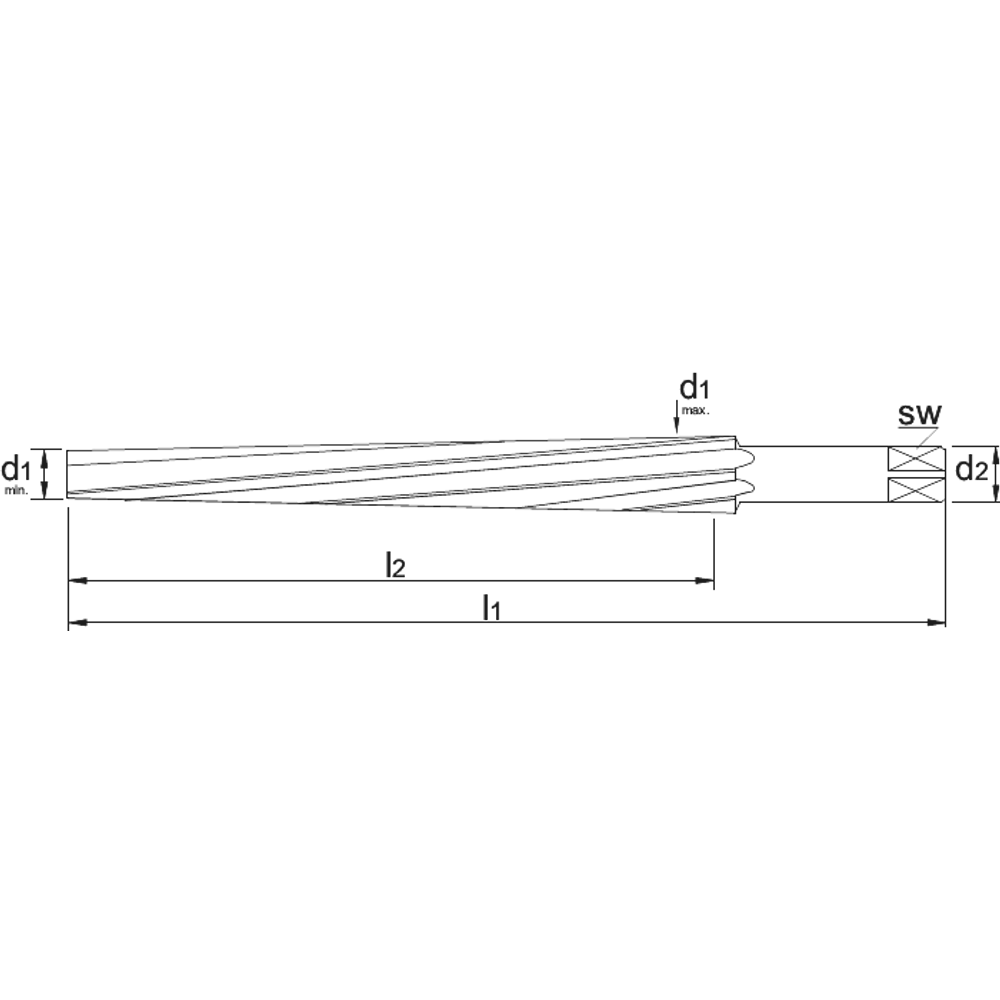

Phantom HSS Pengatruimer DIN 9-B coniciteit 1:50

DIN 9-B, cilindrische schacht, spiraalgroeven, voor handgebruik

Artikelnummer	d1	d1 min	d1 max	l2	l1
517300100	1	0.9 mm	1.46 mm	28 mm	46 mm
517300150	1‚5	1.4 mm	2.14 mm	37 mm	57 mm
517300200	2	1.9 mm	2.86 mm	48 mm	68 mm
517300250	2‚5	2.4 mm	3.36 mm	48 mm	68 mm
517300300	3	2.9 mm	4.06 mm	58 mm	80 mm
517300400	4	3.9 mm	5.26 mm	68 mm	93 mm
517300500	5	4.9 mm	6.36 mm	73 mm	100 mm
517300600	6	5.9 mm	8 mm	105 mm	135 mm
517300700	7	6.9 mm	9 mm	105 mm	140 mm
517300800	8	7.9 mm	10.8 mm	145 mm	180 mm
517300900	9	8.9 mm	12.1 mm	160 mm	195 mm
517301000	10	9.9 mm	13.4 mm	175 mm	215 mm
517301200	12	11.8 mm	16 mm	210 mm	255 mm
517301400	14	13.8 mm	18 mm	210 mm	260 mm
517301600	16	15.8 mm	20.4 mm	230 mm	280 mm
517302000	20	19.8 mm	24.8 mm	250 mm	310 mm
