Deze Phantom HSS spiraalboor conform DIN 338 is een hoogwaardige, geslepen standaardboor met cilindrische schacht. De precisiegeslepen kruisaanslijping vanaf 1,6 mm garandeert een exacte start zonder voorcentreren. Kenmerkend is de TiN-coating (Titanium Nitride) op de boorpunt; deze verhoogt de oppervlaktehardheid significant, wat leidt tot een langere standtijd en dus meer geboorde gaten per boor. Met een tophoek van 118° voor universele inzetbaarheid.

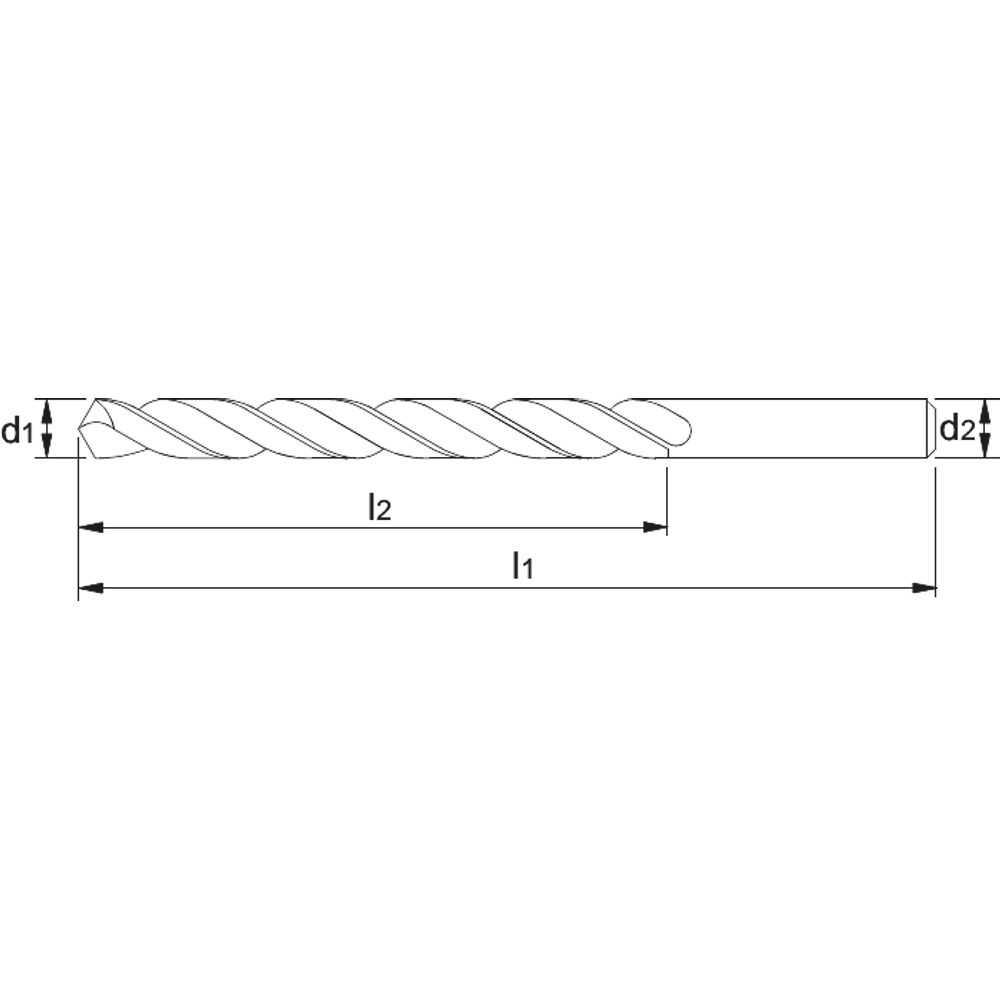

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114510100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114510110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114510120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114510130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114510140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114510150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114510160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114510170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114510180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114510190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114510200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114510210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114510220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114510230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114510240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114510250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114510260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114510270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114510280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114510290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114510300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114510310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114510320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114510330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114510340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114510350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114510360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114510370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114510380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114510390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114510400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114510410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114510420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114510430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114510440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114510450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114510460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114510470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114510480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114510490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114510500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114510510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114510520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114510530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114510540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114510550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114510560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114510570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114510580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114510590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114510600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114510610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114510620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114510630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114510640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114510650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114510660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114510670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114510680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114510690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114510700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114510710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114510720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114510730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114510740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114510750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114510760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114510770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114510780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114510790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114510800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114510810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114510820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114510830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114510840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114510850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114510860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114510870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114510880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114510890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114510900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114510910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114510920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114510930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114510940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114510950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114510960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114510970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114510980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114510990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114511000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114511010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114511020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114511030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114511040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114511050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114511060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114511070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114511080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114511090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114511100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114511110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114511120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114511130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114511140 | 11.4 mm | 94 mm | 142 mm | 11.4 mm |
| 114511150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114511160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114511170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114511180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114511190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114511200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114511210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114511220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114511230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114511240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114511250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114511260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114511270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114511280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114511290 | 12.9 mm | 101 mm | 151 mm | 12.9 mm |
| 114511300 | 13 mm | 101 mm | 151 mm | 13 mm |
