De Phantom HSS Spiraalboor DIN 338 TiN-tip is specifiek ontworpen voor handmatig gebruik. De korte geslepen uitvoering met kruisaanslijping vanaf 1,6 mm en 118° tophoek garandeert een unieke lichtsnijdende geometrie, wat resulteert in licht en snel boren. De TiN-coating draagt bij aan een langere levensduur.

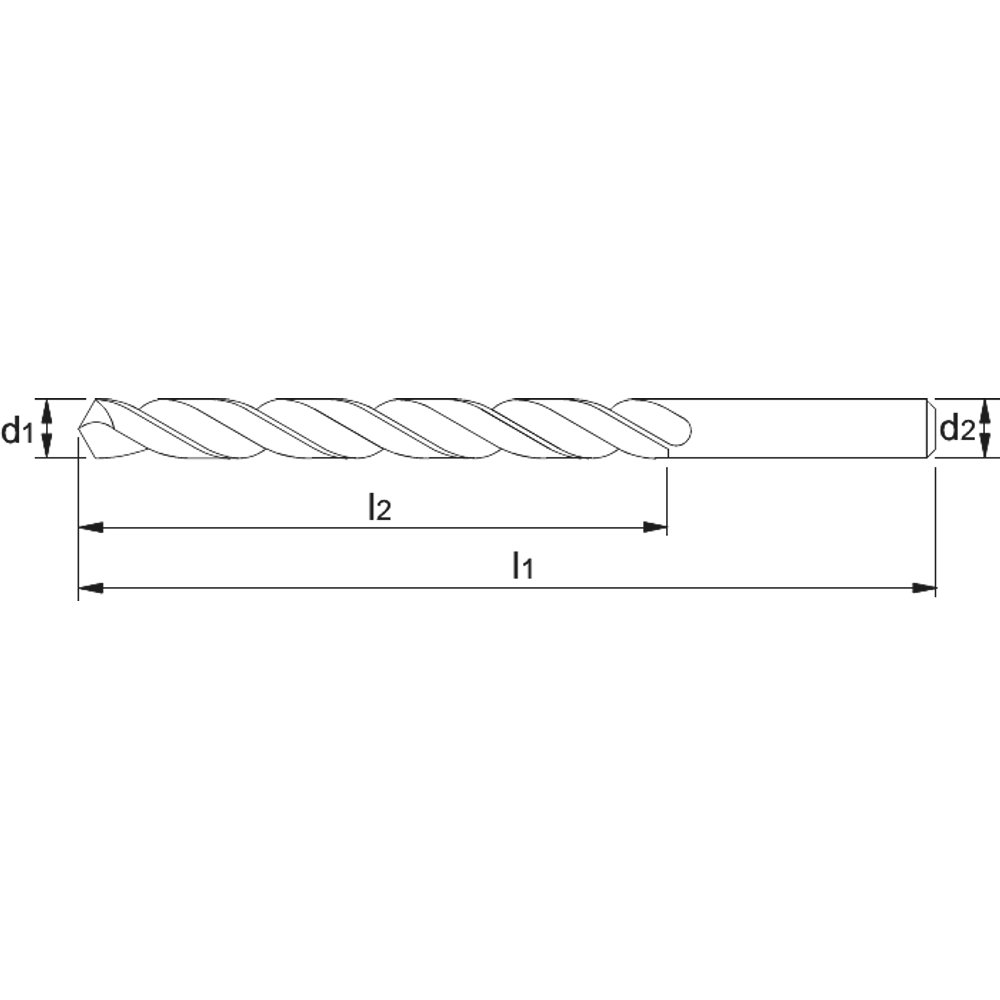

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114610100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114610110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114610120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114610130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114610140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114610150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114610160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114610170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114610180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114610190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114610200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114610210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114610220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114610230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114610240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114610250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114610260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114610270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114610280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114610290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114610300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114610310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114610320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114610330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114610340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114610350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114610360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114610370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114610380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114610390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114610400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114610410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114610420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114610430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114610440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114610450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114610460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114610470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114610480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114610490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114610500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114610510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114610520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114610530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114610540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114610550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114610560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114610570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114610580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114610590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114610600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114610610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114610620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114610630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114610640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114610650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114610660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114610670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114610680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114610690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114610700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114610710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114610720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114610730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114610740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114610750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114610760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114610770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114610780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114610790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114610800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114610810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114610820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114610830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114610840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114610850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114610860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114610870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114610880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114610890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114610900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114610910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114610920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114610930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114610940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114610950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114610960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114610970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114610980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114610990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114611000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114611010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114611020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114611030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114611040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114611050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114611060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114611070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114611080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114611090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114611100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114611110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114611120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114611130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114611140 | 11.4 mm | 94 mm | 142 mm | 11.4 mm |
| 114611150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114611160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114611170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114611180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114611190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114611200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114611210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114611220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114611230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114611240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114611250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114611260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114611270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114611280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114611290 | 12.9 mm | 101 mm | 151 mm | 12.9 mm |
| 114611300 | 13 mm | 101 mm | 151 mm | 13 mm |
| 114611350 | 13.5 mm | 108 mm | 160 mm | 13.5 mm |
| 114611400 | 14 mm | 108 mm | 160 mm | 14 mm |
| 114611450 | 14.5 mm | 114 mm | 169 mm | 14.5 mm |
| 114611500 | 15 mm | 114 mm | 169 mm | 15 mm |
| 114611550 | 15.5 mm | 120 mm | 178 mm | 15.5 mm |
| 114611600 | 16 mm | 120 mm | 178 mm | 16 mm |
