Voor efficiënt handmatig boren: de Phantom HSS Spiraalboor DIN 338 TiN-tip, met drievlaks schacht. Deze boor is speciaal ontworpen voor handgebruik. De kruisaanslijping en 118° tophoek maken licht en snel boren mogelijk. De drievlaks schacht (vanaf 4 mm) elimineert slippen in de boorkop, terwijl de TiN-coating de levensduur verlengt.

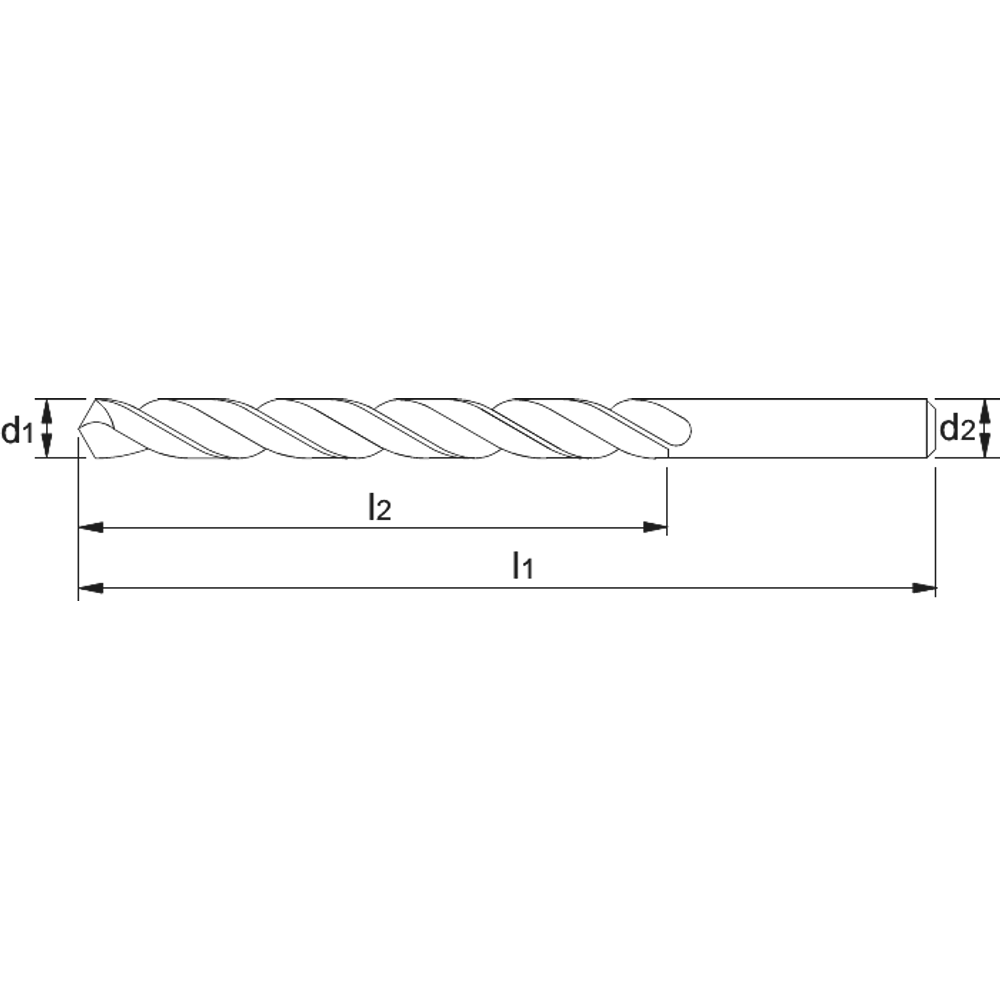

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114410400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114410410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114410420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114410430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114410450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114410470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114410480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114410490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114410500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114410510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114410520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114410530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114410550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114410570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114410580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114410600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114410610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114410620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114410630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114410650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114410670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114410680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114410700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114410750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114410800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114410850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114410900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114410950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114411000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114411020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114411050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114411100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114411150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114411200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114411250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114411300 | 13 mm | 101 mm | 151 mm | 13 mm |
