De Phantom HSS spiraalboor DIN 338 type H is de specialist voor het nauwkeurig bewerken van non-ferro metalen zoals messing, brons en zink. De specifieke 'type H' geometrie, met een 118° tophoek, is geoptimaliseerd voor deze materialen. Het voorkomt 'happen' en zorgt voor korte, controleerbare spanen. Deze korte, volledig geslepen boor met blank oppervlak biedt hoge stabiliteit en precisie voor zuivere, maatvaste gaten.

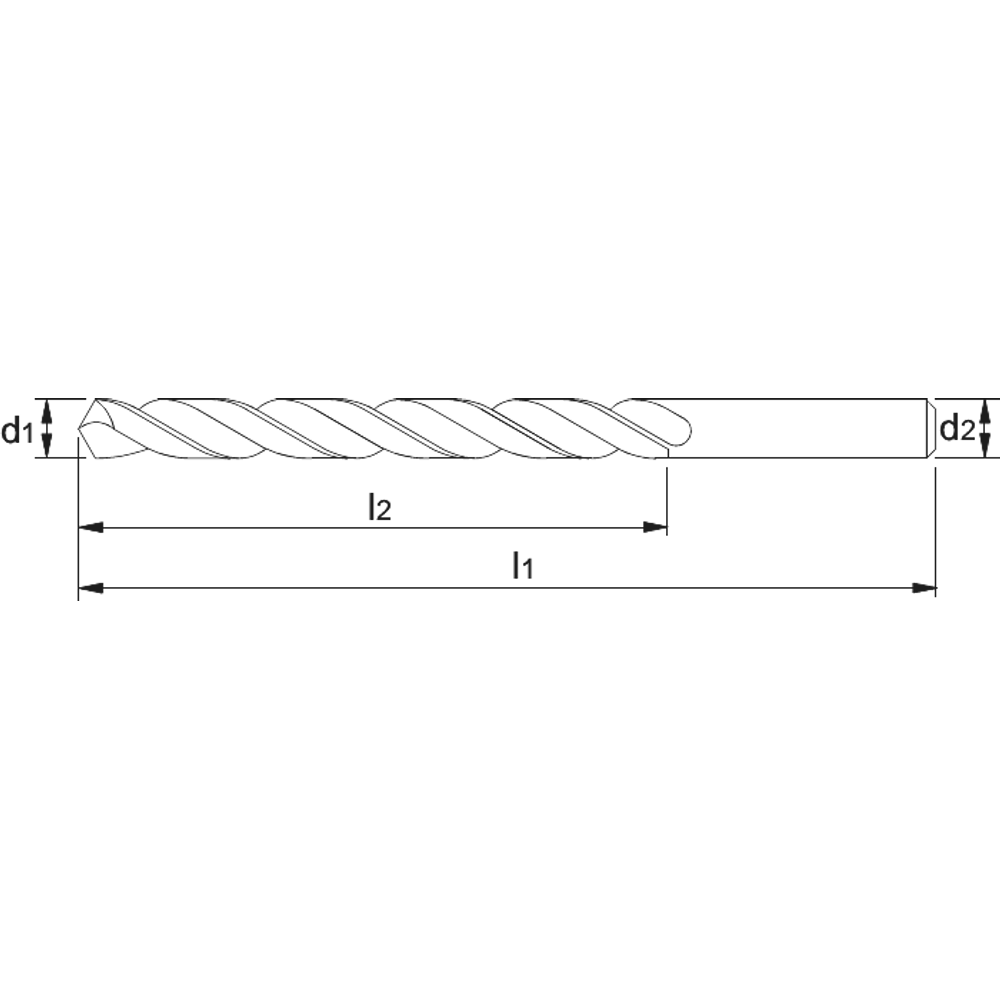

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 117000100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 117000110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 117000120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 117000130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 117000140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 117000150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 117000160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 117000170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 117000180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 117000190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 117000200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 117000210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 117000220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 117000230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 117000240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 117000250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 117000260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 117000270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 117000280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 117000290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 117000300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 117000310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 117000320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 117000330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 117000340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 117000350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 117000360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 117000370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 117000380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 117000390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 117000400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 117000410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 117000420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 117000430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 117000440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 117000450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 117000460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 117000470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 117000480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 117000490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 117000500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 117000510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 117000520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 117000530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 117000540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 117000550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 117000560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 117000570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 117000580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 117000590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 117000600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 117000610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 117000620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 117000630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 117000640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 117000650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 117000660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 117000670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 117000680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 117000690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 117000700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 117000710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 117000720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 117000730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 117000740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 117000750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 117000760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 117000770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 117000780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 117000790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 117000800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 117000810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 117000820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 117000830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 117000840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 117000850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 117000860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 117000870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 117000880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 117000890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 117000900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 117000910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 117000920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 117000930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 117000940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 117000950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 117000960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 117000970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 117000980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 117000990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 117001000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 117001020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 117001050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 117001100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 117001150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 117001200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 117001250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 117001300 | 13 mm | 101 mm | 151 mm | 13 mm |
