Deze Phantom HSS spiraalboor conform DIN 345, uitgerust met een Morse Conus opname (MK), is vervaardigd middels een hoogwaardig frees- en slijpproces voor maximale precisie. De boor heeft een 118° tophoek en beschikt vanaf ø 14 mm over een verdunde punt; dit verlaagt de benodigde aanzetkracht en ondersteunt zelfcentrerende eigenschappen bij het aanboren. Ideaal voor stabiel en nauwkeurig boren van grote diameters op kolomboormachines. De standaardboor voor professioneel werk met Morse conus opname.
Maten en specificaties

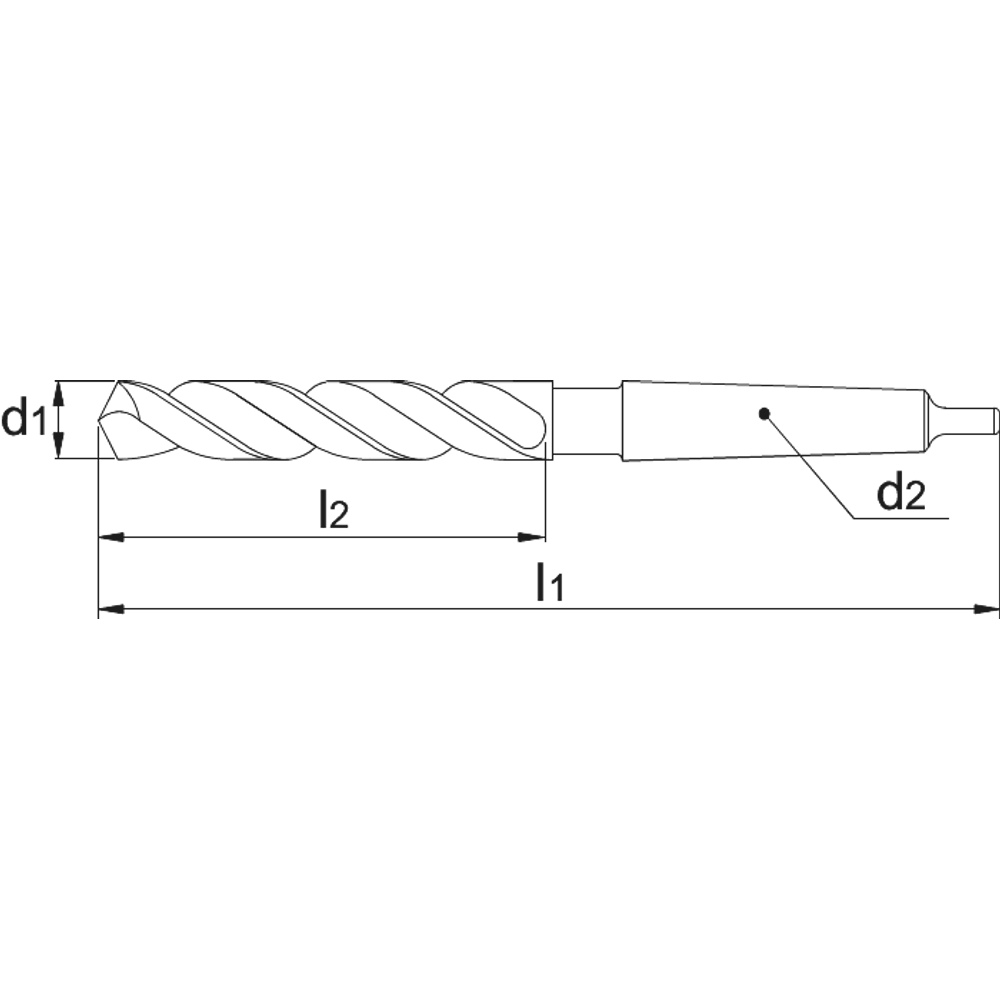

| Artikelnummer | d1 | l2 | l1 |
|---|---|---|---|
| 124400375 | 3.75 mm | 39 mm | 120 mm |
| 124400500 | 5 mm | 52 mm | 133 mm |
| 124400550 | 5.5 mm | 57 mm | 138 mm |
| 124400600 | 6 mm | 57 mm | 138 mm |
| 124400625 | 6.25 mm | 63 mm | 144 mm |
| 124400650 | 6.5 mm | 63 mm | 144 mm |
| 124400675 | 6.75 mm | 69 mm | 150 mm |
| 124400700 | 7 mm | 69 mm | 150 mm |
| 124400725 | 7.25 mm | 69 mm | 150 mm |
| 124400750 | 7.5 mm | 69 mm | 150 mm |
| 124400775 | 7.75 mm | 75 mm | 156 mm |
| 124400800 | 8 mm | 75 mm | 156 mm |
| 124400825 | 8.25 mm | 75 mm | 156 mm |
| 124400850 | 8.5 mm | 75 mm | 156 mm |
| 124400875 | 8.75 mm | 81 mm | 162 mm |
| 124400900 | 9 mm | 81 mm | 162 mm |
| 124400925 | 9.25 mm | 81 mm | 162 mm |
| 124400950 | 9.5 mm | 81 mm | 162 mm |
| 124400975 | 9.75 mm | 87 mm | 168 mm |
| 124401000 | 10 mm | 87 mm | 168 mm |
| 124401025 | 10.25 mm | 87 mm | 168 mm |
| 124401050 | 10.5 mm | 87 mm | 168 mm |
| 124401075 | 10.75 mm | 94 mm | 175 mm |
| 124401100 | 11 mm | 94 mm | 175 mm |
| 124401125 | 11.25 mm | 94 mm | 175 mm |
| 124401150 | 11.5 mm | 94 mm | 175 mm |
| 124401175 | 11.75 mm | 94 mm | 175 mm |
| 124401200 | 12 mm | 101 mm | 182 mm |
| 124401225 | 12.25 mm | 101 mm | 182 mm |
| 124401250 | 12.5 mm | 101 mm | 182 mm |
| 124401275 | 12.75 mm | 101 mm | 182 mm |
| 124401300 | 13 mm | 101 mm | 182 mm |
| 124401325 | 13.25 mm | 108 mm | 189 mm |
| 124401350 | 13.5 mm | 108 mm | 189 mm |
| 124401375 | 13.75 mm | 108 mm | 189 mm |
| 124401400 | 14 mm | 108 mm | 189 mm |
| 124401425 | 14.25 mm | 114 mm | 212 mm |
| 124401450 | 14.5 mm | 114 mm | 212 mm |
| 124401475 | 14.75 mm | 114 mm | 212 mm |
| 124401500 | 15 mm | 114 mm | 212 mm |
| 124401525 | 15.25 mm | 120 mm | 218 mm |
| 124401550 | 15.5 mm | 120 mm | 218 mm |
| 124401575 | 15.75 mm | 120 mm | 218 mm |
| 124401600 | 16 mm | 120 mm | 218 mm |
| 124401625 | 16.25 mm | 125 mm | 223 mm |
| 124401650 | 16.5 mm | 125 mm | 223 mm |
| 124401675 | 16.75 mm | 125 mm | 223 mm |
| 124401700 | 17 mm | 125 mm | 223 mm |
| 124401725 | 17.25 mm | 130 mm | 228 mm |
| 124401750 | 17.5 mm | 130 mm | 228 mm |
| 124401775 | 17.75 mm | 130 mm | 228 mm |
| 124401800 | 18 mm | 130 mm | 228 mm |
| 124401825 | 18.25 mm | 135 mm | 233 mm |
| 124401850 | 18.5 mm | 135 mm | 233 mm |
| 124401875 | 18.75 mm | 135 mm | 233 mm |
| 124401900 | 19 mm | 135 mm | 233 mm |
| 124401925 | 19.25 mm | 140 mm | 238 mm |
| 124401950 | 19.5 mm | 140 mm | 238 mm |
| 124401975 | 19.75 mm | 140 mm | 238 mm |
| 124402000 | 20 mm | 140 mm | 238 mm |
| 124402025 | 20.25 mm | 145 mm | 243 mm |
| 124402050 | 20.5 mm | 145 mm | 243 mm |
| 124402075 | 20.75 mm | 145 mm | 243 mm |
| 124402100 | 21 mm | 145 mm | 243 mm |
| 124402125 | 21.25 mm | 150 mm | 248 mm |
| 124402150 | 21.5 mm | 150 mm | 248 mm |
| 124402175 | 21.75 mm | 150 mm | 248 mm |
| 124402200 | 22 mm | 150 mm | 248 mm |
| 124402225 | 22.25 mm | 150 mm | 248 mm |
| 124402250 | 22.5 mm | 155 mm | 253 mm |
| 124402275 | 22.75 mm | 155 mm | 253 mm |
| 124402300 | 23 mm | 155 mm | 253 mm |
| 124402325 | 23.25 mm | 155 mm | 276 mm |
| 124402350 | 23.5 mm | 155 mm | 276 mm |
| 124402375 | 23.75 mm | 160 mm | 281 mm |
| 124402400 | 24 mm | 160 mm | 281 mm |
| 124402425 | 24.25 mm | 160 mm | 281 mm |
| 124402450 | 24.5 mm | 160 mm | 281 mm |
| 124402475 | 24.75 mm | 160 mm | 281 mm |
| 124402500 | 25 mm | 160 mm | 281 mm |
| 124402525 | 25.25 mm | 165 mm | 286 mm |
| 124402550 | 25.5 mm | 165 mm | 286 mm |
| 124402575 | 25.75 mm | 165 mm | 286 mm |
| 124402600 | 26 mm | 165 mm | 286 mm |
| 124402625 | 26.25 mm | 165 mm | 286 mm |
| 124402650 | 26.5 mm | 165 mm | 286 mm |
| 124402675 | 26.75 mm | 170 mm | 291 mm |
| 124402700 | 27 mm | 170 mm | 291 mm |
| 124402725 | 27.25 mm | 170 mm | 291 mm |
| 124402750 | 27.5 mm | 170 mm | 291 mm |
| 124402775 | 27.75 mm | 170 mm | 291 mm |
| 124402800 | 28 mm | 170 mm | 291 mm |
| 124402825 | 28.25 mm | 175 mm | 296 mm |
| 124402850 | 28.5 mm | 175 mm | 296 mm |
| 124402875 | 28.75 mm | 175 mm | 296 mm |
| 124402900 | 29 mm | 175 mm | 296 mm |
| 124402925 | 29.25 mm | 175 mm | 296 mm |
| 124402950 | 29.5 mm | 175 mm | 296 mm |
| 124402975 | 29.75 mm | 175 mm | 296 mm |
| 124403000 | 30 mm | 175 mm | 296 mm |
| 124403025 | 30.25 mm | 180 mm | 301 mm |
| 124403050 | 30.5 mm | 180 mm | 301 mm |
| 124403075 | 30.75 mm | 180 mm | 301 mm |
| 124403100 | 31 mm | 180 mm | 301 mm |
| 124403125 | 31.25 mm | 180 mm | 301 mm |
| 124403150 | 31.5 mm | 180 mm | 301 mm |
| 124403200 | 32 mm | 185 mm | 334 mm |
| 124403250 | 32.5 mm | 185 mm | 334 mm |
| 124403300 | 33 mm | 185 mm | 334 mm |
| 124403350 | 33.5 mm | 185 mm | 334 mm |
| 124403400 | 34 mm | 190 mm | 339 mm |
| 124403450 | 34.5 mm | 190 mm | 339 mm |
| 124403500 | 35 mm | 190 mm | 339 mm |
| 124403550 | 35.5 mm | 190 mm | 339 mm |
| 124403600 | 36 mm | 195 mm | 344 mm |
| 124403650 | 36.5 mm | 195 mm | 344 mm |
| 124403700 | 37 mm | 195 mm | 344 mm |
| 124403750 | 37.5 mm | 195 mm | 344 mm |
| 124403800 | 38 mm | 200 mm | 349 mm |
| 124403850 | 38.5 mm | 200 mm | 349 mm |
| 124403900 | 39 mm | 200 mm | 349 mm |
| 124403950 | 39.5 mm | 200 mm | 349 mm |
| 124404000 | 40 mm | 200 mm | 349 mm |
| 124404050 | 40.5 mm | 205 mm | 354 mm |
| 124404100 | 41 mm | 205 mm | 354 mm |
| 124404150 | 41.5 mm | 205 mm | 354 mm |
| 124404200 | 42 mm | 205 mm | 354 mm |
| 124404250 | 42.5 mm | 205 mm | 354 mm |
| 124404300 | 43 mm | 210 mm | 359 mm |
| 124404350 | 43.5 mm | 210 mm | 359 mm |
| 124404400 | 44 mm | 210 mm | 359 mm |
| 124404450 | 44.5 mm | 210 mm | 359 mm |
| 124404500 | 45 mm | 210 mm | 359 mm |
| 124404550 | 45.5 mm | 215 mm | 364 mm |
| 124404600 | 46 mm | 215 mm | 364 mm |
| 124404650 | 46.5 mm | 215 mm | 364 mm |
| 124404700 | 47 mm | 215 mm | 364 mm |
| 124404750 | 47.5 mm | 215 mm | 364 mm |
| 124404800 | 48 mm | 220 mm | 369 mm |
| 124404850 | 48.5 mm | 220 mm | 369 mm |
| 124404900 | 49 mm | 220 mm | 369 mm |
| 124404950 | 49.5 mm | 220 mm | 369 mm |
| 124405000 | 50 mm | 220 mm | 369 mm |
| 124405100 | 51 mm | 225 mm | 412 mm |
| 124405200 | 52 mm | 225 mm | 412 mm |
| 124405300 | 53 mm | 225 mm | 412 mm |
| 124405400 | 54 mm | 230 mm | 417 mm |
| 124405500 | 55 mm | 230 mm | 417 mm |
| 124405600 | 56 mm | 230 mm | 417 mm |
| 124405700 | 57 mm | 235 mm | 422 mm |
| 124405800 | 58 mm | 235 mm | 422 mm |
| 124405900 | 59 mm | 235 mm | 422 mm |
| 124406000 | 60 mm | 235 mm | 422 mm |
