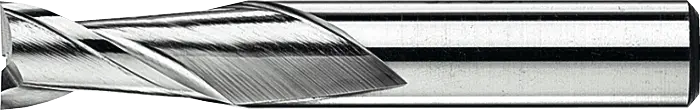

Deze Phantom HSS-E 8% precisie schachtfrees van M42-staal biedt je maximale rondloopnauwkeurigheid. Dankzij de cilindrische schacht (DIN 1835-A) en een tolerantie van ± 0,01 mm is deze 2-snijder ideaal voor nauwkeurige spiebanen en een borende bewerking. Uniek is het programma: verkrijgbaar van diameter 0,4 t/m 10,1 mm, per 0,1 mm oplopend. Omdat de frees hoogwaardig geslepen is, ben je verzekerd van een universeel inzetbaar gereedschap voor al je fijnmazige freeswerk.
Kenmerken:
- Materiaal: HSS-E 8%
- Aantal tanden: 2-snijder
- Schachttype: Cilindrische schacht (DIN 1835-A)
- Spiraalhoek: 30°
- Oppervlaktebehandeling: Blank geslepen
Beschikbare afmetingen:
| Diameter (d1) | Snijlengte (l2) | Totale lengte (l1) | Schacht (d2) | Tanden (z) | Art.nr. |
|---|---|---|---|---|---|
| 0.4 mm | 1 mm | 37 mm | 3 mm | 2 | 32.260.0040 |
| 0.5 mm | 1.5 mm | 37 mm | 3 mm | 2 | 32.260.0050 |
| 0.6 mm | 1.5 mm | 37 mm | 3 mm | 2 | 32.260.0060 |
| 0.7 mm | 2 mm | 37 mm | 4 mm | 2 | 32.260.0070 |
| 0.8 mm | 2 mm | 37 mm | 4 mm | 2 | 32.260.0080 |
| 0.9 mm | 2.5 mm | 37 mm | 4 mm | 2 | 32.260.0090 |
| 1 mm | 3 mm | 37 mm | 4 mm | 2 | 32.260.0100 |
| 1.1 mm | 3 mm | 37 mm | 4 mm | 2 | 32.260.0110 |
| 1.2 mm | 4 mm | 37 mm | 4 mm | 2 | 32.260.0120 |
| 1.3 mm | 4 mm | 37 mm | 4 mm | 2 | 32.260.0130 |
| 1.4 mm | 4 mm | 37 mm | 4 mm | 2 | 32.260.0140 |
| 1.5 mm | 4 mm | 37 mm | 4 mm | 2 | 32.260.0150 |
| 1.6 mm | 4 mm | 37 mm | 4 mm | 2 | 32.260.0160 |
| 1.7 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0170 |
| 1.8 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0180 |
| 1.9 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0190 |
| 2 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0200 |
| 2.1 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0210 |
| 2.2 mm | 5 mm | 37 mm | 4 mm | 2 | 32.260.0220 |
| 2.3 mm | 7 mm | 40 mm | 4 mm | 2 | 32.260.0230 |
| 2.4 mm | 7 mm | 40 mm | 4 mm | 2 | 32.260.0240 |
| 2.5 mm | 7 mm | 40 mm | 4 mm | 2 | 32.260.0250 |
| 2.6 mm | 7 mm | 40 mm | 4 mm | 2 | 32.260.0260 |
| 2.7 mm | 7 mm | 40 mm | 4 mm | 2 | 32.260.0270 |
| 2.8 mm | 8 mm | 44 mm | 5 mm | 2 | 32.260.0280 |
| 2.9 mm | 8 mm | 44 mm | 5 mm | 2 | 32.260.0290 |
| 3 mm | 8 mm | 44 mm | 5 mm | 2 | 32.260.0300 |
| 3.1 mm | 8 mm | 44 mm | 5 mm | 2 | 32.260.0310 |
| 3.2 mm | 8 mm | 44 mm | 5 mm | 2 | 32.260.0320 |
| 3.3 mm | 10 mm | 44 mm | 5 mm | 2 | 32.260.0330 |
| 3.4 mm | 10 mm | 44 mm | 5 mm | 2 | 32.260.0340 |
| 3.5 mm | 10 mm | 44 mm | 5 mm | 2 | 32.260.0350 |
| 3.6 mm | 10 mm | 44 mm | 5 mm | 2 | 32.260.0360 |
| 3.7 mm | 10 mm | 44 mm | 5 mm | 2 | 32.260.0370 |
| 3.8 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0380 |
| 3.9 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0390 |
| 4 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0400 |
| 4.1 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0410 |
| 4.2 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0420 |
| 4.3 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0430 |
| 4.4 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0440 |
| 4.5 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0450 |
| 4.6 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0460 |
| 4.7 mm | 12 mm | 51 mm | 6 mm | 2 | 32.260.0470 |
| 4.8 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0480 |
| 4.9 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0490 |
| 5 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0500 |
| 5.1 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0510 |
| 5.2 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0520 |
| 5.3 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0530 |
| 5.4 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0540 |
| 5.5 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0550 |
| 5.6 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0560 |
| 5.7 mm | 14 mm | 52 mm | 6 mm | 2 | 32.260.0570 |
| 5.8 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0580 |
| 5.9 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0590 |
| 6 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0600 |
| 6.1 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0610 |
| 6.2 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0620 |
| 6.3 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0630 |
| 6.4 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0640 |
| 6.5 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0650 |
| 6.6 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0660 |
| 6.7 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0670 |
| 6.8 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0680 |
| 6.9 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0690 |
| 7 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0700 |
| 7.1 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0710 |
| 7.2 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0720 |
| 7.3 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0730 |
| 7.4 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0740 |
| 7.5 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0750 |
| 7.6 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0760 |
| 7.7 mm | 16 mm | 60 mm | 8 mm | 2 | 32.260.0770 |
| 7.8 mm | 18 mm | 61 mm | 8 mm | 2 | 32.260.0780 |
| 7.9 mm | 18 mm | 61 mm | 8 mm | 2 | 32.260.0790 |
| 8 mm | 18 mm | 61 mm | 8 mm | 2 | 32.260.0800 |
| 8.1 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0810 |
| 8.2 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0820 |
| 8.3 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0830 |
| 8.4 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0840 |
| 8.5 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0850 |
| 8.6 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0860 |
| 8.7 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0870 |
| 8.8 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0880 |
| 8.9 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0890 |
| 9 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0900 |
| 9.1 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0910 |
| 9.2 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0920 |
| 9.3 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0930 |
| 9.4 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0940 |
| 9.5 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0950 |
| 9.6 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0960 |
| 9.7 mm | 18 mm | 69 mm | 10 mm | 2 | 32.260.0970 |
| 9.8 mm | 20 mm | 69 mm | 10 mm | 2 | 32.260.0980 |
| 9.9 mm | 20 mm | 69 mm | 10 mm | 2 | 32.260.0990 |
| 10 mm | 20 mm | 69 mm | 10 mm | 2 | 32.260.1000 |
| 10.1 mm | 25 mm | 70 mm | 12 mm | 2 | 32.260.1010 |
