voor wisselplaten 74.582 en 74.599

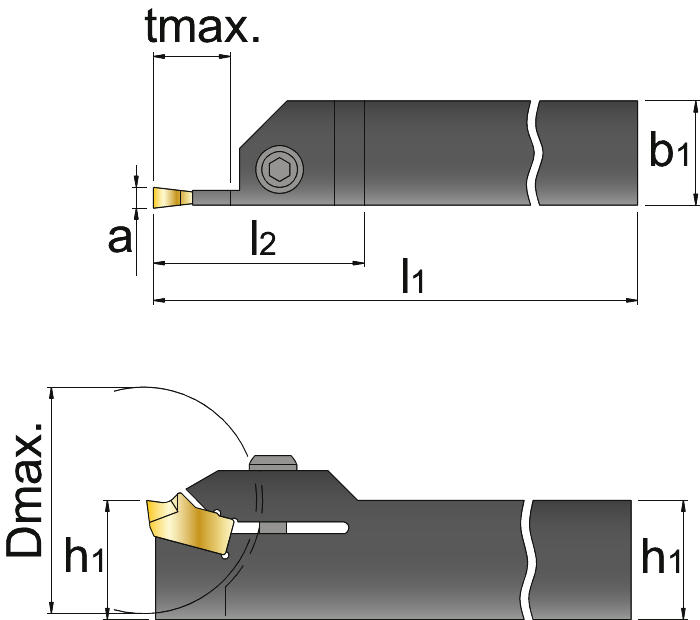

Maten en specificaties
| Artikelnummer | t max | l1 | Type | a | h1 |
|---|---|---|---|---|---|
| 745171122 | 11 mm | 91 mm | R1212-2‚2 | 2‚2 mm | 12 mm |
| 745171162 | 16 mm | 95 mm | R1616-2‚2 | 2‚2 mm | 16 mm |
| 745171163 | 16 mm | 95 mm | R1616-3 | 3 mm | 16 mm |
| 745171203 | 21 mm | 150 mm | R2020-3 | 3 mm | 20 mm |
| 745171204 | 21 mm | 150 mm | R2020-4 | 4 mm | 20 mm |
| 745171253 | 21 mm | 150 mm | R2525-3 | 3 mm | 25 mm |
| 745171254 | 21 mm | 150 mm | R2525-4 | 4 mm | 25 mm |
| 745172203 | 21 mm | 150 mm | L2020-3 | 3 mm | 20 mm |
| 745172253 | 21 mm | 150 mm | L2525-3 | 3 mm | 25 mm |
