De Phantom UNI volhardmetaal Spiraalboor DIN 6537-K 3xD met interne koeling en TiAlN coating is een geavanceerd verspaningsgereedschap voor de professionele metaalbewerker. Deze volhardmetaalboor met een slijtvaste TiAlN coating garandeert superieure prestaties en een aanzienlijk verlengde standtijd bij diverse boorbewerkingen. De interne koelkanalen zorgen voor een optimale warmteafvoer direct bij de snijkanten en dragen bij aan de vorming van korte spanen, wat een efficiënter en betrouwbaarder proces waarborgt. De uitvoering met een boordiepte van 3xD resulteert in een korte en stabiele constructie, wat nauwkeurige resultaten mogelijk maakt. De cilindrische schacht conform DIN 6535-HA verzekert een betrouwbare en optimale opspanning in gangbare gereedschapshouders. De tophoek van 140° maakt deze spiraalboor universeel inzetbaar voor een breed spectrum aan materialen.

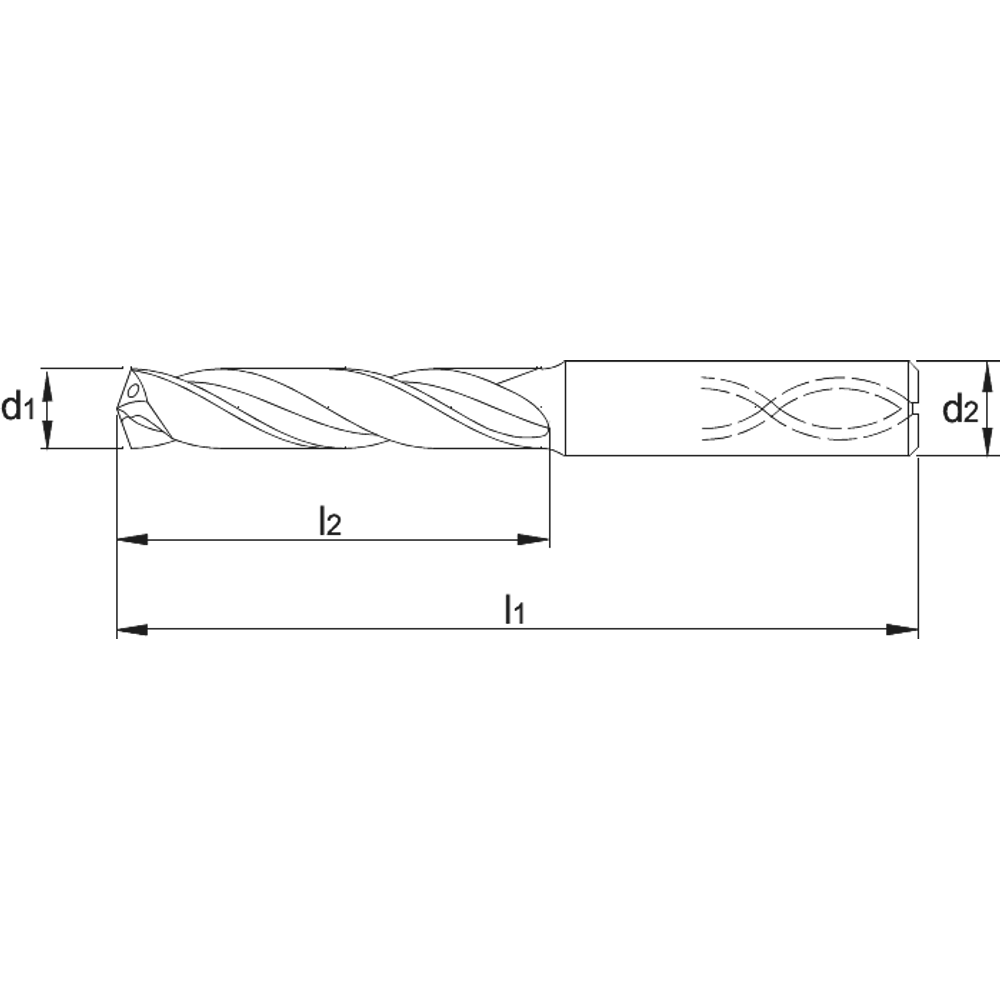

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112530100 | 1 mm | 7 mm | 45 mm | 3 mm |
| 112530110 | 1.1 mm | 7 mm | 45 mm | 3 mm |
| 112530120 | 1.2 mm | 7 mm | 45 mm | 3 mm |
| 112530130 | 1.3 mm | 7 mm | 45 mm | 3 mm |
| 112530140 | 1.4 mm | 7 mm | 45 mm | 3 mm |
| 112530150 | 1.5 mm | 14 mm | 55 mm | 3 mm |
| 112530160 | 1.6 mm | 14 mm | 55 mm | 3 mm |
| 112530170 | 1.7 mm | 14 mm | 55 mm | 3 mm |
| 112530180 | 1.8 mm | 14 mm | 55 mm | 3 mm |
| 112530190 | 1.9 mm | 14 mm | 55 mm | 3 mm |
| 112530200 | 2 mm | 20 mm | 55 mm | 4 mm |
| 112530210 | 2.1 mm | 20 mm | 55 mm | 4 mm |
| 112530220 | 2.2 mm | 20 mm | 55 mm | 4 mm |
| 112530230 | 2.3 mm | 20 mm | 55 mm | 4 mm |
| 112530240 | 2.4 mm | 20 mm | 55 mm | 4 mm |
| 112530250 | 2.5 mm | 20 mm | 55 mm | 4 mm |
| 112530260 | 2.6 mm | 20 mm | 55 mm | 4 mm |
| 112530270 | 2.7 mm | 20 mm | 55 mm | 4 mm |
| 112530280 | 2.8 mm | 20 mm | 55 mm | 4 mm |
| 112530290 | 2.9 mm | 20 mm | 55 mm | 4 mm |
| 112530300 | 3 mm | 20 mm | 62 mm | 6 mm |
| 112530310 | 3.1 mm | 20 mm | 62 mm | 6 mm |
| 112530320 | 3.2 mm | 20 mm | 62 mm | 6 mm |
| 112530330 | 3.3 mm | 20 mm | 62 mm | 6 mm |
| 112530340 | 3.4 mm | 20 mm | 62 mm | 6 mm |
| 112530350 | 3.5 mm | 20 mm | 62 mm | 6 mm |
| 112530360 | 3.6 mm | 20 mm | 62 mm | 6 mm |
| 112530370 | 3.7 mm | 20 mm | 62 mm | 6 mm |
| 112530380 | 3.8 mm | 24 mm | 66 mm | 6 mm |
| 112530390 | 3.9 mm | 24 mm | 66 mm | 6 mm |
| 112530400 | 4 mm | 24 mm | 66 mm | 6 mm |
| 112530410 | 4.1 mm | 24 mm | 66 mm | 6 mm |
| 112530420 | 4.2 mm | 24 mm | 66 mm | 6 mm |
| 112530430 | 4.3 mm | 24 mm | 66 mm | 6 mm |
| 112530440 | 4.4 mm | 24 mm | 66 mm | 6 mm |
| 112530450 | 4.5 mm | 24 mm | 66 mm | 6 mm |
| 112530460 | 4.6 mm | 24 mm | 66 mm | 6 mm |
| 112530470 | 4.7 mm | 24 mm | 66 mm | 6 mm |
| 112530480 | 4.8 mm | 28 mm | 66 mm | 6 mm |
| 112530490 | 4.9 mm | 28 mm | 66 mm | 6 mm |
| 112530500 | 5 mm | 28 mm | 66 mm | 6 mm |
| 112530510 | 5.1 mm | 28 mm | 66 mm | 6 mm |
| 112530520 | 5.2 mm | 28 mm | 66 mm | 6 mm |
| 112530530 | 5.3 mm | 28 mm | 66 mm | 6 mm |
| 112530540 | 5.4 mm | 28 mm | 66 mm | 6 mm |
| 112530550 | 5.5 mm | 28 mm | 66 mm | 6 mm |
| 112530560 | 5.6 mm | 28 mm | 66 mm | 6 mm |
| 112530570 | 5.7 mm | 28 mm | 66 mm | 6 mm |
| 112530580 | 5.8 mm | 28 mm | 66 mm | 6 mm |
| 112530590 | 5.9 mm | 28 mm | 66 mm | 6 mm |
| 112530600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 112530610 | 6.1 mm | 34 mm | 79 mm | 8 mm |
| 112530620 | 6.2 mm | 34 mm | 79 mm | 8 mm |
| 112530630 | 6.3 mm | 34 mm | 79 mm | 8 mm |
| 112530640 | 6.4 mm | 34 mm | 79 mm | 8 mm |
| 112530650 | 6.5 mm | 34 mm | 79 mm | 8 mm |
| 112530660 | 6.6 mm | 34 mm | 79 mm | 8 mm |
| 112530670 | 6.7 mm | 34 mm | 79 mm | 8 mm |
| 112530680 | 6.8 mm | 34 mm | 79 mm | 8 mm |
| 112530690 | 6.9 mm | 34 mm | 79 mm | 8 mm |
| 112530700 | 7 mm | 34 mm | 79 mm | 8 mm |
| 112530710 | 7.1 mm | 41 mm | 79 mm | 8 mm |
| 112530720 | 7.2 mm | 41 mm | 79 mm | 8 mm |
| 112530730 | 7.3 mm | 41 mm | 79 mm | 8 mm |
| 112530740 | 7.4 mm | 41 mm | 79 mm | 8 mm |
| 112530750 | 7.5 mm | 41 mm | 79 mm | 8 mm |
| 112530760 | 7.6 mm | 41 mm | 79 mm | 8 mm |
| 112530770 | 7.7 mm | 41 mm | 79 mm | 8 mm |
| 112530780 | 7.8 mm | 41 mm | 79 mm | 8 mm |
| 112530790 | 7.9 mm | 41 mm | 79 mm | 8 mm |
| 112530800 | 8 mm | 41 mm | 79 mm | 8 mm |
| 112530810 | 8.1 mm | 47 mm | 89 mm | 10 mm |
| 112530820 | 8.2 mm | 47 mm | 89 mm | 10 mm |
| 112530830 | 8.3 mm | 47 mm | 89 mm | 10 mm |
| 112530840 | 8.4 mm | 47 mm | 89 mm | 10 mm |
| 112530850 | 8.5 mm | 47 mm | 89 mm | 10 mm |
| 112530860 | 8.6 mm | 47 mm | 89 mm | 10 mm |
| 112530870 | 8.7 mm | 47 mm | 89 mm | 10 mm |
| 112530880 | 8.8 mm | 47 mm | 89 mm | 10 mm |
| 112530890 | 8.9 mm | 47 mm | 89 mm | 10 mm |
| 112530900 | 9 mm | 47 mm | 89 mm | 10 mm |
| 112530910 | 9.1 mm | 47 mm | 89 mm | 10 mm |
| 112530920 | 9.2 mm | 47 mm | 89 mm | 10 mm |
| 112530930 | 9.3 mm | 47 mm | 89 mm | 10 mm |
| 112530940 | 9.4 mm | 47 mm | 89 mm | 10 mm |
| 112530950 | 9.5 mm | 47 mm | 89 mm | 10 mm |
| 112530960 | 9.6 mm | 47 mm | 89 mm | 10 mm |
| 112530970 | 9.7 mm | 47 mm | 89 mm | 10 mm |
| 112530980 | 9.8 mm | 47 mm | 89 mm | 10 mm |
| 112530990 | 9.9 mm | 47 mm | 89 mm | 10 mm |
| 112531000 | 10 mm | 47 mm | 89 mm | 10 mm |
| 112531020 | 10.2 mm | 55 mm | 102 mm | 12 mm |
| 112531030 | 10.3 mm | 55 mm | 102 mm | 12 mm |
| 112531050 | 10.5 mm | 55 mm | 102 mm | 12 mm |
| 112531080 | 10.8 mm | 55 mm | 102 mm | 12 mm |
| 112531100 | 11 mm | 55 mm | 102 mm | 12 mm |
| 112531150 | 11.5 mm | 55 mm | 102 mm | 12 mm |
| 112531180 | 11.8 mm | 55 mm | 102 mm | 12 mm |
| 112531200 | 12 mm | 55 mm | 102 mm | 12 mm |
| 112531220 | 12.2 mm | 60 mm | 107 mm | 14 mm |
| 112531230 | 12.3 mm | 60 mm | 107 mm | 14 mm |
| 112531250 | 12.5 mm | 60 mm | 107 mm | 14 mm |
| 112531280 | 12.8 mm | 60 mm | 107 mm | 14 mm |
| 112531300 | 13 mm | 60 mm | 107 mm | 14 mm |
| 112531350 | 13.5 mm | 60 mm | 107 mm | 14 mm |
| 112531380 | 13.8 mm | 60 mm | 107 mm | 14 mm |
| 112531400 | 14 mm | 60 mm | 107 mm | 14 mm |
| 112531450 | 14.5 mm | 65 mm | 115 mm | 16 mm |
| 112531480 | 14.8 mm | 65 mm | 115 mm | 16 mm |
| 112531500 | 15 mm | 65 mm | 115 mm | 16 mm |
| 112531550 | 15.5 mm | 65 mm | 115 mm | 16 mm |
| 112531580 | 15.8 mm | 65 mm | 115 mm | 16 mm |
| 112531600 | 16 mm | 65 mm | 115 mm | 16 mm |
| 112531650 | 16.5 mm | 73 mm | 123 mm | 18 mm |
| 112531680 | 16.8 mm | 73 mm | 123 mm | 18 mm |
| 112531700 | 17 mm | 73 mm | 123 mm | 18 mm |
| 112531750 | 17.5 mm | 73 mm | 123 mm | 18 mm |
| 112531780 | 17.8 mm | 73 mm | 123 mm | 18 mm |
| 112531800 | 18 mm | 73 mm | 123 mm | 18 mm |
| 112531850 | 18.5 mm | 79 mm | 131 mm | 20 mm |
| 112531880 | 18.8 mm | 79 mm | 131 mm | 20 mm |
| 112531900 | 19 mm | 79 mm | 131 mm | 20 mm |
| 112531950 | 19.5 mm | 79 mm | 131 mm | 20 mm |
| 112531980 | 19.8 mm | 79 mm | 131 mm | 20 mm |
| 112532000 | 20 mm | 79 mm | 131 mm | 20 mm |
