De Phantom UNI volhardmetaal Spiraalboor DIN 6537-L 5xD met interne koeling en TiAlN coating is een geavanceerd verspaningsgereedschap voor de professionele metaalbewerker. Deze volhardmetaalboor met een slijtvaste TiAlN toplaag garandeert superieure prestaties en een aanzienlijk verlengde standtijd bij diverse boorbewerkingen. De interne koelkanalen zorgen voor een optimale warmteafvoer direct bij de snijkanten en bevorderen de vorming van korte spanen, wat een efficiënter en betrouwbaarder proces waarborgt. De uitvoering met een boordiepte tot 5xD maakt diepere en nauwkeurige bewerkingen mogelijk. De cilindrische schacht conform DIN 6535-HA verzekert een betrouwbare en optimale opspanning in gangbare gereedschapshouders. De tophoek van 140° maakt deze spiraalboor universeel inzetbaar voor een breed spectrum aan materialen.

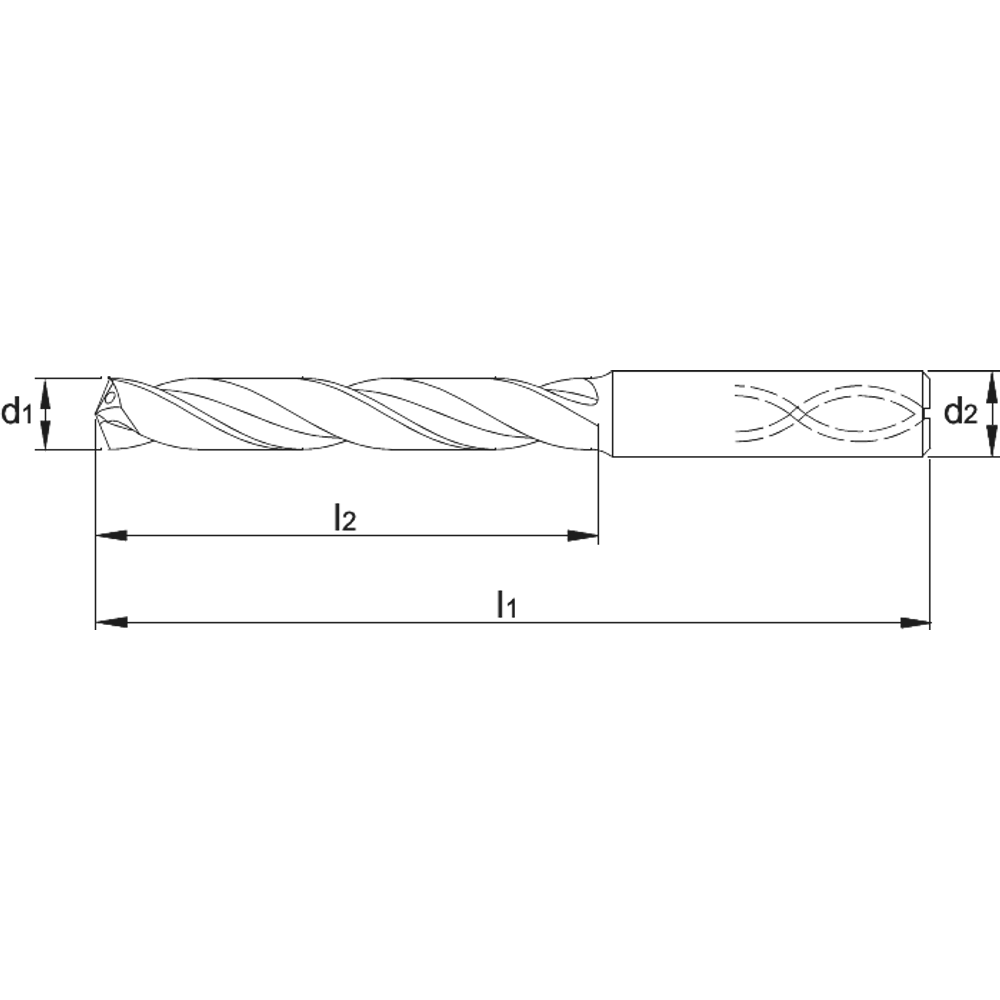

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112730100 | 1 mm | 8 mm | 55 mm | 3 mm |
| 112730110 | 1.1 mm | 12 mm | 55 mm | 3 mm |
| 112730120 | 1.2 mm | 12 mm | 55 mm | 3 mm |
| 112730130 | 1.3 mm | 12 mm | 55 mm | 3 mm |
| 112730140 | 1.4 mm | 12 mm | 55 mm | 3 mm |
| 112730150 | 1.5 mm | 16 mm | 55 mm | 3 mm |
| 112730160 | 1.6 mm | 16 mm | 55 mm | 3 mm |
| 112730170 | 1.7 mm | 16 mm | 55 mm | 3 mm |
| 112730180 | 1.8 mm | 16 mm | 55 mm | 3 mm |
| 112730190 | 1.9 mm | 16 mm | 55 mm | 3 mm |
| 112730200 | 2 mm | 21 mm | 57 mm | 4 mm |
| 112730210 | 2.1 mm | 21 mm | 57 mm | 4 mm |
| 112730220 | 2.2 mm | 21 mm | 57 mm | 4 mm |
| 112730230 | 2.3 mm | 21 mm | 57 mm | 4 mm |
| 112730240 | 2.4 mm | 21 mm | 57 mm | 4 mm |
| 112730250 | 2.5 mm | 21 mm | 57 mm | 4 mm |
| 112730260 | 2.6 mm | 21 mm | 57 mm | 4 mm |
| 112730270 | 2.7 mm | 21 mm | 57 mm | 4 mm |
| 112730280 | 2.8 mm | 21 mm | 57 mm | 4 mm |
| 112730290 | 2.9 mm | 21 mm | 57 mm | 4 mm |
| 112730300 | 3 mm | 28 mm | 66 mm | 6 mm |
| 112730310 | 3.1 mm | 28 mm | 66 mm | 6 mm |
| 112730320 | 3.2 mm | 28 mm | 66 mm | 6 mm |
| 112730325 | 3.25 mm | 28 mm | 66 mm | 6 mm |
| 112730330 | 3.3 mm | 28 mm | 66 mm | 6 mm |
| 112730340 | 3.4 mm | 28 mm | 66 mm | 6 mm |
| 112730350 | 3.5 mm | 28 mm | 66 mm | 6 mm |
| 112730360 | 3.6 mm | 28 mm | 66 mm | 6 mm |
| 112730365 | 3.65 mm | 28 mm | 66 mm | 6 mm |
| 112730370 | 3.7 mm | 28 mm | 66 mm | 6 mm |
| 112730380 | 3.8 mm | 36 mm | 74 mm | 6 mm |
| 112730390 | 3.9 mm | 36 mm | 74 mm | 6 mm |
| 112730400 | 4 mm | 36 mm | 74 mm | 6 mm |
| 112730410 | 4.1 mm | 36 mm | 74 mm | 6 mm |
| 112730420 | 4.2 mm | 36 mm | 74 mm | 6 mm |
| 112730430 | 4.3 mm | 36 mm | 74 mm | 6 mm |
| 112730440 | 4.4 mm | 36 mm | 74 mm | 6 mm |
| 112730450 | 4.5 mm | 36 mm | 74 mm | 6 mm |
| 112730460 | 4.6 mm | 36 mm | 74 mm | 6 mm |
| 112730465 | 4.65 mm | 36 mm | 74 mm | 6 mm |
| 112730470 | 4.7 mm | 36 mm | 74 mm | 6 mm |
| 112730480 | 4.8 mm | 44 mm | 82 mm | 6 mm |
| 112730490 | 4.9 mm | 44 mm | 82 mm | 6 mm |
| 112730500 | 5 mm | 44 mm | 82 mm | 6 mm |
| 112730510 | 5.1 mm | 44 mm | 82 mm | 6 mm |
| 112730520 | 5.2 mm | 44 mm | 82 mm | 6 mm |
| 112730530 | 5.3 mm | 44 mm | 82 mm | 6 mm |
| 112730540 | 5.4 mm | 44 mm | 82 mm | 6 mm |
| 112730550 | 5.5 mm | 44 mm | 82 mm | 6 mm |
| 112730555 | 5.55 mm | 44 mm | 82 mm | 6 mm |
| 112730560 | 5.6 mm | 44 mm | 82 mm | 6 mm |
| 112730570 | 5.7 mm | 44 mm | 82 mm | 6 mm |
| 112730580 | 5.8 mm | 44 mm | 82 mm | 6 mm |
| 112730590 | 5.9 mm | 44 mm | 82 mm | 6 mm |
| 112730600 | 6 mm | 44 mm | 82 mm | 6 mm |
| 112730610 | 6.1 mm | 53 mm | 91 mm | 8 mm |
| 112730620 | 6.2 mm | 53 mm | 91 mm | 8 mm |
| 112730630 | 6.3 mm | 53 mm | 91 mm | 8 mm |
| 112730640 | 6.4 mm | 53 mm | 91 mm | 8 mm |
| 112730650 | 6.5 mm | 53 mm | 91 mm | 8 mm |
| 112730660 | 6.6 mm | 53 mm | 91 mm | 8 mm |
| 112730670 | 6.7 mm | 53 mm | 91 mm | 8 mm |
| 112730680 | 6.8 mm | 53 mm | 91 mm | 8 mm |
| 112730690 | 6.9 mm | 53 mm | 91 mm | 8 mm |
| 112730700 | 7 mm | 53 mm | 91 mm | 8 mm |
| 112730710 | 7.1 mm | 53 mm | 91 mm | 8 mm |
| 112730720 | 7.2 mm | 53 mm | 91 mm | 8 mm |
| 112730730 | 7.3 mm | 53 mm | 91 mm | 8 mm |
| 112730740 | 7.4 mm | 53 mm | 91 mm | 8 mm |
| 112730750 | 7.5 mm | 53 mm | 91 mm | 8 mm |
| 112730755 | 7.55 mm | 53 mm | 91 mm | 8 mm |
| 112730760 | 7.6 mm | 53 mm | 91 mm | 8 mm |
| 112730770 | 7.7 mm | 53 mm | 91 mm | 8 mm |
| 112730780 | 7.8 mm | 53 mm | 91 mm | 8 mm |
| 112730790 | 7.9 mm | 53 mm | 91 mm | 8 mm |
| 112730800 | 8 mm | 53 mm | 91 mm | 8 mm |
| 112730810 | 8.1 mm | 61 mm | 103 mm | 10 mm |
| 112730820 | 8.2 mm | 61 mm | 103 mm | 10 mm |
| 112730830 | 8.3 mm | 61 mm | 103 mm | 10 mm |
| 112730840 | 8.4 mm | 61 mm | 103 mm | 10 mm |
| 112730850 | 8.5 mm | 61 mm | 103 mm | 10 mm |
| 112730860 | 8.6 mm | 61 mm | 103 mm | 10 mm |
| 112730870 | 8.7 mm | 61 mm | 103 mm | 10 mm |
| 112730880 | 8.8 mm | 61 mm | 103 mm | 10 mm |
| 112730890 | 8.9 mm | 61 mm | 103 mm | 10 mm |
| 112730900 | 9 mm | 61 mm | 103 mm | 10 mm |
| 112730910 | 9.1 mm | 61 mm | 103 mm | 10 mm |
| 112730920 | 9.2 mm | 61 mm | 103 mm | 10 mm |
| 112730930 | 9.3 mm | 61 mm | 103 mm | 10 mm |
| 112730940 | 9.4 mm | 61 mm | 103 mm | 10 mm |
| 112730950 | 9.5 mm | 61 mm | 103 mm | 10 mm |
| 112730955 | 9.55 mm | 61 mm | 103 mm | 10 mm |
| 112730960 | 9.6 mm | 61 mm | 103 mm | 10 mm |
| 112730970 | 9.7 mm | 61 mm | 103 mm | 10 mm |
| 112730980 | 9.8 mm | 61 mm | 103 mm | 10 mm |
| 112730990 | 9.9 mm | 61 mm | 103 mm | 10 mm |
| 112731000 | 10 mm | 61 mm | 103 mm | 10 mm |
| 112731010 | 10.1 mm | 71 mm | 118 mm | 12 mm |
| 112731020 | 10.2 mm | 71 mm | 118 mm | 12 mm |
| 112731030 | 10.3 mm | 71 mm | 118 mm | 12 mm |
| 112731040 | 10.4 mm | 71 mm | 118 mm | 12 mm |
| 112731050 | 10.5 mm | 71 mm | 118 mm | 12 mm |
| 112731060 | 10.6 mm | 71 mm | 118 mm | 12 mm |
| 112731070 | 10.7 mm | 71 mm | 118 mm | 12 mm |
| 112731080 | 10.8 mm | 71 mm | 118 mm | 12 mm |
| 112731090 | 10.9 mm | 71 mm | 118 mm | 12 mm |
| 112731100 | 11 mm | 71 mm | 118 mm | 12 mm |
| 112731110 | 11.1 mm | 71 mm | 118 mm | 12 mm |
| 112731120 | 11.2 mm | 71 mm | 118 mm | 12 mm |
| 112731130 | 11.3 mm | 71 mm | 118 mm | 12 mm |
| 112731140 | 11.4 mm | 71 mm | 118 mm | 12 mm |
| 112731150 | 11.5 mm | 71 mm | 118 mm | 12 mm |
| 112731155 | 11.55 mm | 71 mm | 118 mm | 12 mm |
| 112731160 | 11.6 mm | 71 mm | 118 mm | 12 mm |
| 112731170 | 11.7 mm | 71 mm | 118 mm | 12 mm |
| 112731180 | 11.8 mm | 71 mm | 118 mm | 12 mm |
| 112731190 | 11.9 mm | 71 mm | 118 mm | 12 mm |
| 112731200 | 12 mm | 71 mm | 118 mm | 12 mm |
| 112731210 | 12.1 mm | 77 mm | 124 mm | 14 mm |
| 112731220 | 12.2 mm | 77 mm | 124 mm | 14 mm |
| 112731225 | 12.25 mm | 77 mm | 124 mm | 14 mm |
| 112731230 | 12.3 mm | 77 mm | 124 mm | 14 mm |
| 112731240 | 12.4 mm | 77 mm | 124 mm | 14 mm |
| 112731250 | 12.5 mm | 77 mm | 124 mm | 14 mm |
| 112731260 | 12.6 mm | 77 mm | 124 mm | 14 mm |
| 112731270 | 12.7 mm | 77 mm | 124 mm | 14 mm |
| 112731280 | 12.8 mm | 77 mm | 124 mm | 14 mm |
| 112731290 | 12.9 mm | 77 mm | 124 mm | 14 mm |
| 112731300 | 13 mm | 77 mm | 124 mm | 14 mm |
| 112731350 | 13.5 mm | 77 mm | 124 mm | 14 mm |
| 112731380 | 13.8 mm | 77 mm | 124 mm | 14 mm |
| 112731400 | 14 mm | 77 mm | 124 mm | 14 mm |
| 112731450 | 14.5 mm | 83 mm | 133 mm | 16 mm |
| 112731480 | 14.8 mm | 83 mm | 133 mm | 16 mm |
| 112731500 | 15 mm | 83 mm | 133 mm | 16 mm |
| 112731510 | 15.1 mm | 83 mm | 133 mm | 16 mm |
| 112731550 | 15.5 mm | 83 mm | 133 mm | 16 mm |
| 112731580 | 15.8 mm | 83 mm | 133 mm | 16 mm |
| 112731600 | 16 mm | 83 mm | 133 mm | 16 mm |
| 112731650 | 16.5 mm | 93 mm | 143 mm | 18 mm |
| 112731680 | 16.8 mm | 93 mm | 143 mm | 18 mm |
| 112731700 | 17 mm | 93 mm | 143 mm | 18 mm |
| 112731750 | 17.5 mm | 93 mm | 143 mm | 18 mm |
| 112731780 | 17.8 mm | 93 mm | 143 mm | 18 mm |
| 112731800 | 18 mm | 93 mm | 143 mm | 18 mm |
| 112731850 | 18.5 mm | 101 mm | 153 mm | 20 mm |
| 112731880 | 18.8 mm | 101 mm | 153 mm | 20 mm |
| 112731900 | 19 mm | 101 mm | 153 mm | 20 mm |
| 112731950 | 19.5 mm | 101 mm | 153 mm | 20 mm |
| 112731980 | 19.8 mm | 101 mm | 153 mm | 20 mm |
| 112732000 | 20 mm | 101 mm | 153 mm | 20 mm |
