De Phantom UNI volhardmetaal Spiraalboor DIN 6537-L 5xD TiAlN is een geavanceerd verspaningsgereedschap voor de professionele metaalbewerker. Deze volhardmetaalboor is voorzien van een slijtvaste TiAlN coating, wat resulteert in superieure prestaties en een verlengde standtijd bij diverse boorbewerkingen. De cilindrische schacht conform DIN 6535-HA verzekert een betrouwbare en optimale opspanning in gangbare gereedschapshouders. Met een tophoek van 140° is deze boor universeel inzetbaar voor een breed spectrum aan materialen. De uitvoering met een boordiepte tot 5xD maakt diepere en efficiënte bewerkingen mogelijk.
Maten en specificaties

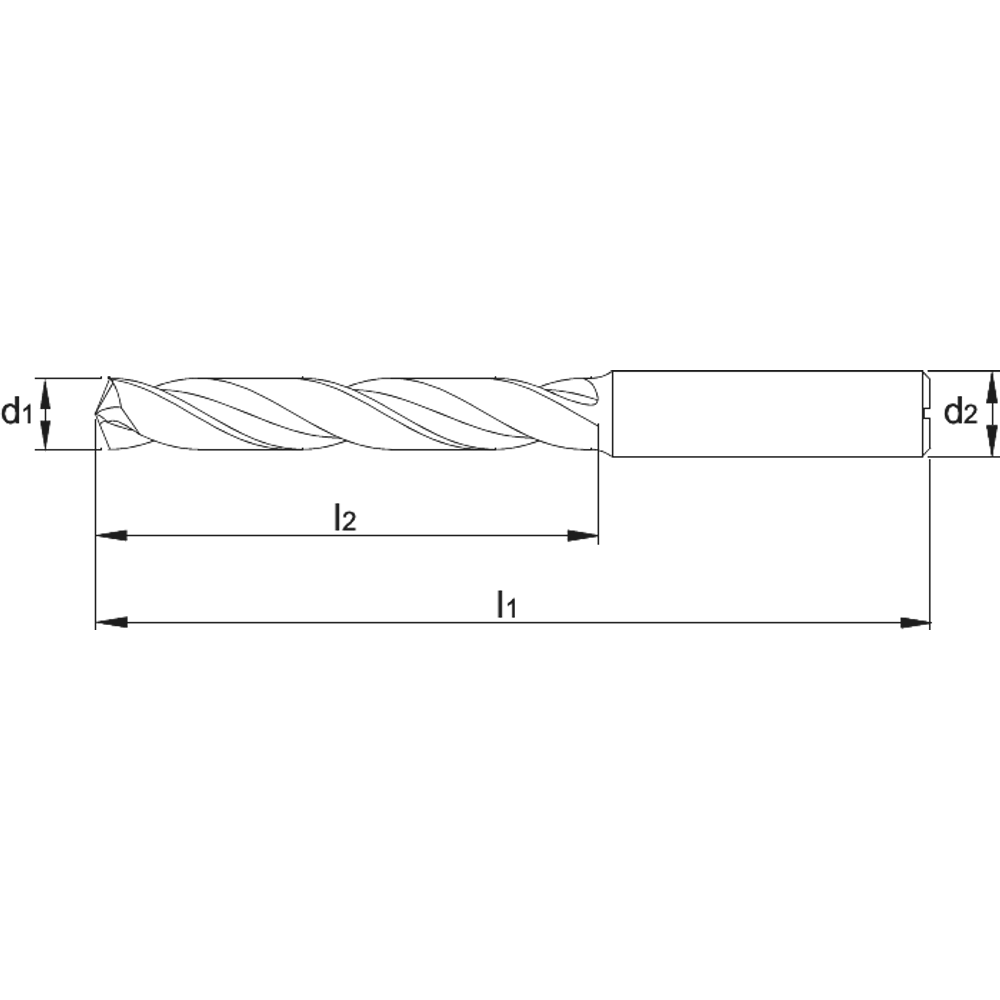

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112700100 | 1 mm | 8 mm | 55 mm | 3 mm |
| 112700110 | 1.1 mm | 12 mm | 55 mm | 3 mm |
| 112700120 | 1.2 mm | 12 mm | 55 mm | 3 mm |
| 112700130 | 1.3 mm | 12 mm | 55 mm | 3 mm |
| 112700140 | 1.4 mm | 12 mm | 55 mm | 3 mm |
| 112700150 | 1.5 mm | 16 mm | 55 mm | 3 mm |
| 112700160 | 1.6 mm | 16 mm | 55 mm | 3 mm |
| 112700170 | 1.7 mm | 16 mm | 55 mm | 3 mm |
| 112700180 | 1.8 mm | 16 mm | 55 mm | 3 mm |
| 112700190 | 1.9 mm | 16 mm | 55 mm | 3 mm |
| 112700200 | 2 mm | 21 mm | 57 mm | 4 mm |
| 112700210 | 2.1 mm | 21 mm | 57 mm | 4 mm |
| 112700220 | 2.2 mm | 21 mm | 57 mm | 4 mm |
| 112700230 | 2.3 mm | 21 mm | 57 mm | 4 mm |
| 112700240 | 2.4 mm | 21 mm | 57 mm | 4 mm |
| 112700250 | 2.5 mm | 21 mm | 57 mm | 4 mm |
| 112700260 | 2.6 mm | 21 mm | 57 mm | 4 mm |
| 112700270 | 2.7 mm | 21 mm | 57 mm | 4 mm |
| 112700280 | 2.8 mm | 21 mm | 57 mm | 4 mm |
| 112700290 | 2.9 mm | 21 mm | 57 mm | 4 mm |
| 112700300 | 3 mm | 28 mm | 66 mm | 6 mm |
| 112700310 | 3.1 mm | 28 mm | 66 mm | 6 mm |
| 112700320 | 3.2 mm | 28 mm | 66 mm | 6 mm |
| 112700330 | 3.3 mm | 28 mm | 66 mm | 6 mm |
| 112700340 | 3.4 mm | 28 mm | 66 mm | 6 mm |
| 112700350 | 3.5 mm | 28 mm | 66 mm | 6 mm |
| 112700360 | 3.6 mm | 28 mm | 66 mm | 6 mm |
| 112700370 | 3.7 mm | 28 mm | 66 mm | 6 mm |
| 112700380 | 3.8 mm | 36 mm | 74 mm | 6 mm |
| 112700390 | 3.9 mm | 36 mm | 74 mm | 6 mm |
| 112700400 | 4 mm | 36 mm | 74 mm | 6 mm |
| 112700410 | 4.1 mm | 36 mm | 74 mm | 6 mm |
| 112700420 | 4.2 mm | 36 mm | 74 mm | 6 mm |
| 112700430 | 4.3 mm | 36 mm | 74 mm | 6 mm |
| 112700440 | 4.4 mm | 36 mm | 74 mm | 6 mm |
| 112700450 | 4.5 mm | 36 mm | 74 mm | 6 mm |
| 112700460 | 4.6 mm | 36 mm | 74 mm | 6 mm |
| 112700470 | 4.7 mm | 36 mm | 74 mm | 6 mm |
| 112700480 | 4.8 mm | 44 mm | 82 mm | 6 mm |
| 112700490 | 4.9 mm | 44 mm | 82 mm | 6 mm |
| 112700500 | 5 mm | 44 mm | 82 mm | 6 mm |
| 112700510 | 5.1 mm | 44 mm | 82 mm | 6 mm |
| 112700520 | 5.2 mm | 44 mm | 82 mm | 6 mm |
| 112700530 | 5.3 mm | 44 mm | 82 mm | 6 mm |
| 112700540 | 5.4 mm | 44 mm | 82 mm | 6 mm |
| 112700550 | 5.5 mm | 44 mm | 82 mm | 6 mm |
| 112700560 | 5.6 mm | 44 mm | 82 mm | 6 mm |
| 112700570 | 5.7 mm | 44 mm | 82 mm | 6 mm |
| 112700580 | 5.8 mm | 44 mm | 82 mm | 6 mm |
| 112700590 | 5.9 mm | 44 mm | 82 mm | 6 mm |
| 112700600 | 6 mm | 44 mm | 82 mm | 6 mm |
| 112700610 | 6.1 mm | 53 mm | 91 mm | 8 mm |
| 112700620 | 6.2 mm | 53 mm | 91 mm | 8 mm |
| 112700630 | 6.3 mm | 53 mm | 91 mm | 8 mm |
| 112700640 | 6.4 mm | 53 mm | 91 mm | 8 mm |
| 112700650 | 6.5 mm | 53 mm | 91 mm | 8 mm |
| 112700660 | 6.6 mm | 53 mm | 91 mm | 8 mm |
| 112700670 | 6.7 mm | 53 mm | 91 mm | 8 mm |
| 112700680 | 6.8 mm | 53 mm | 91 mm | 8 mm |
| 112700690 | 6.9 mm | 53 mm | 91 mm | 8 mm |
| 112700700 | 7 mm | 53 mm | 91 mm | 8 mm |
| 112700710 | 7.1 mm | 53 mm | 91 mm | 8 mm |
| 112700720 | 7.2 mm | 53 mm | 91 mm | 8 mm |
| 112700730 | 7.3 mm | 53 mm | 91 mm | 8 mm |
| 112700740 | 7.4 mm | 53 mm | 91 mm | 8 mm |
| 112700750 | 7.5 mm | 53 mm | 91 mm | 8 mm |
| 112700760 | 7.6 mm | 53 mm | 91 mm | 8 mm |
| 112700770 | 7.7 mm | 53 mm | 91 mm | 8 mm |
| 112700780 | 7.8 mm | 53 mm | 91 mm | 8 mm |
| 112700790 | 7.9 mm | 53 mm | 91 mm | 8 mm |
| 112700800 | 8 mm | 53 mm | 91 mm | 8 mm |
| 112700810 | 8.1 mm | 61 mm | 103 mm | 10 mm |
| 112700820 | 8.2 mm | 61 mm | 103 mm | 10 mm |
| 112700830 | 8.3 mm | 61 mm | 103 mm | 10 mm |
| 112700840 | 8.4 mm | 61 mm | 103 mm | 10 mm |
| 112700850 | 8.5 mm | 61 mm | 103 mm | 10 mm |
| 112700860 | 8.6 mm | 61 mm | 103 mm | 10 mm |
| 112700870 | 8.7 mm | 61 mm | 103 mm | 10 mm |
| 112700880 | 8.8 mm | 61 mm | 103 mm | 10 mm |
| 112700890 | 8.9 mm | 61 mm | 103 mm | 10 mm |
| 112700900 | 9 mm | 61 mm | 103 mm | 10 mm |
| 112700910 | 9.1 mm | 61 mm | 103 mm | 10 mm |
| 112700920 | 9.2 mm | 61 mm | 103 mm | 10 mm |
| 112700930 | 9.3 mm | 61 mm | 103 mm | 10 mm |
| 112700940 | 9.4 mm | 61 mm | 103 mm | 10 mm |
| 112700950 | 9.5 mm | 61 mm | 103 mm | 10 mm |
| 112700960 | 9.6 mm | 61 mm | 103 mm | 10 mm |
| 112700970 | 9.7 mm | 61 mm | 103 mm | 10 mm |
| 112700980 | 9.8 mm | 61 mm | 103 mm | 10 mm |
| 112700990 | 9.9 mm | 61 mm | 103 mm | 10 mm |
| 112701000 | 10 mm | 61 mm | 103 mm | 10 mm |
| 112701020 | 10.2 mm | 71 mm | 118 mm | 12 mm |
| 112701030 | 10.3 mm | 71 mm | 118 mm | 12 mm |
| 112701050 | 10.5 mm | 71 mm | 118 mm | 12 mm |
| 112701080 | 10.8 mm | 71 mm | 118 mm | 12 mm |
| 112701100 | 11 mm | 71 mm | 118 mm | 12 mm |
| 112701150 | 11.5 mm | 71 mm | 118 mm | 12 mm |
| 112701180 | 11.8 mm | 71 mm | 118 mm | 12 mm |
| 112701200 | 12 mm | 71 mm | 118 mm | 12 mm |
| 112701230 | 12.3 mm | 77 mm | 124 mm | 14 mm |
| 112701250 | 12.5 mm | 77 mm | 124 mm | 14 mm |
| 112701280 | 12.8 mm | 77 mm | 124 mm | 14 mm |
| 112701300 | 13 mm | 77 mm | 124 mm | 14 mm |
| 112701350 | 13.5 mm | 77 mm | 124 mm | 14 mm |
| 112701380 | 13.8 mm | 77 mm | 124 mm | 14 mm |
| 112701400 | 14 mm | 77 mm | 124 mm | 14 mm |
| 112701450 | 14.5 mm | 83 mm | 133 mm | 16 mm |
| 112701480 | 14.8 mm | 83 mm | 133 mm | 16 mm |
| 112701500 | 15 mm | 83 mm | 133 mm | 16 mm |
| 112701550 | 15.5 mm | 83 mm | 133 mm | 16 mm |
| 112701580 | 15.8 mm | 83 mm | 133 mm | 16 mm |
| 112701600 | 16 mm | 83 mm | 133 mm | 16 mm |
