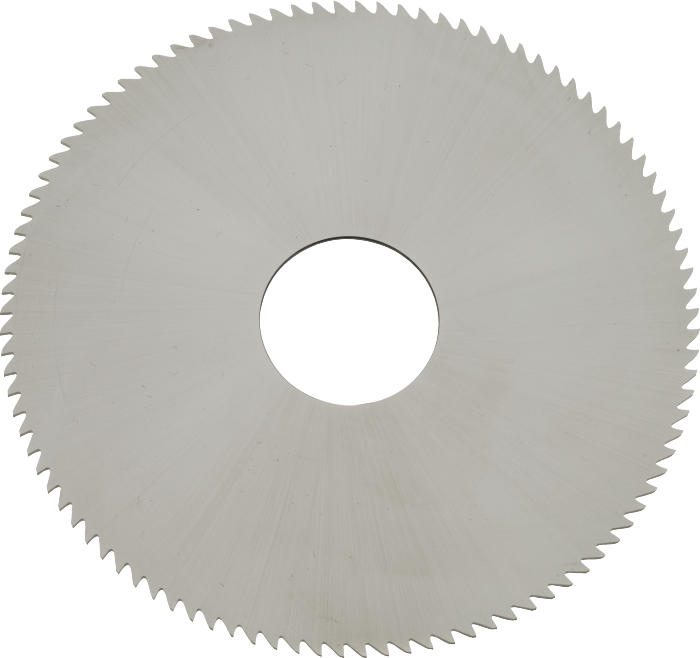

DIN 1837-A, tandvorm A (rechte tand)

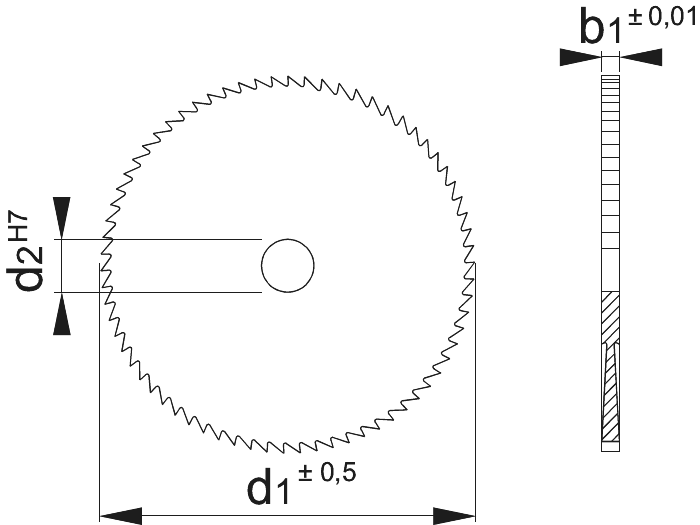

Maten en specificaties
| Artikelnummer | d1 | b1 | d2 | t | z |
|---|---|---|---|---|---|
| 632200102 | 15 mm | 0.2 mm | 5 mm | 0‚75 mm | 64 |
| 632200103 | 15 mm | 0.3 mm | 5 mm | 0‚75 mm | 64 |
| 632200104 | 15 mm | 0.4 mm | 5 mm | 0‚75 mm | 64 |
| 632200105 | 15 mm | 0.5 mm | 5 mm | 1 mm | 48 |
| 632200106 | 15 mm | 0.6 mm | 5 mm | 1 mm | 48 |
| 632200107 | 15 mm | 0.7 mm | 5 mm | 1 mm | 48 |
| 632200108 | 15 mm | 0.8 mm | 5 mm | 1‚25 mm | 40 |
| 632200109 | 15 mm | 0.9 mm | 5 mm | 1‚25 mm | 40 |
| 632200110 | 15 mm | 1 mm | 5 mm | 1‚25 mm | 40 |
| 632200112 | 15 mm | 1.2 mm | 5 mm | 1‚25 mm | 40 |
| 632200115 | 15 mm | 1.5 mm | 5 mm | 1‚25 mm | 40 |
| 632200116 | 15 mm | 1.6 mm | 5 mm | 1‚25 mm | 40 |
| 632200118 | 15 mm | 1.8 mm | 5 mm | 1‚25 mm | 40 |
| 632200120 | 15 mm | 2 mm | 5 mm | 1‚25 mm | 40 |
| 632200202 | 20 mm | 0.2 mm | 5 mm | 1 mm | 64 |
| 632200203 | 20 mm | 0.3 mm | 5 mm | 1 mm | 64 |
| 632200204 | 20 mm | 0.4 mm | 5 mm | 1 mm | 64 |
| 632200205 | 20 mm | 0.5 mm | 5 mm | 1‚25 mm | 48 |
| 632200206 | 20 mm | 0.6 mm | 5 mm | 1‚25 mm | 48 |
| 632200207 | 20 mm | 0.7 mm | 5 mm | 1‚25 mm | 48 |
| 632200208 | 20 mm | 0.8 mm | 5 mm | 1‚25 mm | 48 |
| 632200209 | 20 mm | 0.9 mm | 5 mm | 1‚5 mm | 40 |
| 632200210 | 20 mm | 1 mm | 5 mm | 1‚5 mm | 40 |
| 632200212 | 20 mm | 1.2 mm | 5 mm | 1‚5 mm | 40 |
| 632200215 | 20 mm | 1.5 mm | 5 mm | 1‚5 mm | 40 |
| 632200216 | 20 mm | 1.6 mm | 5 mm | 1‚5 mm | 40 |
| 632200218 | 20 mm | 1.8 mm | 5 mm | 2 mm | 32 |
| 632200220 | 20 mm | 2 mm | 5 mm | 2 mm | 32 |
| 632200225 | 20 mm | 2.5 mm | 5 mm | 2 mm | 32 |
| 632200230 | 20 mm | 3 mm | 5 mm | 2 mm | 32 |
| 632200302 | 30 mm | 0.2 mm | 8 mm | 1 mm | 100 |
| 632200303 | 30 mm | 0.3 mm | 8 mm | 1‚25 mm | 80 |
| 632200304 | 30 mm | 0.4 mm | 8 mm | 1‚25 mm | 80 |
| 632200305 | 30 mm | 0.5 mm | 8 mm | 1‚25 mm | 80 |
| 632200306 | 30 mm | 0.6 mm | 8 mm | 1‚5 mm | 64 |
| 632200307 | 30 mm | 0.7 mm | 8 mm | 1‚5 mm | 64 |
| 632200308 | 30 mm | 0.8 mm | 8 mm | 1‚5 mm | 64 |
| 632200309 | 30 mm | 0.9 mm | 8 mm | 1‚5 mm | 64 |
| 632200310 | 30 mm | 1 mm | 8 mm | 1‚5 mm | 64 |
| 632200312 | 30 mm | 1.2 mm | 8 mm | 2 mm | 48 |
| 632200315 | 30 mm | 1.5 mm | 8 mm | 2 mm | 48 |
| 632200316 | 30 mm | 1.6 mm | 8 mm | 2 mm | 48 |
| 632200318 | 30 mm | 1.8 mm | 8 mm | 2 mm | 48 |
| 632200320 | 30 mm | 2 mm | 8 mm | 2 mm | 48 |
| 632200325 | 30 mm | 2.5 mm | 8 mm | 2‚25 mm | 40 |
| 632200330 | 30 mm | 3 mm | 8 mm | 2‚25 mm | 40 |
| 632200402 | 40 mm | 0.2 mm | 10 mm | 1 mm | 128 |
| 632200403 | 40 mm | 0.3 mm | 10 mm | 1‚25 mm | 100 |
| 632200404 | 40 mm | 0.4 mm | 10 mm | 1‚25 mm | 100 |
| 632200405 | 40 mm | 0.5 mm | 10 mm | 1‚5 mm | 80 |
| 632200406 | 40 mm | 0.6 mm | 10 mm | 1‚5 mm | 80 |
| 632200407 | 40 mm | 0.7 mm | 10 mm | 1‚5 mm | 80 |
| 632200408 | 40 mm | 0.8 mm | 10 mm | 1‚5 mm | 80 |
| 632200409 | 40 mm | 0.9 mm | 10 mm | 2 mm | 64 |
| 632200410 | 40 mm | 1 mm | 10 mm | 2 mm | 64 |
| 632200412 | 40 mm | 1.2 mm | 10 mm | 2 mm | 64 |
| 632200415 | 40 mm | 1.5 mm | 10 mm | 2 mm | 64 |
| 632200416 | 40 mm | 1.6 mm | 10 mm | 2 mm | 64 |
| 632200418 | 40 mm | 1.8 mm | 10 mm | 2‚5 mm | 48 |
| 632200420 | 40 mm | 2 mm | 10 mm | 2‚5 mm | 48 |
| 632200425 | 40 mm | 2.5 mm | 10 mm | 2‚5 mm | 48 |
| 632200430 | 40 mm | 3 mm | 10 mm | 2‚5 mm | 48 |
| 632200502 | 50 mm | 0.2 mm | 13 mm | 1‚25 mm | 128 |
| 632200503 | 50 mm | 0.3 mm | 13 mm | 1‚25 mm | 128 |
| 632200504 | 50 mm | 0.4 mm | 13 mm | 1‚5 mm | 100 |
| 632200505 | 50 mm | 0.5 mm | 13 mm | 1‚5 mm | 100 |
| 632200506 | 50 mm | 0.6 mm | 13 mm | 1‚5 mm | 100 |
| 632200507 | 50 mm | 0.7 mm | 13 mm | 2 mm | 80 |
| 632200508 | 50 mm | 0.8 mm | 13 mm | 2 mm | 80 |
| 632200509 | 50 mm | 0.9 mm | 13 mm | 2 mm | 80 |
| 632200510 | 50 mm | 1 mm | 13 mm | 2 mm | 80 |
| 632200512 | 50 mm | 1.2 mm | 13 mm | 2 mm | 80 |
| 632200515 | 50 mm | 1.5 mm | 13 mm | 2‚5 mm | 64 |
| 632200516 | 50 mm | 1.6 mm | 13 mm | 2‚5 mm | 64 |
| 632200518 | 50 mm | 1.8 mm | 13 mm | 2‚5 mm | 64 |
| 632200520 | 50 mm | 2 mm | 13 mm | 2‚5 mm | 64 |
| 632200525 | 50 mm | 2.5 mm | 13 mm | 2‚5 mm | 64 |
| 632200530 | 50 mm | 3 mm | 13 mm | 3‚25 mm | 48 |
| 632200603 | 63 mm | 0.3 mm | 16 mm | 1‚5 mm | 128 |
| 632200604 | 63 mm | 0.4 mm | 16 mm | 1‚5 mm | 128 |
| 632200605 | 63 mm | 0.5 mm | 16 mm | 1‚5 mm | 128 |
| 632200606 | 63 mm | 0.6 mm | 16 mm | 2 mm | 100 |
| 632200607 | 63 mm | 0.7 mm | 16 mm | 2 mm | 100 |
| 632200608 | 63 mm | 0.8 mm | 16 mm | 2 mm | 100 |
| 632200609 | 63 mm | 0.9 mm | 16 mm | 2 mm | 100 |
| 632200610 | 63 mm | 1 mm | 16 mm | 2 mm | 100 |
| 632200612 | 63 mm | 1.2 mm | 16 mm | 2‚5 mm | 80 |
| 632200615 | 63 mm | 1.5 mm | 16 mm | 2‚5 mm | 80 |
| 632200616 | 63 mm | 1.6 mm | 16 mm | 2‚5 mm | 80 |
| 632200618 | 63 mm | 1.8 mm | 16 mm | 2‚5 mm | 80 |
| 632200620 | 63 mm | 2 mm | 16 mm | 2‚5 mm | 80 |
| 632200625 | 63 mm | 2.5 mm | 16 mm | 3 mm | 64 |
| 632200630 | 63 mm | 3 mm | 16 mm | 3 mm | 64 |
| 632200805 | 80 mm | 0.5 mm | 22 mm | 2 mm | 128 |
| 632200806 | 80 mm | 0.6 mm | 22 mm | 2 mm | 128 |
| 632200808 | 80 mm | 0.8 mm | 22 mm | 2 mm | 128 |
| 632200810 | 80 mm | 1 mm | 22 mm | 2‚5 mm | 100 |
| 632200812 | 80 mm | 1.2 mm | 22 mm | 2‚5 mm | 100 |
| 632200815 | 80 mm | 1.5 mm | 22 mm | 2‚5 mm | 100 |
| 632200816 | 80 mm | 1.6 mm | 22 mm | 2‚5 mm | 100 |
| 632200818 | 80 mm | 1.8 mm | 22 mm | 3‚25 mm | 80 |
| 632200820 | 80 mm | 2 mm | 22 mm | 3‚25 mm | 80 |
| 632200825 | 80 mm | 2.5 mm | 22 mm | 3‚25 mm | 80 |
| 632200830 | 80 mm | 3 mm | 22 mm | 3‚25 mm | 80 |
| 632201005 | 100 mm | 0.5 mm | 22 mm | 2 mm | 160 |
| 632201006 | 100 mm | 0.6 mm | 22 mm | 2 mm | 160 |
| 632201008 | 100 mm | 0.8 mm | 22 mm | 2‚5 mm | 128 |
| 632201010 | 100 mm | 1 mm | 22 mm | 2‚5 mm | 128 |
| 632201012 | 100 mm | 1.2 mm | 22 mm | 2‚5 mm | 128 |
| 632201015 | 100 mm | 1.5 mm | 22 mm | 3‚25 mm | 100 |
| 632201016 | 100 mm | 1.6 mm | 22 mm | 3‚25 mm | 100 |
| 632201018 | 100 mm | 1.8 mm | 22 mm | 3‚25 mm | 100 |
| 632201020 | 100 mm | 2 mm | 22 mm | 3‚25 mm | 100 |
| 632201025 | 100 mm | 2.5 mm | 22 mm | 3‚25 mm | 100 |
| 632201030 | 100 mm | 3 mm | 22 mm | 4 mm | 80 |
| 632201208 | 125 mm | 0.8 mm | 22 mm | 2‚5 mm | 160 |
| 632201210 | 125 mm | 1 mm | 22 mm | 2‚5 mm | 160 |
| 632201212 | 125 mm | 1.2 mm | 22 mm | 3 mm | 128 |
| 632201215 | 125 mm | 1.5 mm | 22 mm | 3 mm | 128 |
| 632201216 | 125 mm | 1.6 mm | 22 mm | 3 mm | 128 |
| 632201218 | 125 mm | 1.8 mm | 22 mm | 3 mm | 128 |
| 632201220 | 125 mm | 2 mm | 22 mm | 3 mm | 128 |
| 632201610 | 160 mm | 1 mm | 32 mm | 3‚25 mm | 160 |
| 632201612 | 160 mm | 1.2 mm | 32 mm | 3‚25 mm | 160 |
| 632201615 | 160 mm | 1.5 mm | 32 mm | 3‚25 mm | 160 |
| 632201616 | 160 mm | 1.6 mm | 32 mm | 3‚25 mm | 160 |
| 632201620 | 160 mm | 2 mm | 32 mm | 4 mm | 128 |
