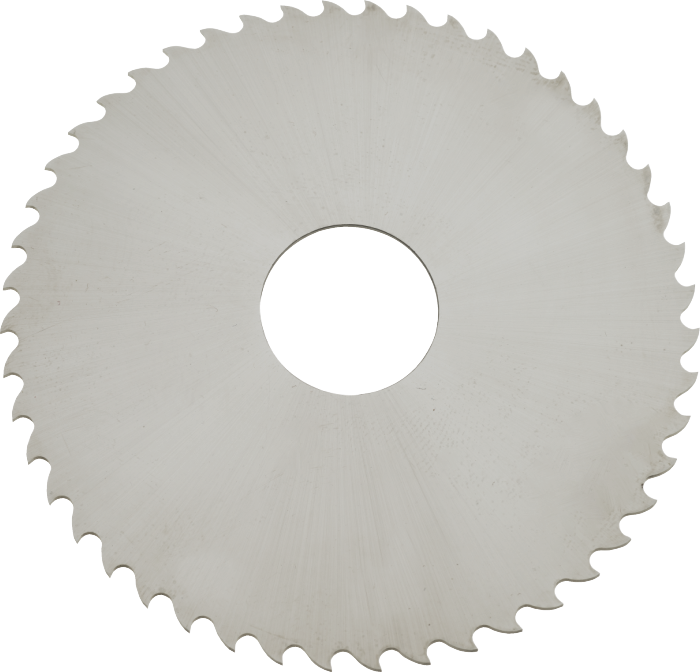

DIN 1838-B, tandvorm B (papegaaibek-tand)

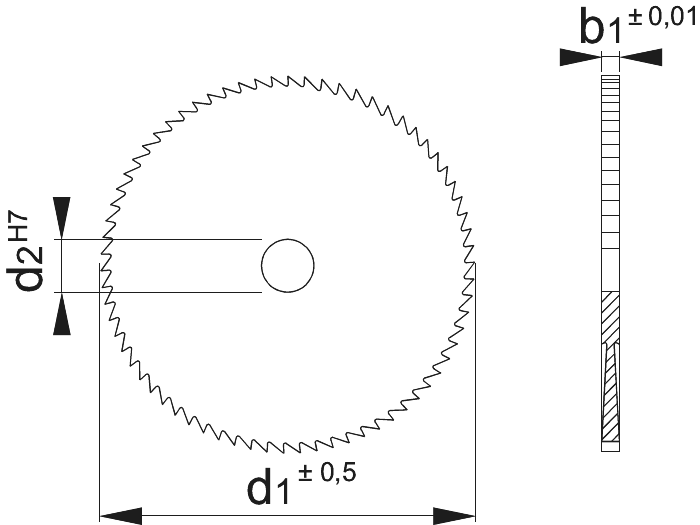

Maten en specificaties
| Artikelnummer | d1 | b1 | d2 | t | z |
|---|---|---|---|---|---|
| 632700103 | 15 mm | 0.3 mm | 5 mm | 2‚25 mm | 20 |
| 632700104 | 15 mm | 0.4 mm | 5 mm | 2‚25 mm | 20 |
| 632700105 | 15 mm | 0.5 mm | 5 mm | 2‚25 mm | 20 |
| 632700106 | 15 mm | 0.6 mm | 5 mm | 2‚25 mm | 20 |
| 632700108 | 15 mm | 0.8 mm | 5 mm | 2‚25 mm | 20 |
| 632700110 | 15 mm | 1 mm | 5 mm | 2‚25 mm | 20 |
| 632700112 | 15 mm | 1.2 mm | 5 mm | 2‚25 mm | 20 |
| 632700115 | 15 mm | 1.5 mm | 5 mm | 2‚25 mm | 20 |
| 632700120 | 15 mm | 2 mm | 5 mm | 2‚25 mm | 20 |
| 632700130 | 15 mm | 3 mm | 5 mm | 2‚25 mm | 20 |
| 632700203 | 20 mm | 0.3 mm | 5 mm | 3‚25 mm | 20 |
| 632700204 | 20 mm | 0.4 mm | 5 mm | 3‚25 mm | 20 |
| 632700205 | 20 mm | 0.5 mm | 5 mm | 3‚25 mm | 20 |
| 632700206 | 20 mm | 0.6 mm | 5 mm | 3‚25 mm | 20 |
| 632700208 | 20 mm | 0.8 mm | 5 mm | 3‚25 mm | 20 |
| 632700210 | 20 mm | 1 mm | 5 mm | 3‚25 mm | 20 |
| 632700212 | 20 mm | 1.2 mm | 5 mm | 3‚25 mm | 20 |
| 632700215 | 20 mm | 1.5 mm | 5 mm | 3‚25 mm | 20 |
| 632700220 | 20 mm | 2 mm | 5 mm | 3‚25 mm | 20 |
| 632700230 | 20 mm | 3 mm | 5 mm | 3‚25 mm | 20 |
| 632700303 | 30 mm | 0.3 mm | 8 mm | 3‚25 mm | 30 |
| 632700304 | 30 mm | 0.4 mm | 8 mm | 3‚25 mm | 30 |
| 632700305 | 30 mm | 0.5 mm | 8 mm | 3‚25 mm | 30 |
| 632700306 | 30 mm | 0.6 mm | 8 mm | 3‚25 mm | 30 |
| 632700308 | 30 mm | 0.8 mm | 8 mm | 4 mm | 24 |
| 632700310 | 30 mm | 1 mm | 8 mm | 4 mm | 24 |
| 632700312 | 30 mm | 1.2 mm | 8 mm | 4 mm | 24 |
| 632700315 | 30 mm | 1.5 mm | 8 mm | 4 mm | 24 |
| 632700320 | 30 mm | 2 mm | 8 mm | 4 mm | 24 |
| 632700325 | 30 mm | 2.5 mm | 8 mm | 4 mm | 24 |
| 632700330 | 30 mm | 3 mm | 8 mm | 4 mm | 24 |
| 632700403 | 40 mm | 0.3 mm | 10 mm | 3‚25 mm | 40 |
| 632700404 | 40 mm | 0.4 mm | 10 mm | 3‚25 mm | 40 |
| 632700405 | 40 mm | 0.5 mm | 10 mm | 3‚25 mm | 40 |
| 632700406 | 40 mm | 0.6 mm | 10 mm | 3‚25 mm | 40 |
| 632700408 | 40 mm | 0.8 mm | 10 mm | 4 mm | 32 |
| 632700410 | 40 mm | 1 mm | 10 mm | 4 mm | 32 |
| 632700412 | 40 mm | 1.2 mm | 10 mm | 4 mm | 32 |
| 632700415 | 40 mm | 1.5 mm | 10 mm | 4 mm | 32 |
| 632700420 | 40 mm | 2 mm | 10 mm | 4 mm | 32 |
| 632700425 | 40 mm | 2.5 mm | 10 mm | 4 mm | 32 |
| 632700430 | 40 mm | 3 mm | 10 mm | 4 mm | 32 |
| 632700504 | 50 mm | 0.4 mm | 13 mm | 3‚25 mm | 48 |
| 632700505 | 50 mm | 0.5 mm | 13 mm | 3‚25 mm | 48 |
| 632700506 | 50 mm | 0.6 mm | 13 mm | 3‚25 mm | 48 |
| 632700508 | 50 mm | 0.8 mm | 13 mm | 4 mm | 40 |
| 632700510 | 50 mm | 1 mm | 13 mm | 4 mm | 40 |
| 632700512 | 50 mm | 1.2 mm | 13 mm | 4 mm | 40 |
| 632700515 | 50 mm | 1.5 mm | 13 mm | 5 mm | 32 |
| 632700516 | 50 mm | 1.6 mm | 13 mm | 5 mm | 32 |
| 632700520 | 50 mm | 2 mm | 13 mm | 5 mm | 32 |
| 632700525 | 50 mm | 2.5 mm | 13 mm | 5 mm | 32 |
| 632700530 | 50 mm | 3 mm | 13 mm | 6‚5 mm | 24 |
| 632700604 | 63 mm | 0.4 mm | 16 mm | 3 mm | 64 |
| 632700605 | 63 mm | 0.5 mm | 16 mm | 3 mm | 64 |
| 632700606 | 63 mm | 0.6 mm | 16 mm | 4 mm | 48 |
| 632700608 | 63 mm | 0.8 mm | 16 mm | 4 mm | 48 |
| 632700610 | 63 mm | 1 mm | 16 mm | 4 mm | 48 |
| 632700612 | 63 mm | 1.2 mm | 16 mm | 5 mm | 40 |
| 632700615 | 63 mm | 1.5 mm | 16 mm | 5 mm | 40 |
| 632700616 | 63 mm | 1.6 mm | 16 mm | 5 mm | 40 |
| 632700620 | 63 mm | 2 mm | 16 mm | 5 mm | 40 |
| 632700625 | 63 mm | 2.5 mm | 16 mm | 6‚25 mm | 32 |
| 632700630 | 63 mm | 3 mm | 16 mm | 6‚25 mm | 32 |
| 632700806 | 80 mm | 0.6 mm | 22 mm | 4 mm | 64 |
| 632700808 | 80 mm | 0.8 mm | 22 mm | 4 mm | 64 |
| 632700810 | 80 mm | 1 mm | 22 mm | 5‚25 mm | 48 |
| 632700812 | 80 mm | 1.2 mm | 22 mm | 5‚25 mm | 48 |
| 632700815 | 80 mm | 1.5 mm | 22 mm | 5‚25 mm | 48 |
| 632700816 | 80 mm | 1.6 mm | 22 mm | 5‚25 mm | 48 |
| 632700820 | 80 mm | 2 mm | 22 mm | 6‚25 mm | 40 |
| 632700825 | 80 mm | 2.5 mm | 22 mm | 6‚25 mm | 40 |
| 632700830 | 80 mm | 3 mm | 22 mm | 6‚25 mm | 40 |
| 632701008 | 100 mm | 0.8 mm | 22 mm | 5 mm | 64 |
| 632701010 | 100 mm | 1 mm | 22 mm | 5 mm | 64 |
| 632701012 | 100 mm | 1.2 mm | 22 mm | 5 mm | 64 |
| 632701015 | 100 mm | 1.5 mm | 22 mm | 6‚5 mm | 48 |
| 632701016 | 100 mm | 1.6 mm | 22 mm | 6‚5 mm | 48 |
| 632701020 | 100 mm | 2 mm | 22 mm | 6‚5 mm | 48 |
| 632701025 | 100 mm | 2.5 mm | 22 mm | 6‚5 mm | 48 |
| 632701030 | 100 mm | 3 mm | 22 mm | 7‚75 mm | 40 |
| 632701208 | 125 mm | 0.8 mm | 22 mm | 5 mm | 80 |
| 632701210 | 125 mm | 1 mm | 22 mm | 5 mm | 80 |
| 632701212 | 125 mm | 1.2 mm | 22 mm | 6‚25 mm | 64 |
| 632701215 | 125 mm | 1.5 mm | 22 mm | 6‚25 mm | 64 |
| 632701216 | 125 mm | 1.6 mm | 22 mm | 6‚25 mm | 64 |
| 632701220 | 125 mm | 2 mm | 22 mm | 6‚25 mm | 64 |
| 632701225 | 125 mm | 2.5 mm | 22 mm | 8‚25 mm | 48 |
| 632701230 | 125 mm | 3 mm | 22 mm | 8‚25 mm | 48 |
| 632701615 | 160 mm | 1.5 mm | 32 mm | 6‚25 mm | 80 |
| 632701616 | 160 mm | 1.6 mm | 32 mm | 6‚25 mm | 80 |
