De Phantom volhardmetaal Spiraalboor DIN 6537-K 3xD, voorzien van een DLC-coating, is de ALU specialist voor professionele metaalbewerkers. Ontworpen voor boordieptes tot 3xD, garandeert deze boor met interne koeling maximale standtijd. De cilindrische schacht volgens DIN 6535-HA en viervlaks-aanslijping zorgen voor precisie en efficiënte spaanverwijdering. De 118° tophoek optimaliseert de prestaties bij het bewerken van aluminium, wat resulteert in superieure afwerkingen en een lange levensduur.
Maten en specificaties

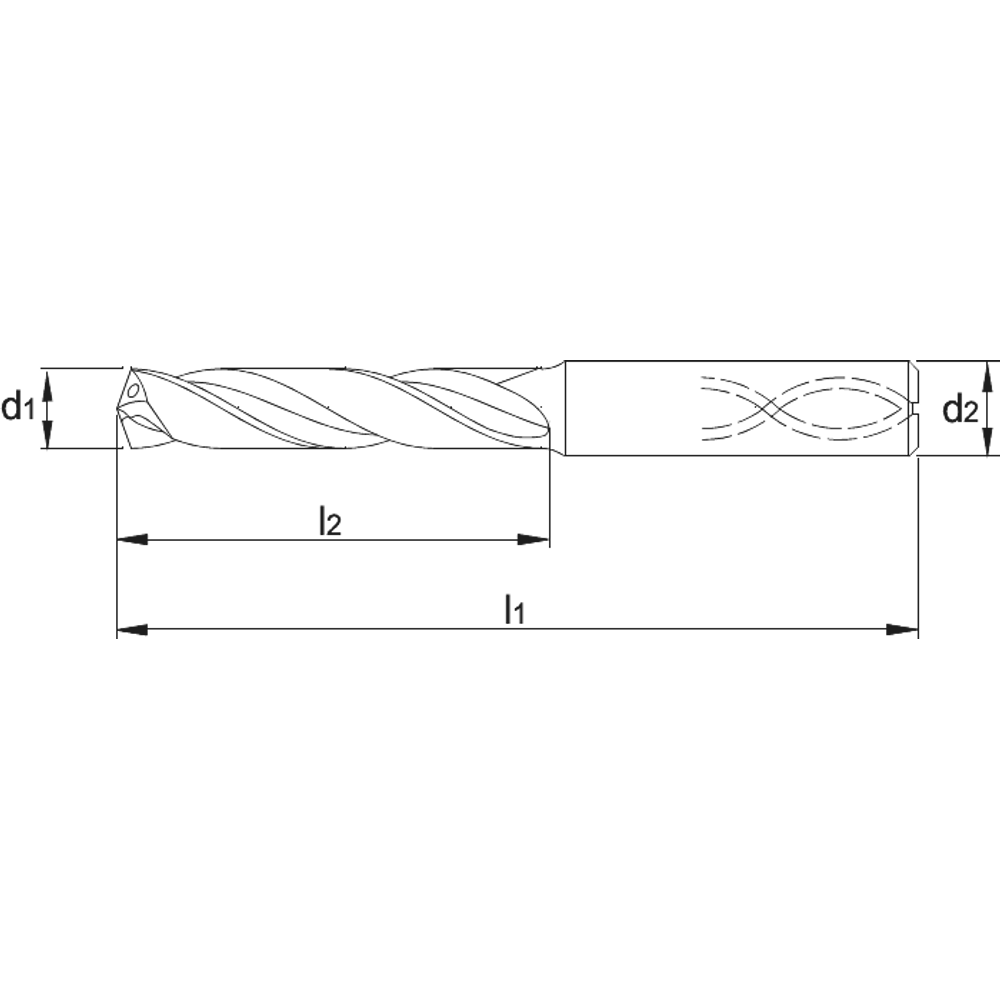

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112590300 | 3 mm | 20 mm | 62 mm | 6 mm |
| 112590320 | 3.2 mm | 20 mm | 62 mm | 6 mm |
| 112590330 | 3.3 mm | 20 mm | 62 mm | 6 mm |
| 112590350 | 3.5 mm | 20 mm | 62 mm | 6 mm |
| 112590400 | 4 mm | 24 mm | 66 mm | 6 mm |
| 112590410 | 4.1 mm | 24 mm | 66 mm | 6 mm |
| 112590420 | 4.2 mm | 24 mm | 66 mm | 6 mm |
| 112590450 | 4.5 mm | 24 mm | 66 mm | 6 mm |
| 112590490 | 4.9 mm | 28 mm | 66 mm | 6 mm |
| 112590500 | 5 mm | 28 mm | 66 mm | 6 mm |
| 112590510 | 5.1 mm | 28 mm | 66 mm | 6 mm |
| 112590520 | 5.2 mm | 28 mm | 66 mm | 6 mm |
| 112590540 | 5.4 mm | 28 mm | 66 mm | 6 mm |
| 112590550 | 5.5 mm | 28 mm | 66 mm | 6 mm |
| 112590580 | 5.8 mm | 28 mm | 66 mm | 6 mm |
| 112590600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 112590610 | 6.1 mm | 34 mm | 79 mm | 8 mm |
| 112590620 | 6.2 mm | 34 mm | 79 mm | 8 mm |
| 112590650 | 6.5 mm | 34 mm | 79 mm | 8 mm |
| 112590660 | 6.6 mm | 34 mm | 79 mm | 8 mm |
| 112590680 | 6.8 mm | 34 mm | 79 mm | 8 mm |
| 112590700 | 7 mm | 34 mm | 79 mm | 8 mm |
| 112590750 | 7.5 mm | 41 mm | 79 mm | 8 mm |
| 112590780 | 7.8 mm | 41 mm | 79 mm | 8 mm |
| 112590800 | 8 mm | 41 mm | 79 mm | 8 mm |
| 112590820 | 8.2 mm | 47 mm | 89 mm | 10 mm |
| 112590850 | 8.5 mm | 47 mm | 89 mm | 10 mm |
| 112590880 | 8.8 mm | 47 mm | 89 mm | 10 mm |
| 112590900 | 9 mm | 47 mm | 89 mm | 10 mm |
| 112590950 | 9.5 mm | 47 mm | 89 mm | 10 mm |
| 112590980 | 9.8 mm | 47 mm | 89 mm | 10 mm |
| 112591000 | 10 mm | 47 mm | 89 mm | 10 mm |
| 112591020 | 10.2 mm | 55 mm | 102 mm | 12 mm |
| 112591050 | 10.5 mm | 55 mm | 102 mm | 12 mm |
| 112591080 | 10.8 mm | 55 mm | 102 mm | 12 mm |
| 112591100 | 11 mm | 55 mm | 102 mm | 12 mm |
| 112591120 | 11.2 mm | 55 mm | 102 mm | 12 mm |
| 112591150 | 11.5 mm | 55 mm | 102 mm | 12 mm |
| 112591180 | 11.8 mm | 55 mm | 102 mm | 12 mm |
| 112591200 | 12 mm | 55 mm | 102 mm | 12 mm |
| 112591250 | 12.5 mm | 60 mm | 107 mm | 14 mm |
| 112591300 | 13 mm | 60 mm | 107 mm | 14 mm |
| 112591350 | 13.5 mm | 60 mm | 107 mm | 14 mm |
| 112591380 | 13.8 mm | 60 mm | 107 mm | 14 mm |
| 112591400 | 14 mm | 60 mm | 107 mm | 14 mm |
| 112591450 | 14.5 mm | 65 mm | 115 mm | 16 mm |
| 112591480 | 14.8 mm | 65 mm | 115 mm | 16 mm |
| 112591500 | 15 mm | 65 mm | 115 mm | 16 mm |
| 112591600 | 16 mm | 65 mm | 115 mm | 16 mm |
| 112591800 | 18 mm | 73 mm | 123 mm | 18 mm |
| 112592000 | 20 mm | 79 mm | 131 mm | 20 mm |
