De Phantom volhardmetaal Spiraalboor DIN 6537-K 3xD, voorzien van een TiAlN-coating, is de RVS-specialist voor professionele metaalbewerkers. Ontworpen voor boordieptes tot 3xD, garandeert deze boor met interne koeling optimale prestaties. De cilindrische schacht volgens DIN 6535-HA en viervlaks-aanslijping zorgen voor precisie en efficiënte spaanverwijdering. De versterkte snijkant en 140° tophoek optimaliseren de bewerking van roestvaststaal, resulterend in superieure afwerkingen en een lange standtijd.

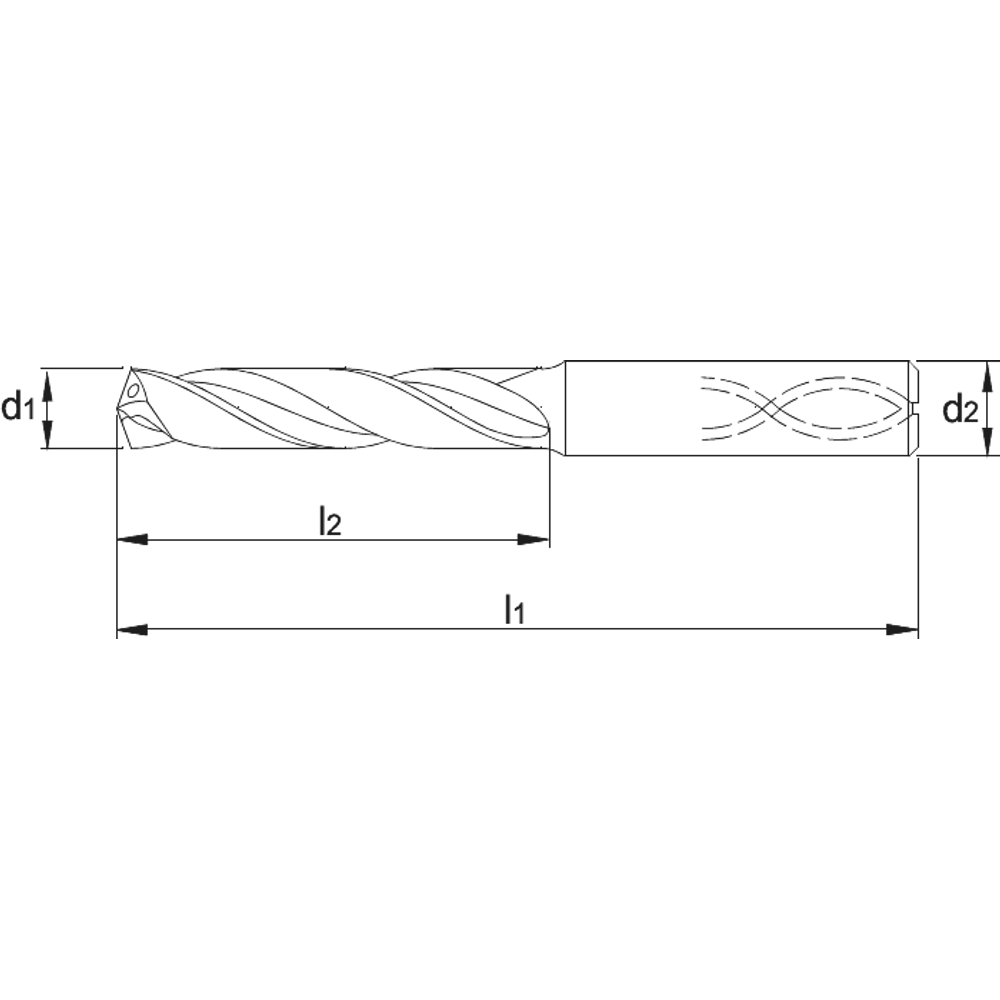

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112620300 | 3 mm | 20 mm | 62 mm | 6 mm |
| 112620310 | 3.1 mm | 20 mm | 62 mm | 6 mm |
| 112620320 | 3.2 mm | 20 mm | 62 mm | 6 mm |
| 112620330 | 3.3 mm | 20 mm | 62 mm | 6 mm |
| 112620340 | 3.4 mm | 20 mm | 62 mm | 6 mm |
| 112620350 | 3.5 mm | 20 mm | 62 mm | 6 mm |
| 112620360 | 3.6 mm | 20 mm | 62 mm | 6 mm |
| 112620370 | 3.7 mm | 20 mm | 62 mm | 6 mm |
| 112620380 | 3.8 mm | 24 mm | 66 mm | 6 mm |
| 112620390 | 3.9 mm | 24 mm | 66 mm | 6 mm |
| 112620400 | 4 mm | 24 mm | 66 mm | 6 mm |
| 112620410 | 4.1 mm | 24 mm | 66 mm | 6 mm |
| 112620420 | 4.2 mm | 24 mm | 66 mm | 6 mm |
| 112620430 | 4.3 mm | 24 mm | 66 mm | 6 mm |
| 112620440 | 4.4 mm | 24 mm | 66 mm | 6 mm |
| 112620450 | 4.5 mm | 24 mm | 66 mm | 6 mm |
| 112620460 | 4.6 mm | 24 mm | 66 mm | 6 mm |
| 112620470 | 4.7 mm | 24 mm | 66 mm | 6 mm |
| 112620480 | 4.8 mm | 28 mm | 66 mm | 6 mm |
| 112620490 | 4.9 mm | 28 mm | 66 mm | 6 mm |
| 112620500 | 5 mm | 28 mm | 66 mm | 6 mm |
| 112620510 | 5.1 mm | 28 mm | 66 mm | 6 mm |
| 112620520 | 5.2 mm | 28 mm | 66 mm | 6 mm |
| 112620530 | 5.3 mm | 28 mm | 66 mm | 6 mm |
| 112620540 | 5.4 mm | 28 mm | 66 mm | 6 mm |
| 112620550 | 5.5 mm | 28 mm | 66 mm | 6 mm |
| 112620560 | 5.6 mm | 28 mm | 66 mm | 6 mm |
| 112620570 | 5.7 mm | 28 mm | 66 mm | 6 mm |
| 112620580 | 5.8 mm | 28 mm | 66 mm | 6 mm |
| 112620590 | 5.9 mm | 28 mm | 66 mm | 6 mm |
| 112620600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 112620610 | 6.1 mm | 34 mm | 79 mm | 8 mm |
| 112620620 | 6.2 mm | 34 mm | 79 mm | 8 mm |
| 112620630 | 6.3 mm | 34 mm | 79 mm | 8 mm |
| 112620650 | 6.5 mm | 34 mm | 79 mm | 8 mm |
| 112620670 | 6.7 mm | 34 mm | 79 mm | 8 mm |
| 112620680 | 6.8 mm | 34 mm | 79 mm | 8 mm |
| 112620690 | 6.9 mm | 34 mm | 79 mm | 8 mm |
| 112620700 | 7 mm | 34 mm | 79 mm | 8 mm |
| 112620750 | 7.5 mm | 41 mm | 79 mm | 8 mm |
| 112620780 | 7.8 mm | 41 mm | 79 mm | 8 mm |
| 112620800 | 8 mm | 41 mm | 79 mm | 8 mm |
| 112620850 | 8.5 mm | 47 mm | 89 mm | 10 mm |
| 112620860 | 8.6 mm | 47 mm | 89 mm | 10 mm |
| 112620880 | 8.8 mm | 47 mm | 89 mm | 10 mm |
| 112620900 | 9 mm | 47 mm | 89 mm | 10 mm |
| 112620920 | 9.2 mm | 47 mm | 89 mm | 10 mm |
| 112620950 | 9.5 mm | 47 mm | 89 mm | 10 mm |
| 112620980 | 9.8 mm | 47 mm | 89 mm | 10 mm |
| 112621000 | 10 mm | 47 mm | 89 mm | 10 mm |
| 112621020 | 10.2 mm | 55 mm | 102 mm | 12 mm |
| 112621050 | 10.5 mm | 55 mm | 102 mm | 12 mm |
| 112621080 | 10.8 mm | 55 mm | 102 mm | 12 mm |
| 112621100 | 11 mm | 55 mm | 102 mm | 12 mm |
| 112621120 | 11.2 mm | 55 mm | 102 mm | 12 mm |
| 112621150 | 11.5 mm | 55 mm | 102 mm | 12 mm |
| 112621180 | 11.8 mm | 55 mm | 102 mm | 12 mm |
| 112621200 | 12 mm | 55 mm | 102 mm | 12 mm |
| 112621250 | 12.5 mm | 60 mm | 107 mm | 14 mm |
| 112621300 | 13 mm | 60 mm | 107 mm | 14 mm |
| 112621350 | 13.5 mm | 60 mm | 107 mm | 14 mm |
| 112621400 | 14 mm | 60 mm | 107 mm | 14 mm |
| 112621450 | 14.5 mm | 65 mm | 115 mm | 16 mm |
| 112621500 | 15 mm | 65 mm | 115 mm | 16 mm |
| 112621600 | 16 mm | 65 mm | 115 mm | 16 mm |
| 112621650 | 16.5 mm | 73 mm | 123 mm | 18 mm |
| 112621700 | 17 mm | 73 mm | 123 mm | 18 mm |
| 112621800 | 18 mm | 73 mm | 123 mm | 18 mm |
| 112621850 | 18.5 mm | 79 mm | 131 mm | 20 mm |
| 112621900 | 19 mm | 79 mm | 131 mm | 20 mm |
| 112621950 | 19.5 mm | 79 mm | 131 mm | 20 mm |
| 112622000 | 20 mm | 79 mm | 131 mm | 20 mm |
