De Phantom volhardmetaal Spiraalboor DIN 6537-L 5xD, voorzien van een TiAlN-coating, is de RVS-specialist voor professionele metaalbewerkers. Ontworpen voor boordieptes tot 5xD, garandeert deze boor met interne koeling optimale prestaties. De cilindrische schacht volgens DIN 6535-HA en viervlaks-aanslijping zorgen voor precisie en efficiënte spaanafvoer. De versterkte snijkant en 140° tophoek optimaliseren de bewerking van roestvaststaal, resulterend in superieure afwerkingen en een lange standtijd.

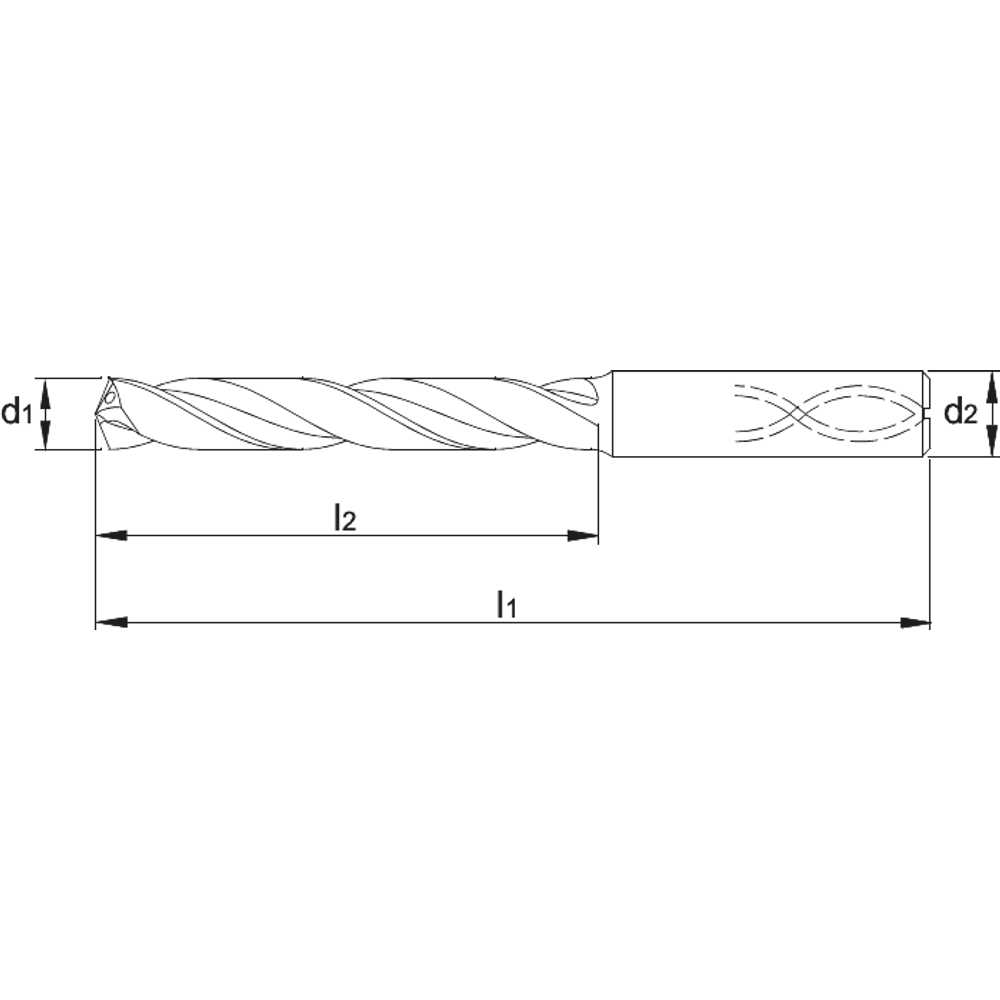

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112820200 | 2 mm | 21 mm | 57 mm | 4 mm |
| 112820210 | 2.1 mm | 21 mm | 57 mm | 4 mm |
| 112820220 | 2.2 mm | 21 mm | 57 mm | 4 mm |
| 112820230 | 2.3 mm | 21 mm | 57 mm | 4 mm |
| 112820240 | 2.4 mm | 21 mm | 57 mm | 4 mm |
| 112820250 | 2.5 mm | 21 mm | 57 mm | 4 mm |
| 112820260 | 2.6 mm | 21 mm | 57 mm | 4 mm |
| 112820270 | 2.7 mm | 21 mm | 57 mm | 4 mm |
| 112820280 | 2.8 mm | 21 mm | 57 mm | 4 mm |
| 112820290 | 2.9 mm | 21 mm | 57 mm | 4 mm |
| 112820300 | 3 mm | 28 mm | 66 mm | 6 mm |
| 112820310 | 3.1 mm | 28 mm | 66 mm | 6 mm |
| 112820320 | 3.2 mm | 28 mm | 66 mm | 6 mm |
| 112820330 | 3.3 mm | 28 mm | 66 mm | 6 mm |
| 112820340 | 3.4 mm | 28 mm | 66 mm | 6 mm |
| 112820350 | 3.5 mm | 28 mm | 66 mm | 6 mm |
| 112820360 | 3.6 mm | 28 mm | 66 mm | 6 mm |
| 112820370 | 3.7 mm | 28 mm | 66 mm | 6 mm |
| 112820380 | 3.8 mm | 36 mm | 74 mm | 6 mm |
| 112820390 | 3.9 mm | 36 mm | 74 mm | 6 mm |
| 112820400 | 4 mm | 36 mm | 74 mm | 6 mm |
| 112820410 | 4.1 mm | 36 mm | 74 mm | 6 mm |
| 112820420 | 4.2 mm | 36 mm | 74 mm | 6 mm |
| 112820430 | 4.3 mm | 36 mm | 74 mm | 6 mm |
| 112820440 | 4.4 mm | 36 mm | 74 mm | 6 mm |
| 112820450 | 4.5 mm | 36 mm | 74 mm | 6 mm |
| 112820460 | 4.6 mm | 36 mm | 74 mm | 6 mm |
| 112820470 | 4.7 mm | 36 mm | 74 mm | 6 mm |
| 112820480 | 4.8 mm | 44 mm | 82 mm | 6 mm |
| 112820490 | 4.9 mm | 44 mm | 82 mm | 6 mm |
| 112820500 | 5 mm | 44 mm | 82 mm | 6 mm |
| 112820510 | 5.1 mm | 44 mm | 82 mm | 6 mm |
| 112820520 | 5.2 mm | 44 mm | 82 mm | 6 mm |
| 112820530 | 5.3 mm | 44 mm | 82 mm | 6 mm |
| 112820540 | 5.4 mm | 44 mm | 82 mm | 6 mm |
| 112820550 | 5.5 mm | 44 mm | 82 mm | 6 mm |
| 112820560 | 5.6 mm | 44 mm | 82 mm | 6 mm |
| 112820570 | 5.7 mm | 44 mm | 82 mm | 6 mm |
| 112820580 | 5.8 mm | 44 mm | 82 mm | 6 mm |
| 112820590 | 5.9 mm | 44 mm | 82 mm | 6 mm |
| 112820600 | 6 mm | 44 mm | 82 mm | 6 mm |
| 112820610 | 6.1 mm | 53 mm | 91 mm | 8 mm |
| 112820620 | 6.2 mm | 53 mm | 91 mm | 8 mm |
| 112820630 | 6.3 mm | 53 mm | 91 mm | 8 mm |
| 112820640 | 6.4 mm | 53 mm | 91 mm | 8 mm |
| 112820650 | 6.5 mm | 53 mm | 91 mm | 8 mm |
| 112820660 | 6.6 mm | 53 mm | 91 mm | 8 mm |
| 112820670 | 6.7 mm | 53 mm | 91 mm | 8 mm |
| 112820680 | 6.8 mm | 53 mm | 91 mm | 8 mm |
| 112820690 | 6.9 mm | 53 mm | 91 mm | 8 mm |
| 112820700 | 7 mm | 53 mm | 91 mm | 8 mm |
| 112820710 | 7.1 mm | 53 mm | 91 mm | 8 mm |
| 112820720 | 7.2 mm | 53 mm | 91 mm | 8 mm |
| 112820730 | 7.3 mm | 53 mm | 91 mm | 8 mm |
| 112820740 | 7.4 mm | 53 mm | 91 mm | 8 mm |
| 112820750 | 7.5 mm | 53 mm | 91 mm | 8 mm |
| 112820760 | 7.6 mm | 53 mm | 91 mm | 8 mm |
| 112820770 | 7.7 mm | 53 mm | 91 mm | 8 mm |
| 112820780 | 7.8 mm | 53 mm | 91 mm | 8 mm |
| 112820790 | 7.9 mm | 53 mm | 91 mm | 8 mm |
| 112820800 | 8 mm | 53 mm | 91 mm | 8 mm |
| 112820810 | 8.1 mm | 61 mm | 103 mm | 10 mm |
| 112820820 | 8.2 mm | 61 mm | 103 mm | 10 mm |
| 112820830 | 8.3 mm | 61 mm | 103 mm | 10 mm |
| 112820840 | 8.4 mm | 61 mm | 103 mm | 10 mm |
| 112820850 | 8.5 mm | 61 mm | 103 mm | 10 mm |
| 112820860 | 8.6 mm | 61 mm | 103 mm | 10 mm |
| 112820870 | 8.7 mm | 61 mm | 103 mm | 10 mm |
| 112820880 | 8.8 mm | 61 mm | 103 mm | 10 mm |
| 112820890 | 8.9 mm | 61 mm | 103 mm | 10 mm |
| 112820900 | 9 mm | 61 mm | 103 mm | 10 mm |
| 112820910 | 9.1 mm | 61 mm | 103 mm | 10 mm |
| 112820920 | 9.2 mm | 61 mm | 103 mm | 10 mm |
| 112820930 | 9.3 mm | 61 mm | 103 mm | 10 mm |
| 112820940 | 9.4 mm | 61 mm | 103 mm | 10 mm |
| 112820950 | 9.5 mm | 61 mm | 103 mm | 10 mm |
| 112820960 | 9.6 mm | 61 mm | 103 mm | 10 mm |
| 112820970 | 9.7 mm | 61 mm | 103 mm | 10 mm |
| 112820980 | 9.8 mm | 61 mm | 103 mm | 10 mm |
| 112820990 | 9.9 mm | 61 mm | 103 mm | 10 mm |
| 112821000 | 10 mm | 61 mm | 103 mm | 10 mm |
| 112821020 | 10.2 mm | 71 mm | 118 mm | 12 mm |
| 112821050 | 10.5 mm | 71 mm | 118 mm | 12 mm |
| 112821080 | 10.8 mm | 71 mm | 118 mm | 12 mm |
| 112821100 | 11 mm | 71 mm | 118 mm | 12 mm |
| 112821120 | 11.2 mm | 71 mm | 118 mm | 12 mm |
| 112821150 | 11.5 mm | 71 mm | 118 mm | 12 mm |
| 112821180 | 11.8 mm | 71 mm | 118 mm | 12 mm |
| 112821200 | 12 mm | 71 mm | 118 mm | 12 mm |
| 112821250 | 12.5 mm | 77 mm | 124 mm | 14 mm |
| 112821300 | 13 mm | 77 mm | 124 mm | 14 mm |
| 112821350 | 13.5 mm | 77 mm | 124 mm | 14 mm |
| 112821400 | 14 mm | 77 mm | 124 mm | 14 mm |
| 112821450 | 14.5 mm | 83 mm | 133 mm | 16 mm |
| 112821500 | 15 mm | 83 mm | 133 mm | 16 mm |
| 112821550 | 15.5 mm | 83 mm | 133 mm | 16 mm |
| 112821600 | 16 mm | 83 mm | 133 mm | 16 mm |
| 112821650 | 16.5 mm | 93 mm | 143 mm | 18 mm |
| 112821700 | 17 mm | 93 mm | 143 mm | 18 mm |
| 112821750 | 17.5 mm | 93 mm | 143 mm | 18 mm |
| 112821800 | 18 mm | 93 mm | 143 mm | 18 mm |
| 112821850 | 18.5 mm | 101 mm | 153 mm | 20 mm |
| 112821900 | 19 mm | 101 mm | 153 mm | 20 mm |
| 112821950 | 19.5 mm | 101 mm | 153 mm | 20 mm |
| 112822000 | 20 mm | 101 mm | 153 mm | 20 mm |
