De Phantom Volhardmetaal (VHM) Spiraalboor volgens DIN 6539 is ontworpen voor professionele metaalbewerkers die hoge precisie en stabiliteit vereisen. Als extra korte uitvoering biedt deze VHM-boor maximale stijfheid, wat resulteert in zeer nauwkeurige gaten. De speciale meervlaks-kruisaanslijping zorgt voor uitstekende zelfcentrerende eigenschappen, waardoor de boor direct positioneert en voorboren overbodig maakt. De tophoek van 118° en het blank geslepen oppervlak dragen bij aan een stabiel boorproces. Deze universeel inzetbare boor met cilindrische schacht is de ideale keuze voor betrouwbare prestaties in diverse materialen.

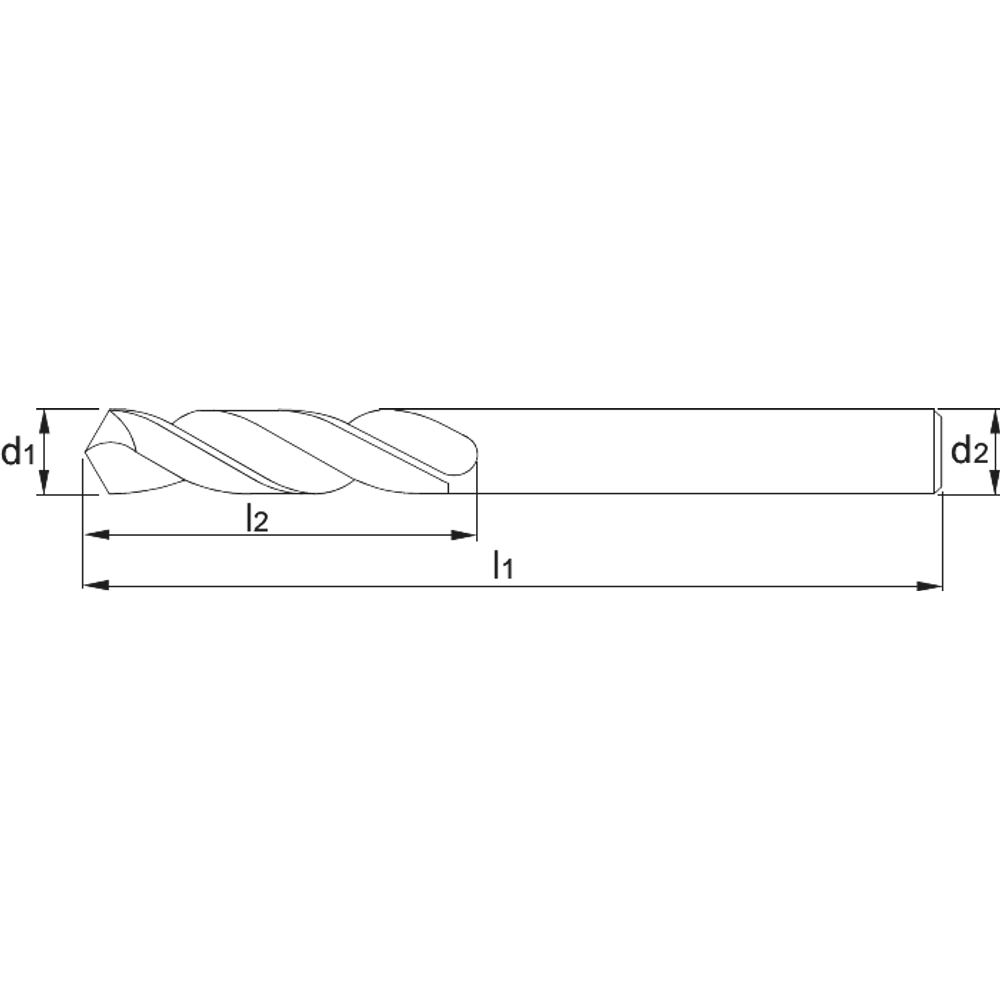

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112000100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 112000110 | 1.1 mm | 7 mm | 28 mm | 1.1 mm |
| 112000120 | 1.2 mm | 8 mm | 30 mm | 1.2 mm |
| 112000130 | 1.3 mm | 8 mm | 30 mm | 1.3 mm |
| 112000140 | 1.4 mm | 9 mm | 32 mm | 1.4 mm |
| 112000150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 112000160 | 1.6 mm | 10 mm | 34 mm | 1.6 mm |
| 112000170 | 1.7 mm | 10 mm | 34 mm | 1.7 mm |
| 112000180 | 1.8 mm | 11 mm | 36 mm | 1.8 mm |
| 112000190 | 1.9 mm | 11 mm | 36 mm | 1.9 mm |
| 112000200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 112000210 | 2.1 mm | 12 mm | 38 mm | 2.1 mm |
| 112000220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 112000230 | 2.3 mm | 13 mm | 40 mm | 2.3 mm |
| 112000240 | 2.4 mm | 14 mm | 43 mm | 2.4 mm |
| 112000250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 112000260 | 2.6 mm | 14 mm | 43 mm | 2.6 mm |
| 112000270 | 2.7 mm | 16 mm | 46 mm | 2.7 mm |
| 112000280 | 2.8 mm | 16 mm | 46 mm | 2.8 mm |
| 112000290 | 2.9 mm | 16 mm | 46 mm | 2.9 mm |
| 112000300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 112000310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 112000320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 112000330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 112000340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 112000350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 112000360 | 3.6 mm | 20 mm | 52 mm | 3.6 mm |
| 112000370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 112000380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 112000390 | 3.9 mm | 22 mm | 55 mm | 3.9 mm |
| 112000400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 112000410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 112000420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 112000430 | 4.3 mm | 24 mm | 58 mm | 4.3 mm |
| 112000440 | 4.4 mm | 24 mm | 58 mm | 4.4 mm |
| 112000450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 112000460 | 4.6 mm | 24 mm | 58 mm | 4.6 mm |
| 112000470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 112000480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 112000490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 112000500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 112000510 | 5.1 mm | 26 mm | 62 mm | 5.1 mm |
| 112000520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 112000530 | 5.3 mm | 26 mm | 62 mm | 5.3 mm |
| 112000540 | 5.4 mm | 28 mm | 66 mm | 5.4 mm |
| 112000550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 112000560 | 5.6 mm | 28 mm | 66 mm | 5.6 mm |
| 112000570 | 5.7 mm | 28 mm | 66 mm | 5.7 mm |
| 112000580 | 5.8 mm | 28 mm | 66 mm | 5.8 mm |
| 112000590 | 5.9 mm | 28 mm | 66 mm | 5.9 mm |
| 112000600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 112000610 | 6.1 mm | 31 mm | 70 mm | 6.1 mm |
| 112000620 | 6.2 mm | 31 mm | 70 mm | 6.2 mm |
| 112000630 | 6.3 mm | 31 mm | 70 mm | 6.3 mm |
| 112000640 | 6.4 mm | 31 mm | 70 mm | 6.4 mm |
| 112000650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 112000660 | 6.6 mm | 31 mm | 70 mm | 6.6 mm |
| 112000670 | 6.7 mm | 31 mm | 70 mm | 6.7 mm |
| 112000680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 112000690 | 6.9 mm | 34 mm | 74 mm | 6.9 mm |
| 112000700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 112000710 | 7.1 mm | 34 mm | 74 mm | 7.1 mm |
| 112000720 | 7.2 mm | 34 mm | 74 mm | 7.2 mm |
| 112000730 | 7.3 mm | 34 mm | 74 mm | 7.3 mm |
| 112000740 | 7.4 mm | 34 mm | 74 mm | 7.4 mm |
| 112000750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 112000760 | 7.6 mm | 37 mm | 79 mm | 7.6 mm |
| 112000770 | 7.7 mm | 37 mm | 79 mm | 7.7 mm |
| 112000780 | 7.8 mm | 37 mm | 79 mm | 7.8 mm |
| 112000790 | 7.9 mm | 37 mm | 79 mm | 7.9 mm |
| 112000800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 112000810 | 8.1 mm | 37 mm | 79 mm | 8.1 mm |
| 112000820 | 8.2 mm | 37 mm | 79 mm | 8.2 mm |
| 112000830 | 8.3 mm | 37 mm | 79 mm | 8.3 mm |
| 112000840 | 8.4 mm | 37 mm | 79 mm | 8.4 mm |
| 112000850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 112000860 | 8.6 mm | 40 mm | 84 mm | 8.6 mm |
| 112000870 | 8.7 mm | 40 mm | 84 mm | 8.7 mm |
| 112000880 | 8.8 mm | 40 mm | 84 mm | 8.8 mm |
| 112000890 | 8.9 mm | 40 mm | 84 mm | 8.9 mm |
| 112000900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 112000910 | 9.1 mm | 40 mm | 84 mm | 9.1 mm |
| 112000920 | 9.2 mm | 40 mm | 84 mm | 9.2 mm |
| 112000930 | 9.3 mm | 40 mm | 84 mm | 9.3 mm |
| 112000940 | 9.4 mm | 40 mm | 84 mm | 9.4 mm |
| 112000950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 112000960 | 9.6 mm | 43 mm | 89 mm | 9.6 mm |
| 112000970 | 9.7 mm | 43 mm | 89 mm | 9.7 mm |
| 112000980 | 9.8 mm | 43 mm | 89 mm | 9.8 mm |
| 112000990 | 9.9 mm | 43 mm | 89 mm | 9.9 mm |
| 112001000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 112001020 | 10.2 mm | 43 mm | 89 mm | 10.2 mm |
| 112001050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 112001100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 112001150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 112001200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 112001300 | 13 mm | 51 mm | 102 mm | 13 mm |
| 112001400 | 14 mm | 54 mm | 107 mm | 14 mm |
| 112001500 | 15 mm | 56 mm | 111 mm | 15 mm |
| 112001600 | 16 mm | 58 mm | 115 mm | 16 mm |
