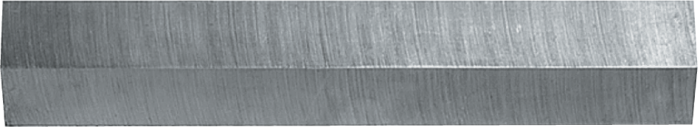

DIN 4964-B, tolerantie op schachtafm. h13, HRC 65±2.LET OP! Dit product is uitlopend.
Maten en specificaties
| Artikelnummer | h1 | b1 | l1 |
|---|---|---|---|
| 711300410 | 4 mm | 4 mm | 100 mm |
| 711300415 | 4 mm | 4 mm | 150 mm |
| 711300420 | 4 mm | 4 mm | 200 mm |
| 711300510 | 5 mm | 5 mm | 100 mm |
| 711300610 | 6 mm | 6 mm | 100 mm |
| 711300615 | 6 mm | 6 mm | 150 mm |
| 711300620 | 6 mm | 6 mm | 200 mm |
| 711300810 | 8 mm | 8 mm | 100 mm |
| 711300815 | 8 mm | 8 mm | 150 mm |
| 711300820 | 8 mm | 8 mm | 200 mm |
| 711301010 | 10 mm | 10 mm | 100 mm |
| 711301015 | 10 mm | 10 mm | 150 mm |
| 711301020 | 10 mm | 10 mm | 200 mm |
| 711301210 | 12 mm | 12 mm | 100 mm |
| 711301215 | 12 mm | 12 mm | 150 mm |
| 711301220 | 12 mm | 12 mm | 200 mm |
| 711301415 | 14 mm | 14 mm | 150 mm |
| 711301420 | 14 mm | 14 mm | 200 mm |
| 711301610 | 16 mm | 16 mm | 100 mm |
| 711301615 | 16 mm | 16 mm | 150 mm |
| 711301620 | 16 mm | 16 mm | 200 mm |
| 711301815 | 18 mm | 18 mm | 150 mm |
| 711301820 | 18 mm | 18 mm | 200 mm |
| 711302010 | 20 mm | 20 mm | 100 mm |
| 711302015 | 20 mm | 20 mm | 150 mm |
| 711302020 | 20 mm | 20 mm | 200 mm |
| 711302515 | 25 mm | 25 mm | 150 mm |
| 711302520 | 25 mm | 25 mm | 200 mm |
| 711303020 | 30 mm | 30 mm | 200 mm |
| 711303220 | 32 mm | 32 mm | 200 mm |
