Professionele metaalbewerkers kiezen de International Tools ECO HSS-E Spiraalboor DIN 338 voor betrouwbaar en kostenefficiënt boren in RVS. Het gebronsde oppervlak en de korte uitvoering bieden stabiliteit. Dankzij de 135° tophoek en kruisaanslijping (vanaf 3,0 mm) is voorcentreren overbodig. Een voordelige standaardboor van industriële kwaliteit.
Maten en specificaties

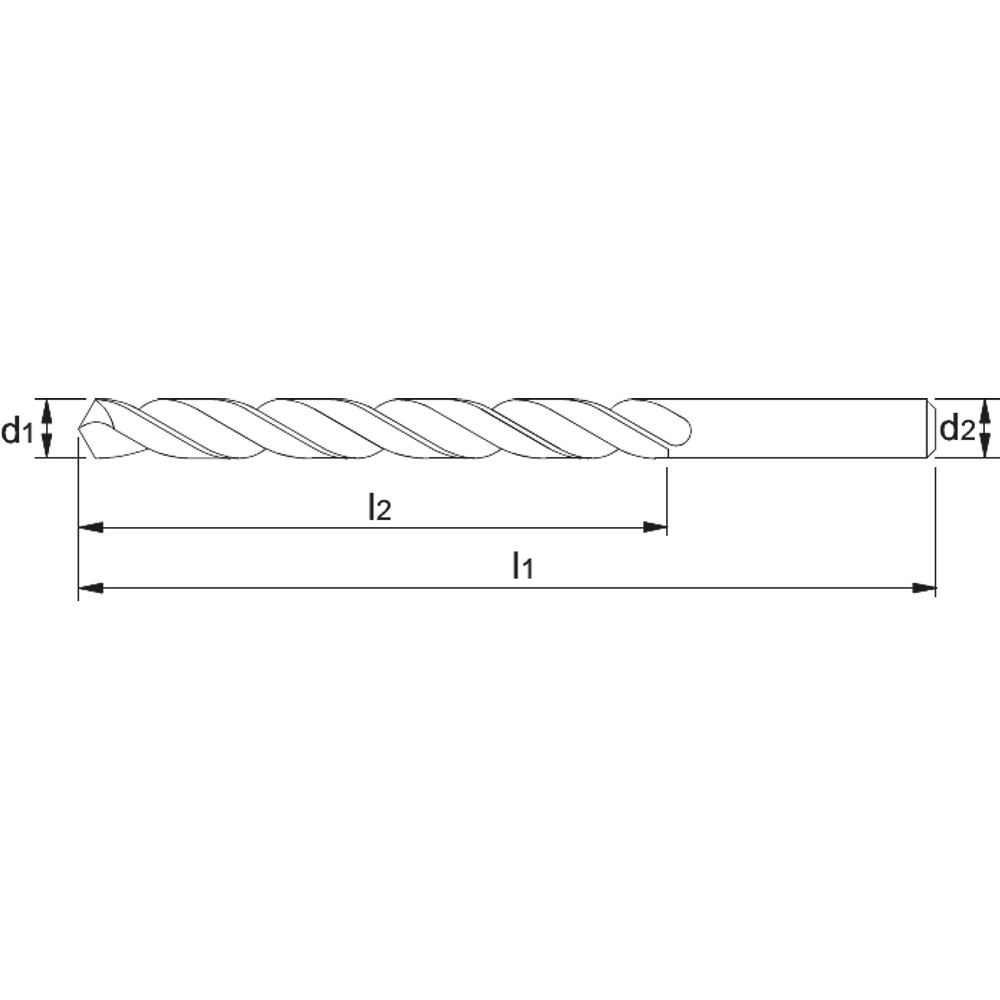

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114880100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114880110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114880120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114880130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114880140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114880150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114880160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114880170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114880180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114880190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114880200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114880210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114880220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114880230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114880240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114880250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114880260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114880270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114880280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114880290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114880300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114880310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114880320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114880330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114880340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114880350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114880360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114880370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114880380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114880390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114880400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114880410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114880420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114880430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114880440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114880450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114880460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114880470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114880480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114880490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114880500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114880510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114880520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114880530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114880540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114880550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114880560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114880570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114880580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114880590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114880600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114880610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114880620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114880630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114880640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114880650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114880660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114880670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114880680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114880690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114880700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114880710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114880720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114880730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114880740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114880750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114880760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114880770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114880780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114880790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114880800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114880810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114880820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114880830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114880840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114880850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114880860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114880870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114880880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114880890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114880900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114880910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114880920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114880930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114880940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114880950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114880960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114880970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114880980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114880990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114881000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114881020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114881050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114881100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114881150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114881200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114881250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114881300 | 13 mm | 101 mm | 151 mm | 13 mm |
