De IT ECO HSS Spiraalboor DIN 338 is een betrouwbare en voordelige boor voor uiteenlopende metaaltoepassingen. Deze korte uitvoering met cilindrische schacht is vanaf diameter 3,0 mm voorzien van een kruisaanslijping. Deze aanslijping geeft de boor uitstekende zelfcentrerende eigenschappen, wat voorcentreren overbodig maakt. Het chemisch gezwarte oppervlak verhoogt de corrosiebestendigheid.Korte geslepen zelfcentrerende spiraalboor voor de laagste prijs.
Maten en specificaties

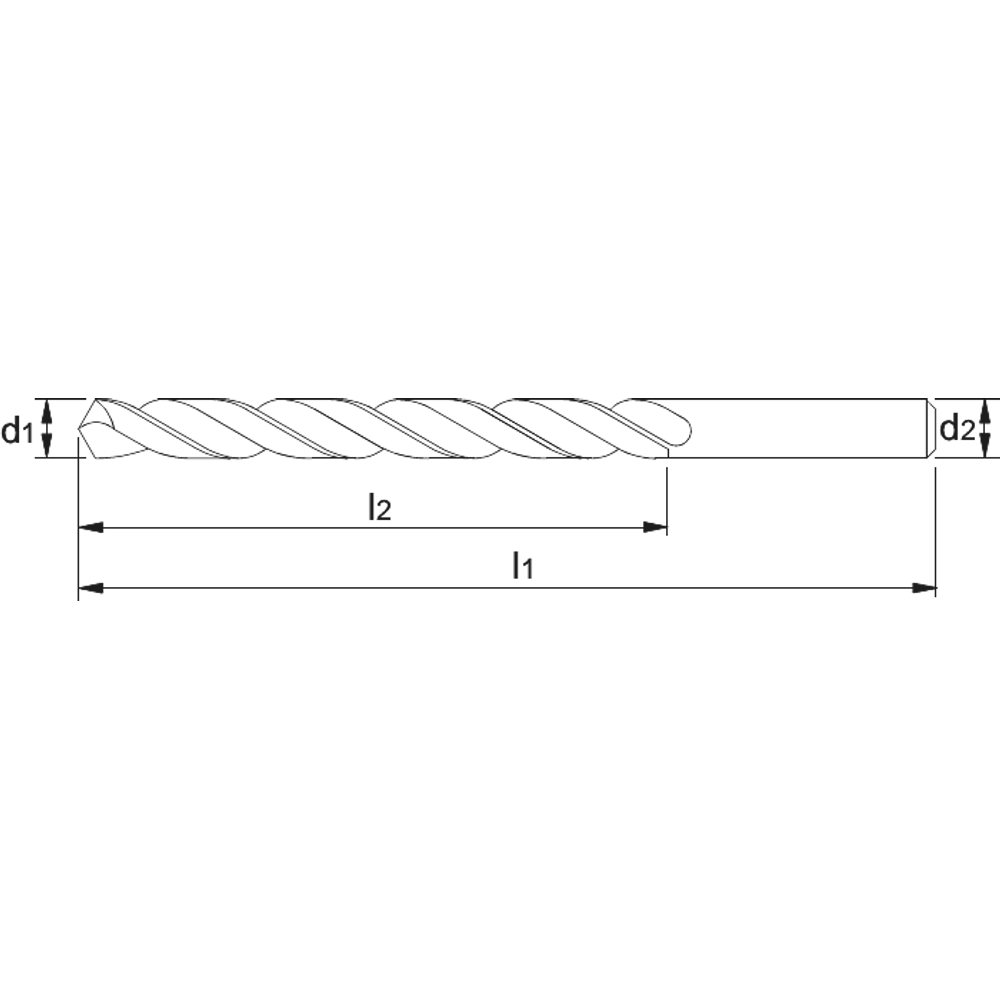

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114260100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114260110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114260120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114260130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114260140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114260150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114260160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114260170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114260180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114260190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114260200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114260210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114260220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114260230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114260240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114260250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114260260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114260270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114260280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114260290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114260300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114260310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114260320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114260330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114260340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114260350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114260360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114260370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114260380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114260390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114260400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114260410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114260420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114260430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114260440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114260450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114260460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114260470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114260480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114260490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114260500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114260510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114260520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114260530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114260540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114260550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114260560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114260570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114260580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114260590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114260600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114260610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114260620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114260630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114260640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114260650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114260660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114260670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114260680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114260690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114260700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114260710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114260720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114260730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114260740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114260750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114260760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114260770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114260780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114260790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114260800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114260810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114260820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114260830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114260840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114260850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114260860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114260870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114260880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114260890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114260900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114260910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114260920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114260930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114260940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114260950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114260960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114260970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114260980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114260990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114261000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114261010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114261020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114261040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114261050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114261060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114261070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114261080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114261090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114261100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114261110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114261120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114261130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114261150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114261160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114261170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114261180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114261190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114261200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114261210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114261220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114261230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114261240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114261250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114261260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114261270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114261280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114261300 | 13 mm | 101 mm | 151 mm | 13 mm |
