Deze International Tools ECO HSS spiraalboor conform DIN 345 is vervaardigd in een gewalste uitvoering en beschikt over een Morse conus (MK) opname. Met een standaard tophoek van 118° is deze boor geschikt voor de meest voorkomende materialen. De MK-schacht garandeert een krachtige en stabiele opspanning, essentieel voor het boren van grote diameters met kolomboormachines. De standaard boor voor zwaarder werk, tegen de laagste prijs.
Maten en specificaties

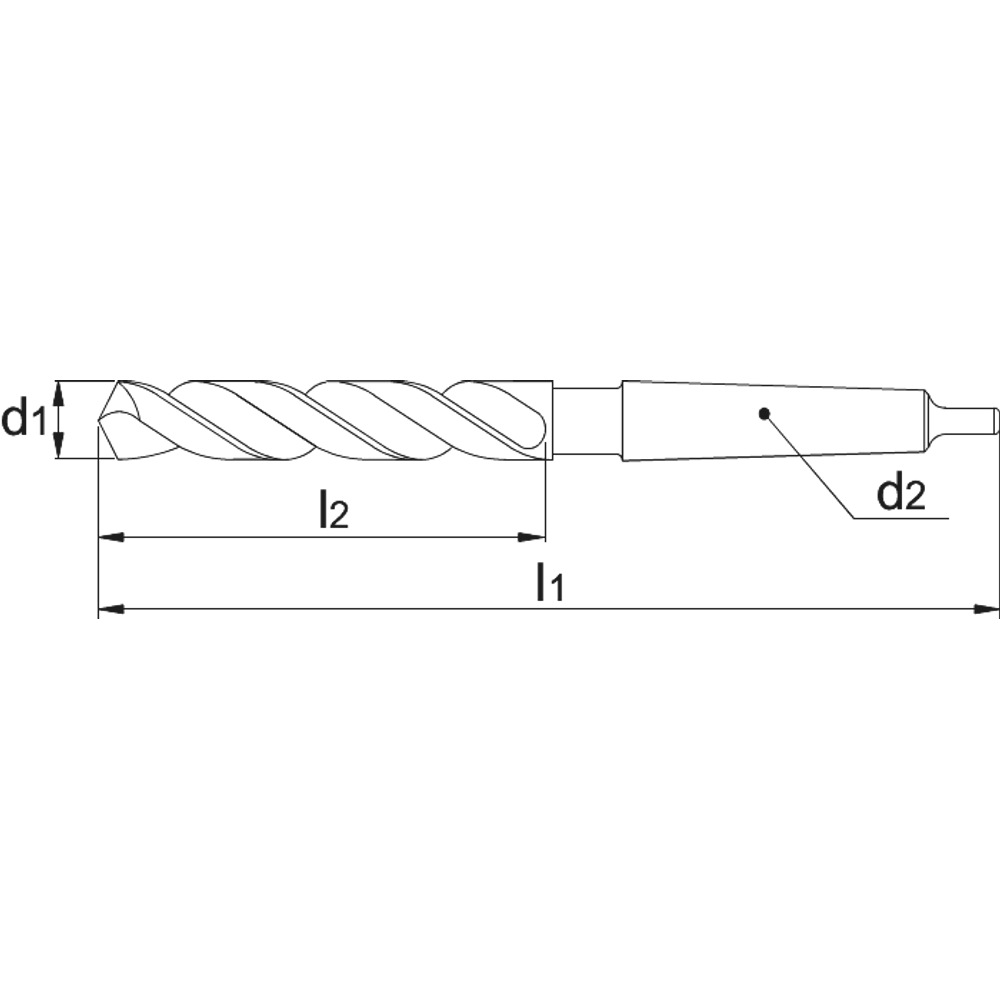

| Artikelnummer | d1 | l2 | l1 |
|---|---|---|---|
| 124000800 | 8 mm | 75 mm | 156 mm |
| 124000850 | 8.5 mm | 75 mm | 156 mm |
| 124000900 | 9 mm | 81 mm | 162 mm |
| 124000950 | 9.5 mm | 81 mm | 162 mm |
| 124000975 | 9.75 mm | 87 mm | 168 mm |
| 124001000 | 10 mm | 87 mm | 168 mm |
| 124001050 | 10.5 mm | 87 mm | 168 mm |
| 124001100 | 11 mm | 94 mm | 175 mm |
| 124001125 | 11.25 mm | 94 mm | 175 mm |
| 124001150 | 11.5 mm | 94 mm | 175 mm |
| 124001200 | 12 mm | 101 mm | 182 mm |
| 124001250 | 12.5 mm | 101 mm | 182 mm |
| 124001300 | 13 mm | 101 mm | 182 mm |
| 124001350 | 13.5 mm | 108 mm | 189 mm |
| 124001400 | 14 mm | 108 mm | 189 mm |
| 124001450 | 14.5 mm | 114 mm | 212 mm |
| 124001500 | 15 mm | 114 mm | 212 mm |
| 124001550 | 15.5 mm | 120 mm | 218 mm |
| 124001600 | 16 mm | 120 mm | 218 mm |
| 124001650 | 16.5 mm | 125 mm | 223 mm |
| 124001675 | 16.75 mm | 125 mm | 223 mm |
| 124001700 | 17 mm | 125 mm | 223 mm |
| 124001750 | 17.5 mm | 130 mm | 228 mm |
| 124001800 | 18 mm | 130 mm | 228 mm |
| 124001825 | 18.25 mm | 135 mm | 233 mm |
| 124001850 | 18.5 mm | 135 mm | 233 mm |
| 124001900 | 19 mm | 135 mm | 233 mm |
| 124001950 | 19.5 mm | 140 mm | 238 mm |
| 124002000 | 20 mm | 140 mm | 238 mm |
| 124002050 | 20.5 mm | 145 mm | 243 mm |
| 124002100 | 21 mm | 145 mm | 243 mm |
| 124002150 | 21.5 mm | 150 mm | 248 mm |
| 124002200 | 22 mm | 150 mm | 248 mm |
| 124002225 | 22.25 mm | 150 mm | 248 mm |
| 124002250 | 22.5 mm | 155 mm | 253 mm |
| 124002300 | 23 mm | 155 mm | 253 mm |
| 124002325 | 23.25 mm | 155 mm | 276 mm |
| 124002350 | 23.5 mm | 155 mm | 276 mm |
| 124002400 | 24 mm | 160 mm | 281 mm |
| 124002450 | 24.5 mm | 160 mm | 281 mm |
| 124002500 | 25 mm | 160 mm | 281 mm |
| 124002550 | 25.5 mm | 165 mm | 286 mm |
| 124002575 | 25.75 mm | 165 mm | 286 mm |
| 124002600 | 26 mm | 165 mm | 286 mm |
| 124002625 | 26.25 mm | 165 mm | 286 mm |
| 124002650 | 26.5 mm | 165 mm | 286 mm |
| 124002700 | 27 mm | 170 mm | 291 mm |
| 124002750 | 27.5 mm | 170 mm | 291 mm |
| 124002800 | 28 mm | 170 mm | 291 mm |
| 124002850 | 28.5 mm | 175 mm | 296 mm |
| 124002875 | 28.75 mm | 175 mm | 296 mm |
| 124002900 | 29 mm | 175 mm | 296 mm |
| 124002950 | 29.5 mm | 175 mm | 296 mm |
| 124003000 | 30 mm | 175 mm | 296 mm |
| 124003050 | 30.5 mm | 180 mm | 301 mm |
| 124003100 | 31 mm | 180 mm | 301 mm |
| 124003125 | 31.25 mm | 180 mm | 301 mm |
| 124003150 | 31.5 mm | 180 mm | 301 mm |
| 124003200 | 32 mm | 185 mm | 334 mm |
| 124003250 | 32.5 mm | 185 mm | 334 mm |
| 124003300 | 33 mm | 185 mm | 334 mm |
| 124003350 | 33.5 mm | 185 mm | 334 mm |
| 124003400 | 34 mm | 190 mm | 339 mm |
| 124003450 | 34.5 mm | 190 mm | 339 mm |
| 124003500 | 35 mm | 190 mm | 339 mm |
| 124003550 | 35.5 mm | 190 mm | 339 mm |
| 124003600 | 36 mm | 195 mm | 344 mm |
| 124003650 | 36.5 mm | 195 mm | 344 mm |
| 124003700 | 37 mm | 195 mm | 344 mm |
| 124003750 | 37.5 mm | 195 mm | 344 mm |
| 124003800 | 38 mm | 200 mm | 349 mm |
| 124003850 | 38.5 mm | 200 mm | 349 mm |
| 124003900 | 39 mm | 200 mm | 349 mm |
| 124003950 | 39.5 mm | 200 mm | 349 mm |
| 124004000 | 40 mm | 200 mm | 349 mm |
| 124004050 | 40.5 mm | 205 mm | 354 mm |
| 124004100 | 41 mm | 205 mm | 354 mm |
| 124004150 | 41.5 mm | 205 mm | 354 mm |
| 124004200 | 42 mm | 205 mm | 354 mm |
| 124004250 | 42.5 mm | 205 mm | 354 mm |
| 124004300 | 43 mm | 210 mm | 359 mm |
| 124004350 | 43.5 mm | 210 mm | 359 mm |
| 124004400 | 44 mm | 210 mm | 359 mm |
| 124004450 | 44.5 mm | 210 mm | 359 mm |
| 124004500 | 45 mm | 210 mm | 359 mm |
| 124004550 | 45.5 mm | 215 mm | 364 mm |
| 124004600 | 46 mm | 215 mm | 364 mm |
| 124004650 | 46.5 mm | 215 mm | 364 mm |
| 124004700 | 47 mm | 215 mm | 364 mm |
| 124004750 | 47.5 mm | 215 mm | 364 mm |
| 124004800 | 48 mm | 220 mm | 369 mm |
| 124004850 | 48.5 mm | 220 mm | 369 mm |
| 124004900 | 49 mm | 220 mm | 369 mm |
| 124004950 | 49.5 mm | 220 mm | 369 mm |
| 124005000 | 50 mm | 220 mm | 369 mm |
| 124005100 | 51 mm | 225 mm | 412 mm |
