Professionele metaalbewerkers kiezen de International Tools ECO PRO HSS-E Spiraalboor DIN 1897 voor betrouwbaar boren in RVS en plaatmateriaal. Het gebronsde oppervlak, de extra korte uitvoering en de cilindrische schacht zorgen voor stabiliteit. Dankzij de 135° tophoek en kruisaanslijping (vanaf 3,0 mm) is voorcentreren overbodig.

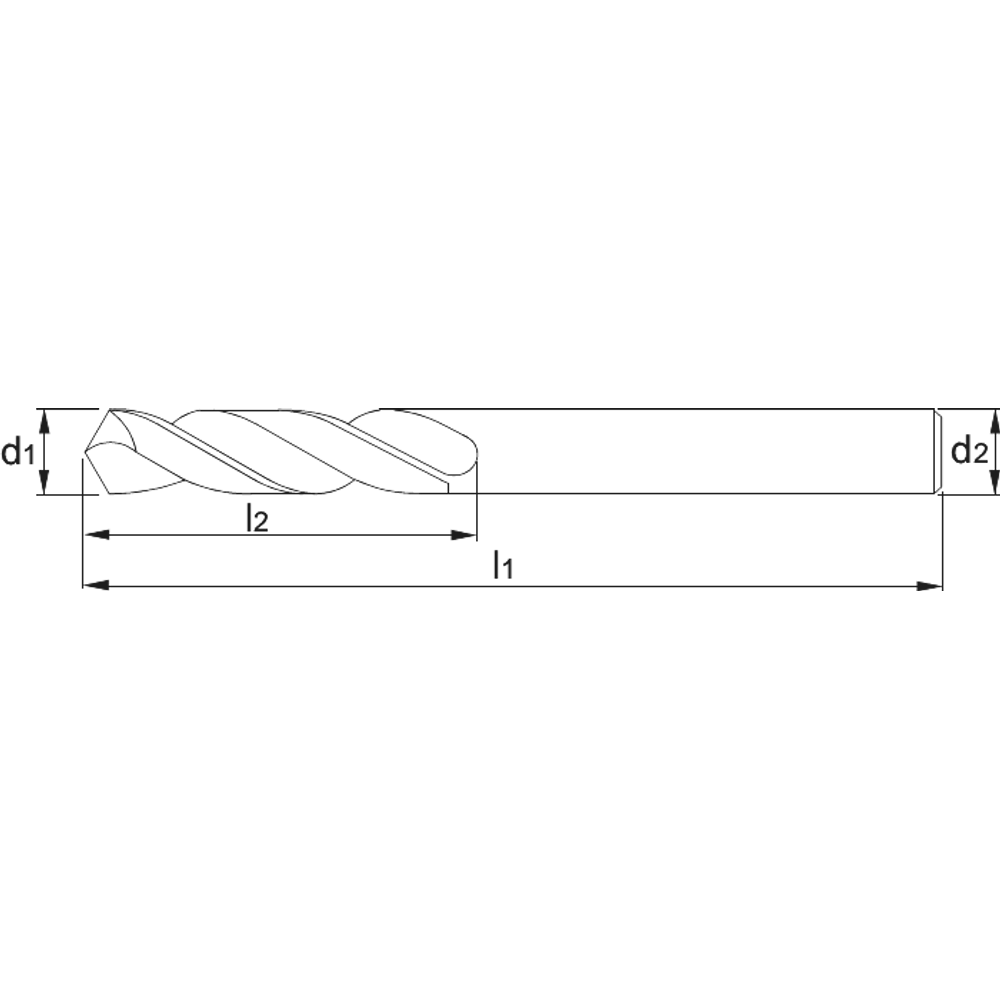

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 111500100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 111500150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 111500200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 111500220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 111500250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 111500300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 111500310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 111500320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 111500330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 111500340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 111500350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 111500370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 111500380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 111500400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 111500410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 111500420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 111500450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 111500470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 111500480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 111500490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 111500500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 111500520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 111500550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 111500600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 111500650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 111500680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 111500700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 111500750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 111500800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 111500850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 111500900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 111500950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 111501000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 111501050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 111501100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 111501150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 111501200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 111501250 | 12.5 mm | 51 mm | 102 mm | 12.5 mm |
| 111501300 | 13 mm | 51 mm | 102 mm | 13 mm |
