Professionele metaalbewerkers kiezen de International Tools ECO PRO HSS-E Spiraalboor DIN 338 voor betrouwbaar boren in RVS en andere veeleisende materialen. Het gebronsde oppervlak, de korte uitvoering en de cilindrische schacht verzekeren stabiliteit. Dankzij de 135° tophoek en kruisaanslijping (vanaf 3,0 mm) is voorcentreren overbodig. Industrie kwaliteit gegarandeerd.
Maten en specificaties

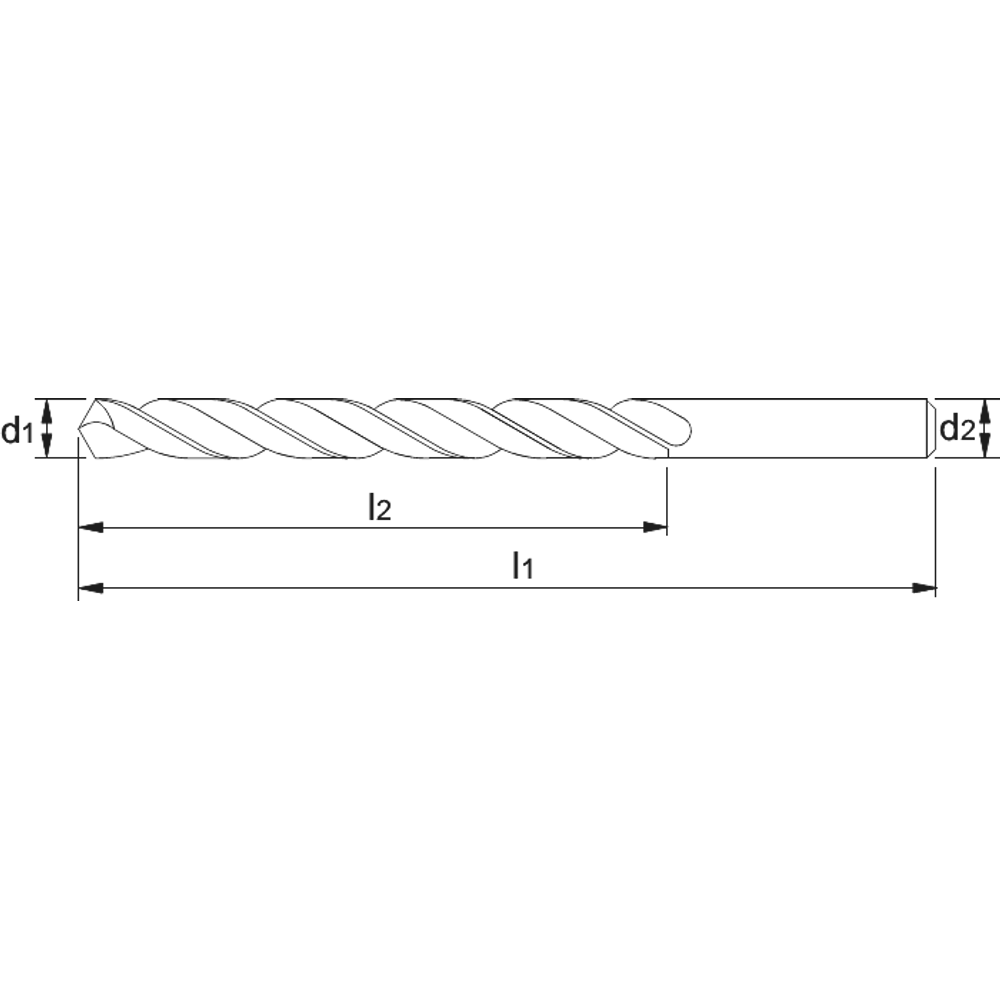

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114900100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114900110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114900120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114900130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114900140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114900150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114900160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114900170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114900180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114900190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114900200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114900210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114900220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114900230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114900240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114900250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114900260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114900270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114900280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114900290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114900300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114900310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114900320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114900330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114900340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114900350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114900360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114900370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114900380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114900390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114900400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114900410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114900420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114900430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114900440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114900450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114900460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114900470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114900480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114900490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114900500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114900510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114900520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114900530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114900540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114900550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114900560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114900570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114900580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114900590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114900600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114900610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114900620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114900630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114900640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114900650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114900660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114900670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114900680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114900690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114900700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114900710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114900720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114900730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114900740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114900750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114900760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114900770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114900780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114900790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114900800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114900810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114900820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114900830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114900840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114900850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114900860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114900870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114900880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114900890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114900900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114900910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114900920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114900930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114900940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114900950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114900960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114900970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114900980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114900990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114901000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114901020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114901050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114901100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114901150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114901200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114901250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114901300 | 13 mm | 101 mm | 151 mm | 13 mm |
