International Tools ECO PRO HSS-E Spiraalboor DIN 338 met drievlaks schacht: De standaard HSS-E boor met gebronsd oppervlak en korte uitvoering. De 135° tophoek in combinatie met de kruisaanslijping maakt voorcentreren overbodig. De drievlaks schacht voorkomt slippen in de boorkop, ideaal voor nauwkeurig boren in RVS.

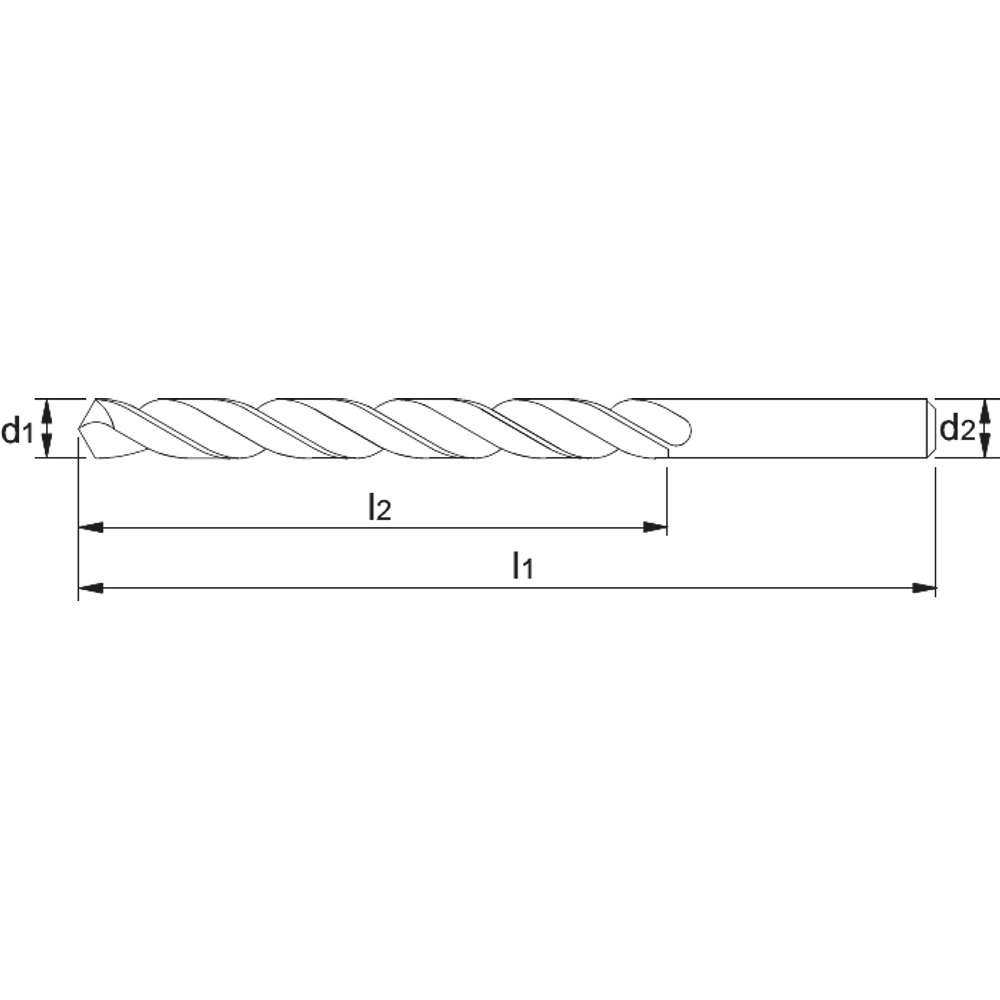

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114380400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114380420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114380450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114380500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114380550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114380600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114380650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114380680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114380700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114380750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114380800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114380850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114380900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114380950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114381000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114381020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114381050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114381100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114381150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114381200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114381250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114381300 | 13 mm | 101 mm | 151 mm | 13 mm |
