De IT ECO PRO HSS Spiraalboor DIN 338 is de verbeterde kwaliteitsboor voor de professionele gebruiker. Deze korte spiraalboor met cilindrische schacht is voorzien van een standaard boorpunt met een tophoek van 118°. De volledig blank geslepen uitvoering zorgt voor betere snij-eigenschappen en een nauwkeurige maatvoering.Korte blank geslepen spiraalboor met standaard boorpunt. Industrie kwaliteit.

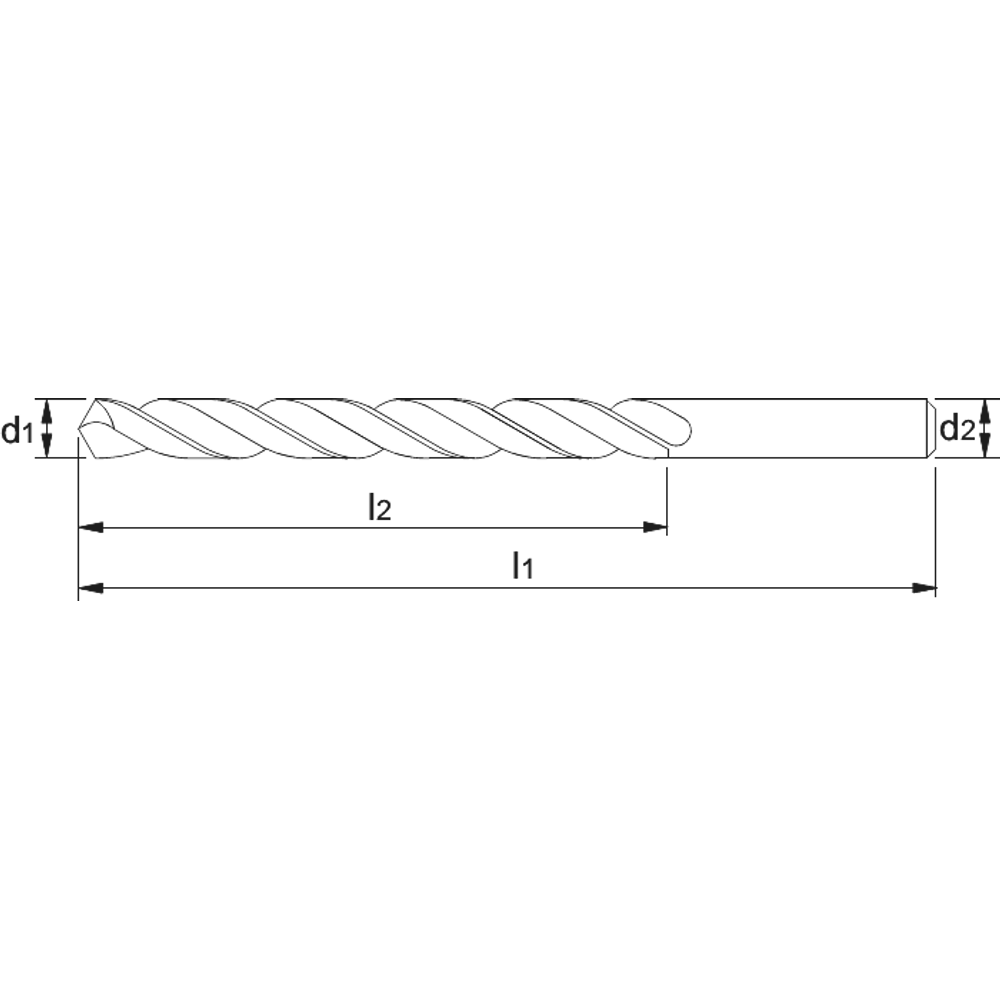

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114200100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114200110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114200120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114200130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114200140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114200150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114200160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114200170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114200180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114200190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114200200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114200210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114200220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114200230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114200240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114200250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114200260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114200270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114200280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114200290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114200300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114200310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114200320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114200330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114200340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114200350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114200360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114200370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114200380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114200390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114200400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114200410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114200420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114200430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114200440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114200450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114200460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114200470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114200480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114200490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114200500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114200510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114200520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114200530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114200540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114200550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114200560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114200570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114200580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114200590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114200600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114200610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114200620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114200630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114200640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114200650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114200660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114200670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114200680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114200690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114200700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114200710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114200720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114200730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114200740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114200750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114200760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114200770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114200780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114200790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114200800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114200810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114200820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114200830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114200840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114200850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114200860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114200870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114200880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114200890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114200900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114200910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114200920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114200930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114200940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114200950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114200960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114200970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114200980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114200990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114201000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114201010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114201020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114201030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114201040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114201050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114201060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114201070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114201080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114201090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114201100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114201110 | 11.1 mm | 94 mm | 142 mm | 11.1 mm |
| 114201120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114201130 | 11.3 mm | 94 mm | 142 mm | 11.3 mm |
| 114201140 | 11.4 mm | 94 mm | 142 mm | 11.4 mm |
| 114201150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114201160 | 11.6 mm | 94 mm | 142 mm | 11.6 mm |
| 114201170 | 11.7 mm | 94 mm | 142 mm | 11.7 mm |
| 114201180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114201190 | 11.9 mm | 101 mm | 151 mm | 11.9 mm |
| 114201200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114201210 | 12.1 mm | 101 mm | 151 mm | 12.1 mm |
| 114201220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114201230 | 12.3 mm | 101 mm | 151 mm | 12.3 mm |
| 114201240 | 12.4 mm | 101 mm | 151 mm | 12.4 mm |
| 114201250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114201260 | 12.6 mm | 101 mm | 151 mm | 12.6 mm |
| 114201270 | 12.7 mm | 101 mm | 151 mm | 12.7 mm |
| 114201280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114201290 | 12.9 mm | 101 mm | 151 mm | 12.9 mm |
| 114201300 | 13 mm | 101 mm | 151 mm | 13 mm |
